20.728.0001

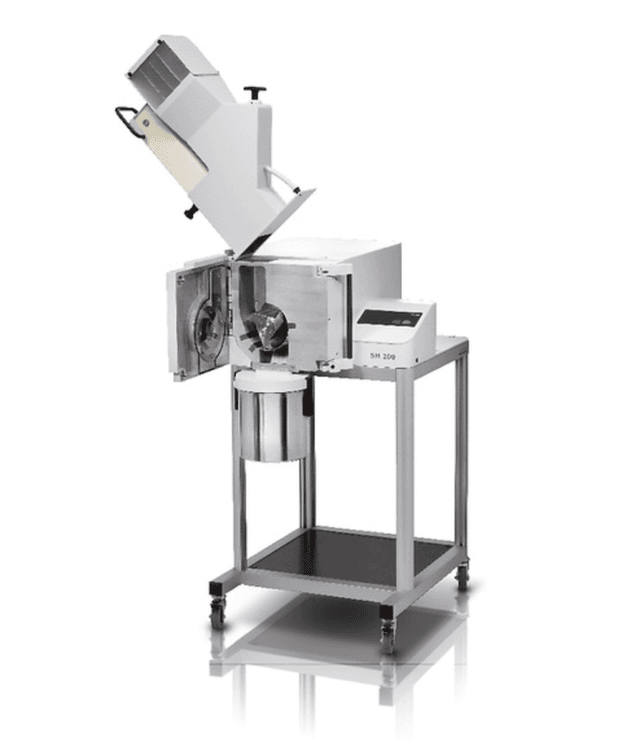

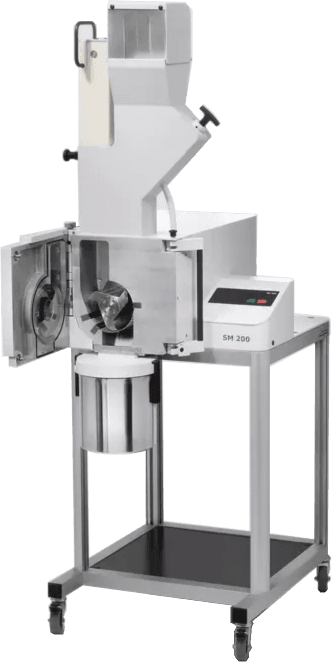

Retsch Cutting Mill SM 200, complete with collecting receptacle, 5 litres and base frame with wheels, 3/N~ 400 V, 50 Hz
Unit Price
On Request
Supplier
RETSCH
Country of origin
Germany
Unit of Measurement
EA
Delivery time
12 - 14 weeks
Validity Until
31.12.2026
Cutting mills are suitable for the grinding of soft, medium-hard, tough, elastic, fibrous, and heterogeneous mixes of products. Within the group of RETSCH cutting mills, the SM 200 is the universal standard model which covers a vast range of applications.
Technical Data
- Feed material, soft, medium-hard, tough, elastic, fibrous
- Size reduction principle, shearing, cutting
- Material feed size [mm] < 60 x 80
- Final fineness [mm] 0.25 - 20
- Speed at 50 Hz (60 Hz) [min-1] 1500
- Rotor peripheral speed [m/s] 9.4 - 11.4
- Rotor diameter [mm] 129.5

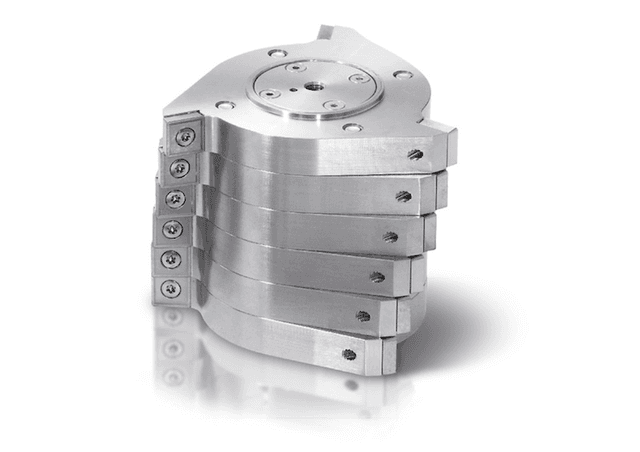

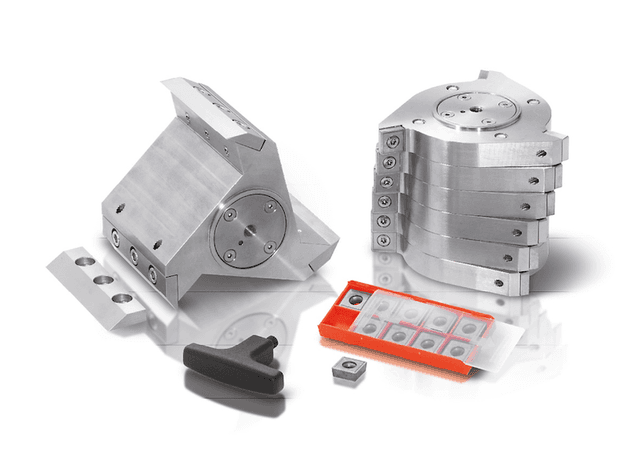

- Type of rotor, parallel section rotor / 6-disc rotor
- Type of hopper, standard, long stock
- Sieve sizes, trapezoid holes [mm] 0.25 | 0.50 | 0.75 | 1.00 | 1.50
- Sieve sizes, round holes [mm] 2.00 | 4.00 | 6.00 | 8.00 | 10.00 | 20.00
- Drive, 3-phase motor
- Drive power [kW] 2.2
- Electrical supply data 3/N~ 400 V, 50 Hz
- Power connection, 3-phase
- Engine brake
- Protection code, IP 54
- W x H x D closed [mm] 576 (1090) x 1675 x 760
- Net weight [kg] ~ 90
- Standards CE
