20.455.0001

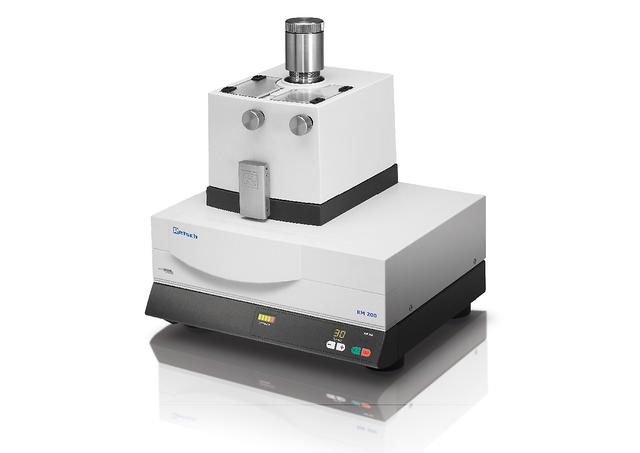

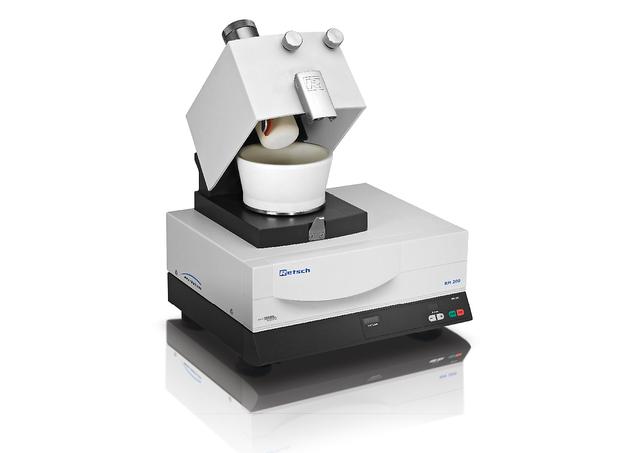

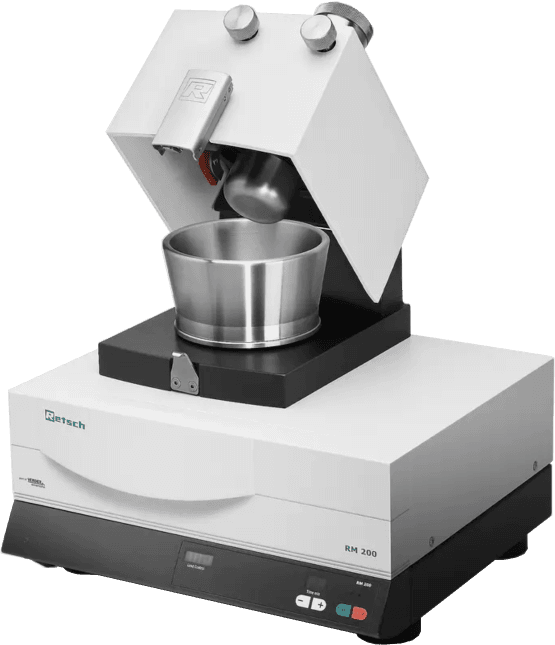

Retsch Mortar Grinder RM 200, complete with scraper of PU, 230 V, 50 Hz
Unit Price
On Request
Supplier
RETSCH
Country of origin
Germany
Unit of Measurement
EA
Delivery time
12 - 14 weeks
Validity Until
31.12.2026

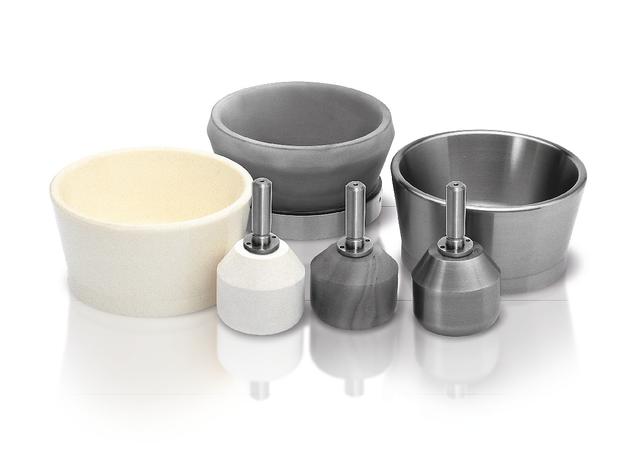

The RETSCH Mortar Grinder RM 200 can mix and homogenize powders, suspension and pastes, even for samples with high viscosity. The RM 200 is suitable for the proper and reproducible sample preparation to analytical fineness. The sample grinder substitutes cumbersome hand mortars by a high performance drive with electronic control. The grinding set can be cooled and heated and is very easy to clean. Grinding sets of various material qualities are available which can be exchanged easily for optimum adaptation to various grinding tasks.
Technical Data
- Feed material, soft, hard, brittle, pasty
- Size reduction principle, pressure, friction
- Material feed size [mm] < 8
- Final fineness [µm] < 10
- Batch size / feed quantity [ml] 10 - 190
- Grinding chamber volume [ml] 700
- Speed at 50 Hz (60 Hz) [min-1] 100
- Setting of pestle pressure, knob + scale + visual/acoustic control
- Setting of scraper pressure, knob + visual control
- Setting of grinding time, digital, 1 - 99 min
- Drive, 1-phase motor with auxiliary capacitor
- Electrical supply data 230 V, 50 Hz
- Power connection, 1-phase
- Protection code, IP 53
- Power consumption [W] 250
- W x H x D closed [mm] 440 x 480 x 370
- Net weight [kg] ~ 24.2
- Standards CE
