20.730.0001

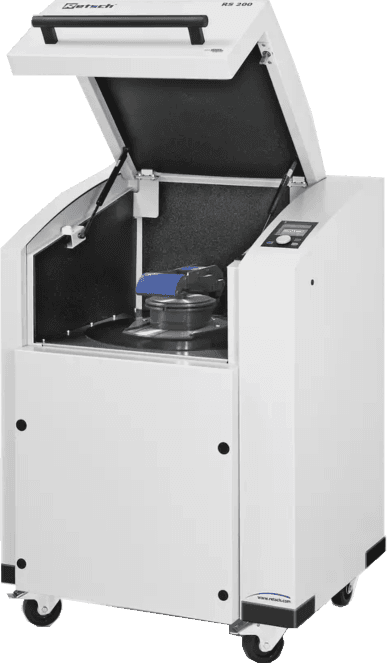

Retsch Vibratory Disc Mill RS 200, with carry handle for grinding sets, on wheels, 220–230 V, 50/60 Hz
Unit Price
On Request
Supplier
RETSCH
Country of origin
Germany
Unit of Measurement
EA
Delivery time
12 - 14 weeks
Validity Until
31.12.2026
No grinder can beat the speed of a Vibratory Disc Mill when it comes to preparing samples for spectral analyses. RETSCH’s Vibratory Disc Mill RS 200 is ideally suited for fast and reproducible pulverization of hard, brittle and fibrous sample materials to analytical fineness. The RS 200 runs steadily and smoothly, even with heavy grinding sets and at maximum speed thanks to its powerful Stabilized-Plane-Drive. It achieves grind sizes between 20 and 100 microns within seconds and with excellent reproducibility.
Technical Data
- Feed material, medium-hard, hard, brittle, fibrous
- Size reduction principle, pressure, friction
- Material feed size [mm] < 15
- Final fineness [µm] < 20
- Batch size / feed quantity [ml] 15 - 250
- Speed at 50 Hz (60 Hz) [min-1] 700 - 1,500
- Grinding jar sizes [ml] 50 | 100 | 250
- Setting of grinding time, digital, 00:01 to 99:59
- Storable SOPs 10
- Drive, 3-phase asynchronous motor with frequency converter
- Drive power [kW] 1.5
- Electrical supply data 220–230 V, 50/60 Hz
- Power connection, 1-phase
- Protection code, IP 20
- W x H x D closed [mm] 836 x 1220 x 780
- Net weight [kg] ~ 225
- Standards CE
