20.749.0001

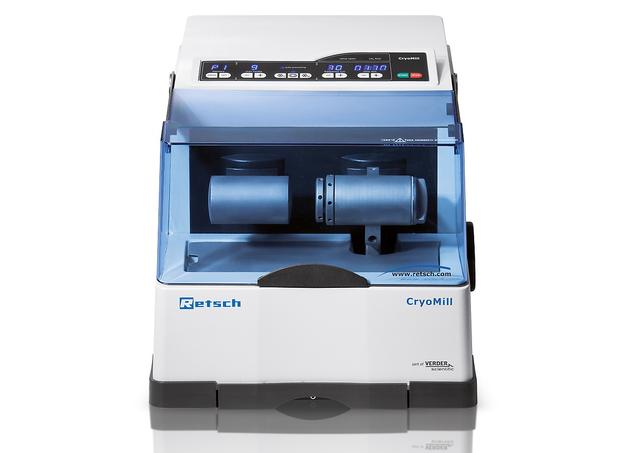

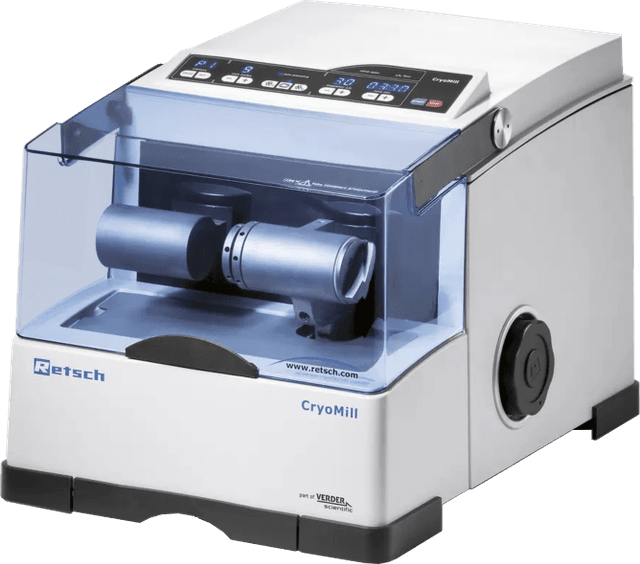

Retsch CryoMill, 100–240 V, 50/60 Hz
Unit Price
On Request
Supplier
RETSCH
Country of origin
Germany
Unit of Measurement
EA
Delivery time
12 - 14 weeks
Validity Until
31.12.2026

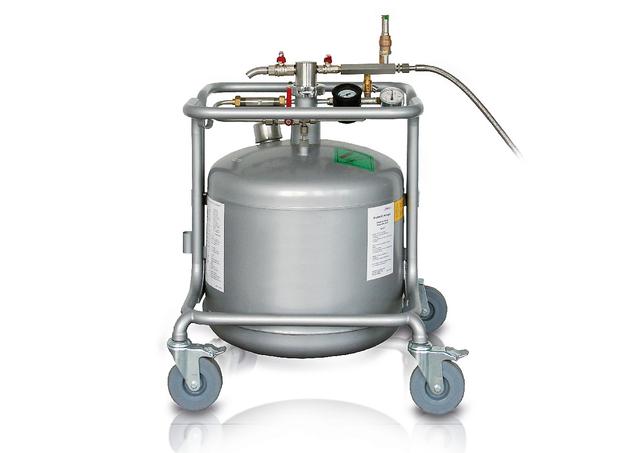

Cryogenic grinding is a process where thermally sensitive and elastic substances are successfully processed by cooling with liquid nitrogen. The RETSCH CryoMill is a laboratory ball mill specifically designed for this application. It features an integrated cooling system which continually cools the grinding jar with liquid nitrogen before and during the grinding process. Thus, the sample is embrittled and volatile components are preserved.
Technical Data
- Feed material, hard, medium-hard, soft, brittle, elastic, fibrous
- Size reduction principle, impact, friction
- Material feed size [mm] < = 8
- Final fineness [µm] ~ 5
- Batch size / feed quantity [ml] max. 20
- Vibrational frequency [Hz] 5 - 30
- Dry grinding
- Wet grinding
- Cryogenic grinding
- Cell disruption with reaction vials, yes, up to 20 x 2.0 ml
- Self-centering clamping device

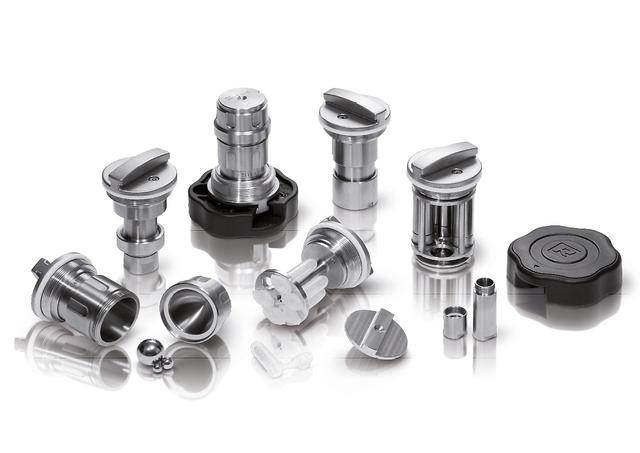

- Type of grinding jar, screw top design
- Grinding jar sizes [ml] 5 | 10 | 25 | 35 | 50
- Autofill [l] 50
- Setting of grinding time, digital, 30 s - 99 min
- Storable SOPs 9
- Typical mean grinding time, 10 min | 4 min (cooling | grinding)
- Electrical supply data 100-240 V, 50/60 Hz
- Power connection, 1-phase
- Protection code, IP 30
- Power consumption [W] 260
- W x H x D closed [mm] 395 x 373 x 577
- Net weight [kg] ~ 45
- Standards CE
