20.540.0001
Retsch Planetary Ball Mill PM 100, with 1 grinding station, 100–240 V, 50/60 Hz
Unit Price
On Request
Supplier
RETSCH
Country of origin
Germany
Unit of Measurement
EA
Delivery time
12 - 14 weeks
Validity Until
31.12.2026

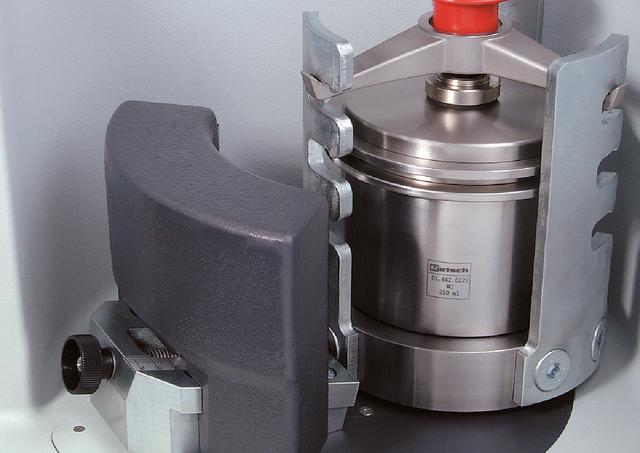

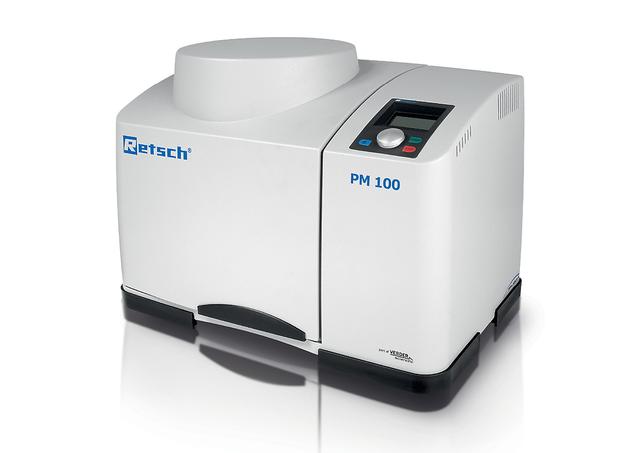

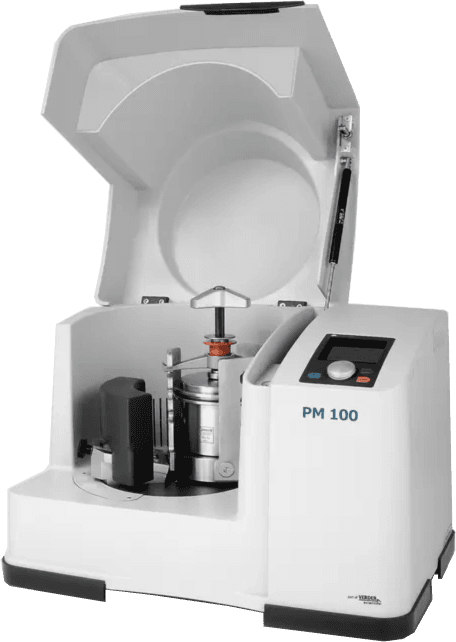

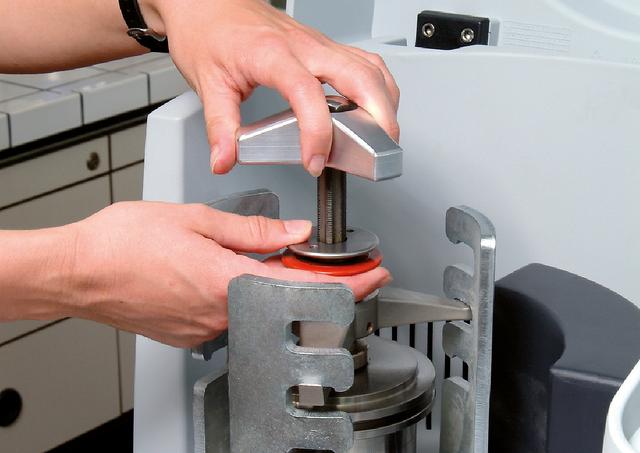

The RETSCH Planetary Ball Mill PM 100 is a powerful benchtop model with a single grinding station and an easy-to-use counterweight which compensates masses up to 8 kg. It allows for grinding up to 220 ml sample material per batch. The extremely high centrifugal forces of Planetary Ball Mills result in very high pulverization energy and therefore short grinding times.
Technical Data
- Feed material, soft, hard, brittle, fibrous - dry or wet
- Size reduction principle, impact, friction
- Material feed size [mm] < 10
- Final fineness [µm] < 1 | < 0.1
- Batch size / feed quantity [ml] max. 1 x 220 | max. 2 x 220
- No. of grinding stations
- Speed ratio 1 : -2
- Sun wheel speed [min-1] 100 - 650
- Effective sun wheel diameter [mm] 141
- G-force [g] 33.3
- Type of grinding jar, EasyFit

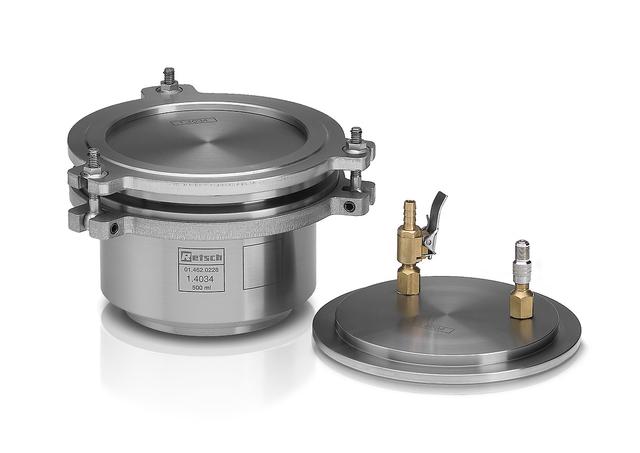

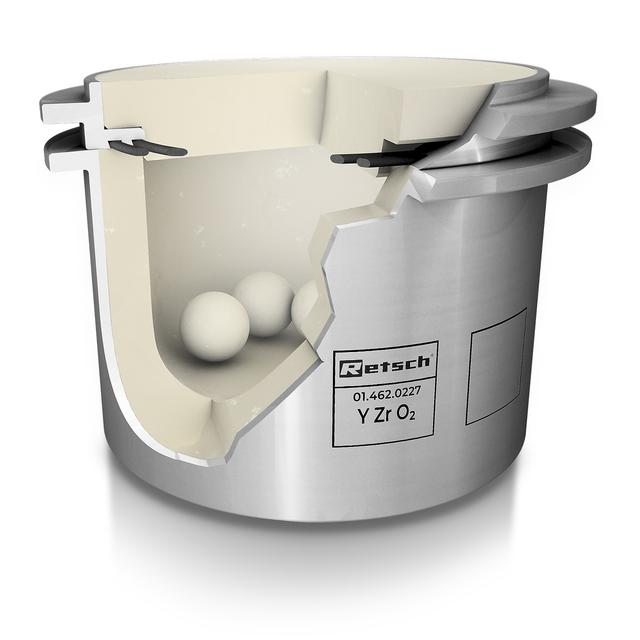

- Grinding jar sizes [ml] 12 | 25 | 50 | 80 | 125 | 250 | 500
- Stackable grinding jars [ml] 12 | 25 | 50 | 80
- Adapter for single-use glas vials [ml] 24 x 15 | 7 x 20
- Setting of grinding time, digital, 00:00:01 to 99:59:59
- Interval operation
- Interval time, 00:00:01 to 99:59:59
- Pause time, 00:00:01 to 99:59:59
- Storable SOPs 10
- Interface, RS 232 | RS 485
- Drive, 3-phase asynchronous motor with frequency converter
- Drive power [W] 750
- Power connection, 1-phase
- Protection code, IP 30
- Power consumption [W] ~ 1250
- W x H x D closed [mm] 640 x 480 x 420
- Net weight [kg] ~ 86
- Standards CE
- Patent Counter weight (DE 20307741), FFCS (DE 20310654), SafetySlider (DE 202008008473)
