20.510.0001
Retsch High Energy Ball Mill Emax, 200–240 V, 50/60 Hz, with 2 grinding stations
Unit Price
On Request
Supplier
RETSCH
Country of origin
Germany
Unit of Measurement
EA
Delivery time
12 - 14 weeks
Validity Until
31.12.2026

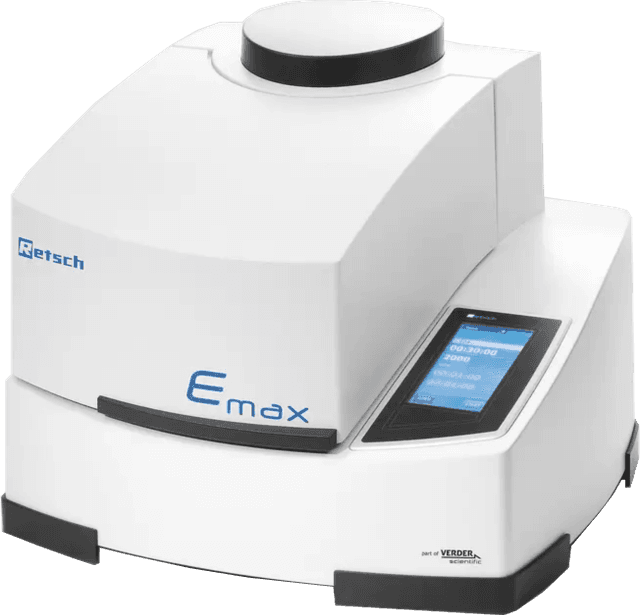

The RETSCH Emax is an entirely new type of ball mill for high energy milling. The unique combination of high friction and impact results in extremely fine particles within the shortest amount of time.
Technical Data
- Feed material, medium-hard, hard, brittle, fibrous - dry or wet
- Size reduction principle, impact, friction
- Material feed size [mm] < 5
- Final fineness [nm] < 80
- Batch size / feed quantity [ml] max. 2 x 45
- No. of grinding stations 2
- Speed at 50 Hz (60 Hz) [min-1] 300 - 2000
- Cooling, controlled integrated water cooling
- Temperature control

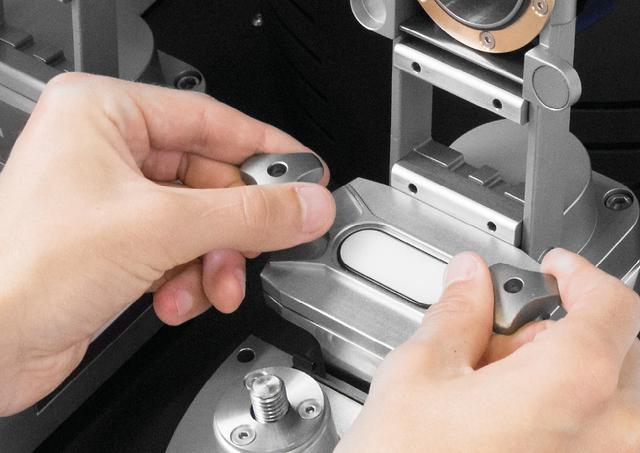

- Type of grinding jar, with integrated safety closure devices

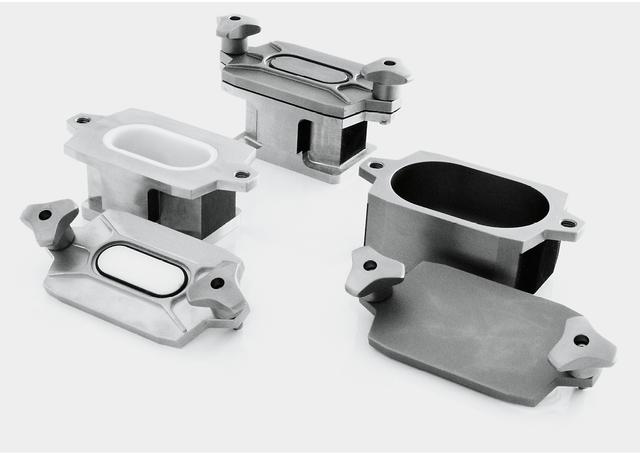

- Grinding jar sizes [ml] 50 | 125
- Setting of grinding time, digital, 00:00:01 to 99:59:59
- Interval operation
- Interval time, 00:00:01 to 99:59:59
- Pause time, 00:00:01 to 99:59:59
- Storable SOPs 10

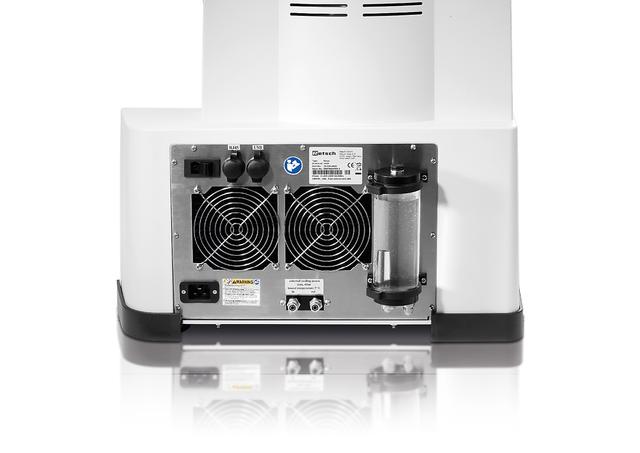

- Interface, USB | LAN ( RJ45)
- Drive, 3-phase asynchronous motor with frequency converter
- Drive power [W] 2600
- Electrical supply data 200-240 V, 50/60 Hz
- Power connection, 1-phase
- Protection code, IP 30
- Power consumption [W] ~ 3100
- W x H x D closed [mm] 625 x 525 x 645
- Net weight [kg] ~ 120
- Standards CE
- Patent Inclined Grinding bowls (US 8,042,754 B2)
