20.770.0001

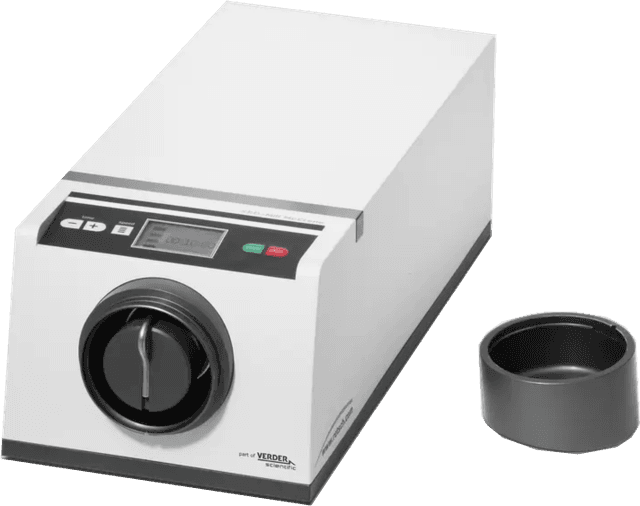

Retsch XRD-Mill McCrone, with 2 grinding jars with screw top lid of PP, 1 pouring lid, 1 loading device, 220-240 V, 50/60 Hz
Unit Price
On Request
Supplier
RETSCH
Country of origin
Germany
Unit of Measurement
EA
Delivery time
12 - 14 weeks
Validity Until
31.12.2026
The RETSCH XRD-Mill McCrone was specially developed for the preparation of samples for subsequent X-ray diffraction (XRD). The mill is used for applications in geology, chemistry, mineralogy and materials science, quality control as well as R&D.
Technical Data
- Feed material, medium-hard, hard, brittle, fibrous
- Material feed size [mm] < 0.5
- Final fineness [µm] < 1
- Dry grinding
- Wet grinding
- Grinding jar sizes [ml] 125
- Setting of grinding time, digital, 00:00:10 to 99:59:50
- Typical mean grinding time, 3 - 30 min
- Drive, DC-Motor
- Drive power [W] 50
- Electrical supply data 100-240 V, 50/60 Hz
- Power connection, 1-phase
- Protection code, IP 30
- Power consumption [VA] 33
- W x H x D closed [mm] 205 x 155 x 520
- Net weight [kg] ~ 8.9
- Standards CE
