14218

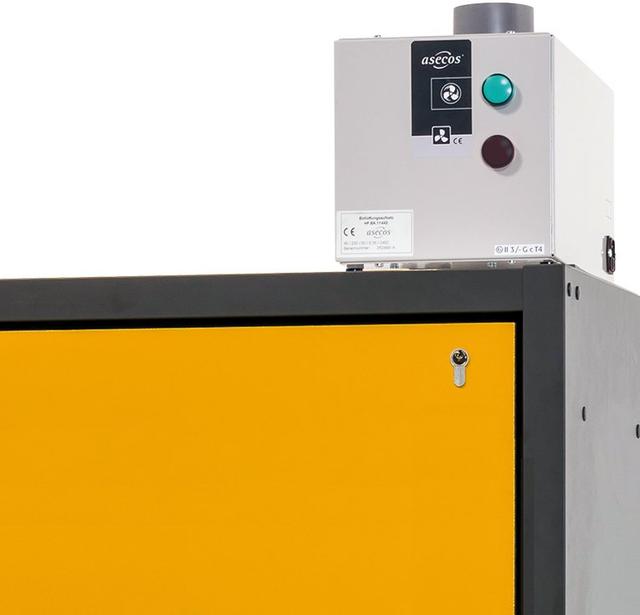

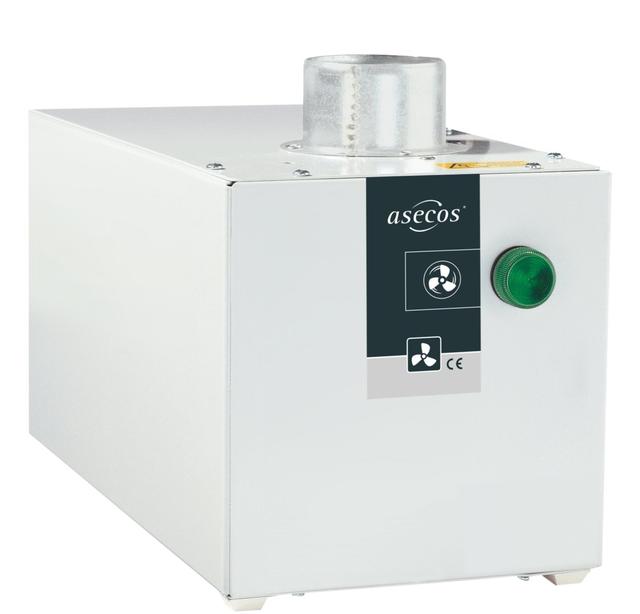

Extraction unit HF.EA.8677, for installation on ASECOS tall cabinets, (mm) 200 x 400 x 200

Unit Price
On Request
Supplier
ASECOS
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2024
Asecos Extraction units/modules for installation on the cabinet or wall mounting – ready to plug-in, easy and quick installation.
Extraction unit HF.EA.8677, for installation on ASECOS tall cabinets, (mm) 200 x 400 x 200
Technical Data
  • External dimensions WDH [mm] 200 x 400 x 200
  • Net weight [kg] 10.1
  • Motor speed [rpm] 2400
  • Electrical input 230V 50Hz
  • Emission sound pressure level [dB] 35
  • Maximum current consumption [A] 0.35
  • Volume flow [m3/h] 140
  • CE Compliant
