005-2000B

ProfilGate® Aqua Spray, WLH (mm) 2130 x 1800 x 55, 1 x V2A-Tray, 6 x st-grate, 12 x b-grate, 7 x spraying lance

Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2024

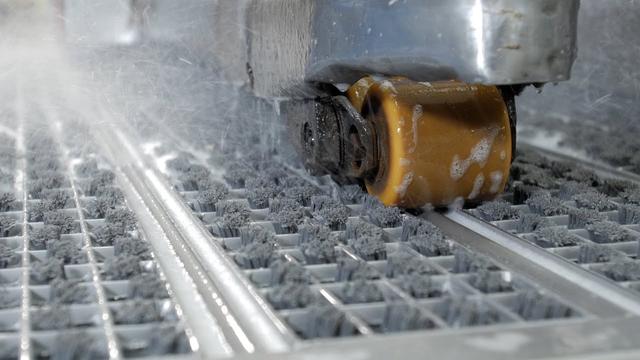

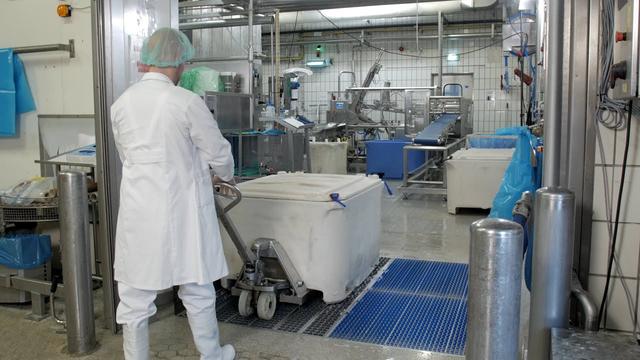

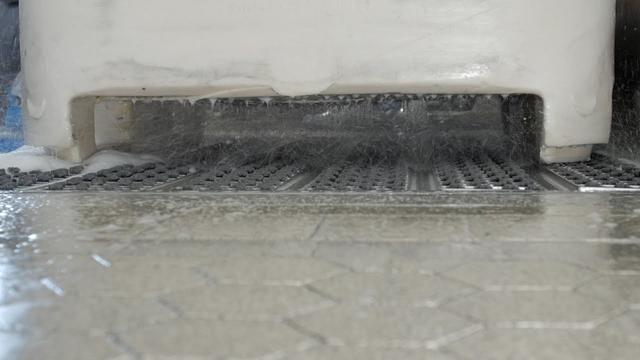

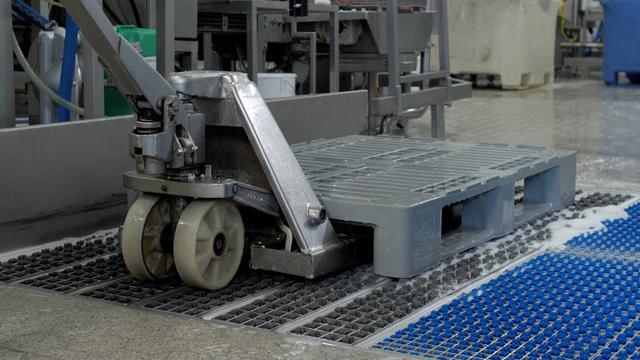

ProfilGate® Aqua Spray additionally disinfects the transport equipment, plastic pallets and boxes from below.
ProfilGate® Aqua Spray, WLH (mm) 2130 x 1800 x 55, 1 x V2A-Tray, 6 x st-grate, 12 x b-grate, 7 x spraying lance
Technical Data
  • Tray height [mm] 55
  • Maximum admissible vehicle weight [t] 10
  • Brush strip per grate st: 14 | b: 4
  • Tray size W x L [mm] 2130 x 1800
  • Spray area W x L [mm] 1000 x 1300
  • Number of grates x weight [kg] st: 6 x 28 | b: 12 x 11
  • Filling capacity [L] 150
  • 7 spraying lances w/ 5 nozzles each
  • Compressed air diaphragm pump 1 - 3 bar
  • Spraying time default [s] 8
  • Adjustable range [s] 1 - 180
