005-0010

STEPGATE II sole cleaning system, wet cleaning, WLH (mm) 820 x 1960 x 1180

Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2024

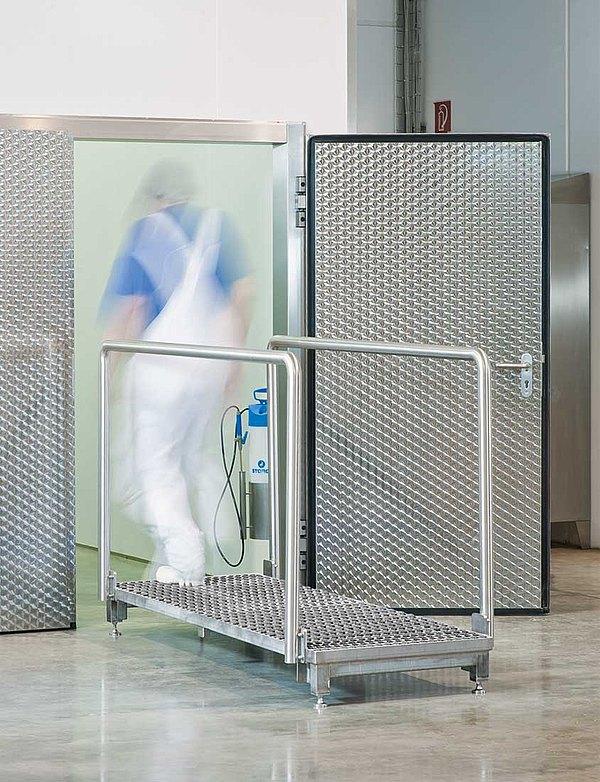

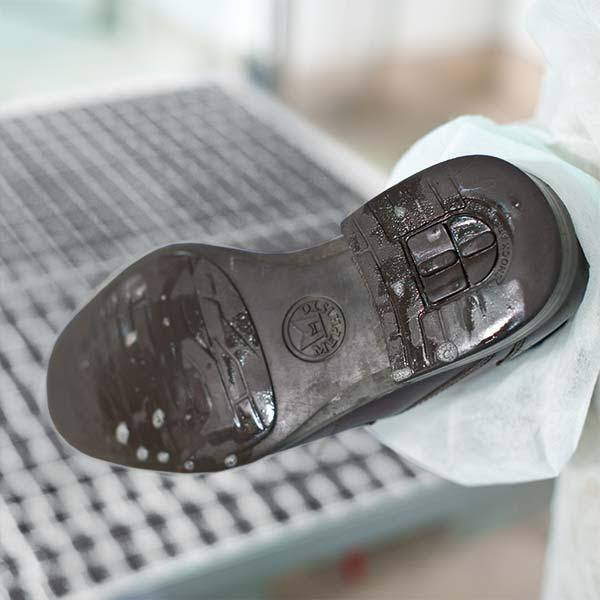

The StepGate stainless steel personnel sluices are ideal for entrances to sensitive production areas. When entering, the soles are cleaned mechanically and by fluid using obliquely arranged patented brush strips. The cleaning process is chemically assisted by the addition of disinfection and / or cleaning detergents. The StepGate II is about 2 meter in length and mechanical wet cleaning.
STEPGATE II sole cleaning system, wet cleaning, WLH (mm) 820 x 1960 x 1180
STEPGATE II sole cleaning system, wet cleaning, WLH (mm) 820 x 1960 x 1180
STEPGATE II sole cleaning system, wet cleaning, WLH (mm) 820 x 1960 x 1180
STEPGATE II sole cleaning system, wet cleaning, WLH (mm) 820 x 1960 x 1180
Technical Data
  • Dimensions (W x L x H) [mm] 820 x 1960 x 1180
  • Weight [kg] 160
  • Brush field (W x L) [mm] 660 x 1920
  • Capacity [L] 2 x 15
  • No connection to power supply required

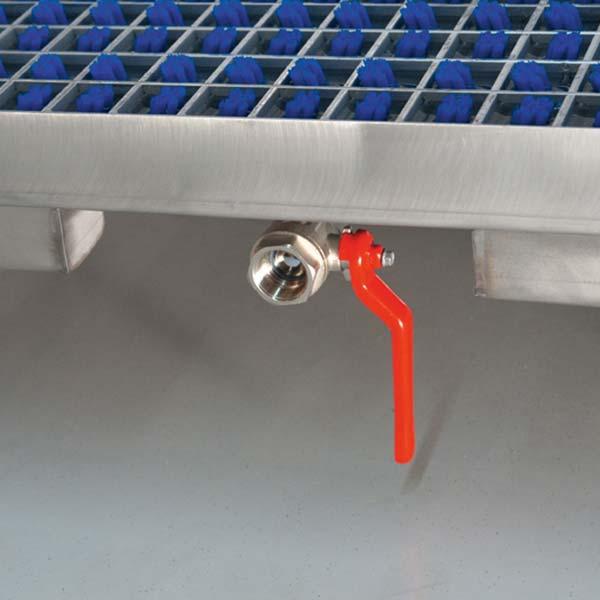

  • The liquid is simply drained through a ball valve.
  • For sole cleaning and disinfection
  • Movable by using manual forklift
  • Can also be operated in dry mode
