SUFsg 5001

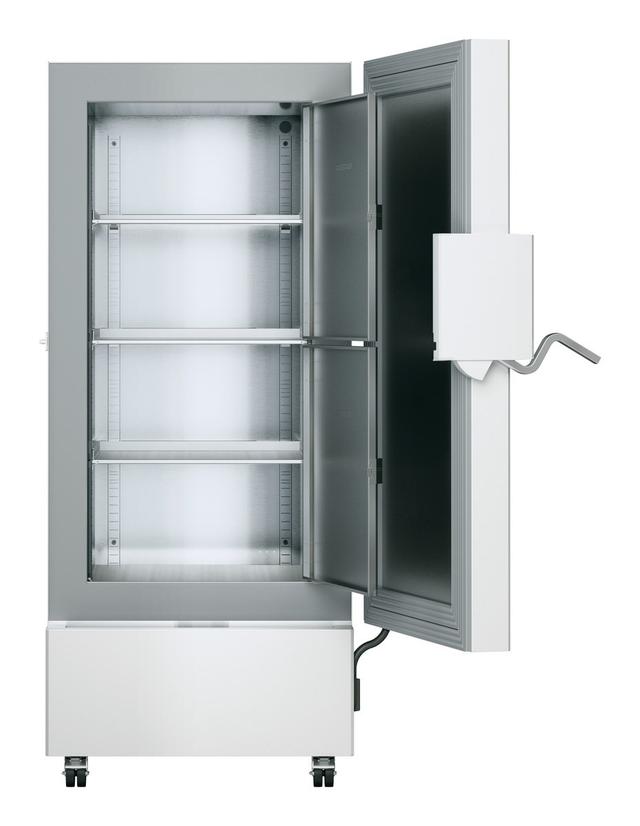

Liebherr SUFsg 5001 ultra-low temperature freezer, −40 °C to −86 °C, 491 L, (mm) 920 x 1082 x 1966, air cooling, steel door
Unit Price
On Request
Supplier
LIEBHERR
Country of origin
Austria
Unit of Measurement
PIECE
Delivery time
10 - 12 weeks
Validity Until
31.12.2024
With Liebherr ultra-low temperature freezers, customers ow can take advantage of their low operating costs, sustainable cooling, large interiors with practical features and many safety functions, and place your trust in Liebherr extensive experience as experts in cooling and freezing.
Technical Data
- Gross | net capcaity [L] 491 | 477
- External dimensions WDH [mm] 920 x 1082 x 1966
- Internal dimensions WDH [mm] 606 x 605 x 1300
- Energy consumption in 365 days [kWh] 2884
- Ambient temperature range [°C] +16 … +32
- Heat output [kJ/h] 1188
- Heat output system, air cooling
- Refrigeration system, 2-stage cascade system
- Refrigerant R 290 / R 170
- Sound power level dB(A) 47
- Voltage / Connection rating 230V~ / 7.0 A
- Cooling system, static
- Temperature range [°C] −40 °C ... −86 °C
- External cabinet finish, steel/ white
- Door material, steel
- Internal liner material, 304-grade stainless steel
- Type of control, LED 7-segment display with buttons
- Power failure alarm immediately upon power failure for 72 hrs
- Volt-free alarm contact
- Connectivity type, SmartCoolingHub
- Connectivity solution, retrofittable
- Interface LAN (Ethernet)
- Data logger, integrated USB interface
- Pull-down time +22 °C to −80 °C [min] 360
- Warm-up time −80 °C to −60 °C / to 0 °C [min] 230 | 2160
- Number / maximum number of storage shelves [pcs] 04 | 13
- Adjustable shelves [pcs] 03
- Shelf material, stainless steel
- Shelf loading [KG] 50
- Number of racks per shelf [pcs] 04
- Max. number of cryoboxes, 50 mm / 75 mm [pcs] 352 / 224
- Castors with brake at the front, fixed castors at the rear
- Access ports 2xØ28mm
- Type of lock, mechanical
- Door hinges, right hand hinged, not reversible
- Gross | net weight [KG] 308 | 254
