CALPAS-R

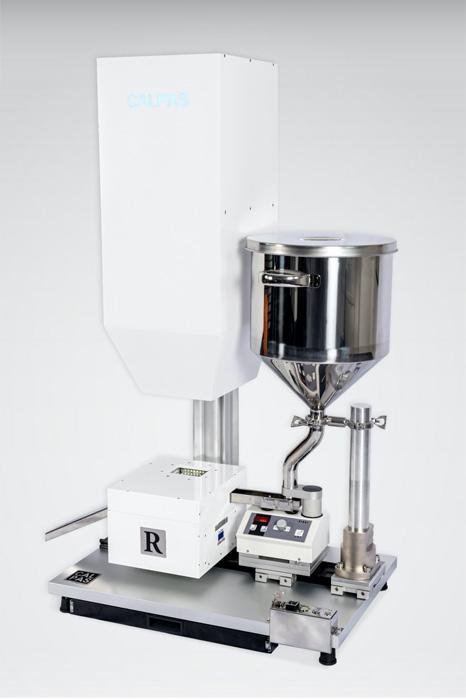

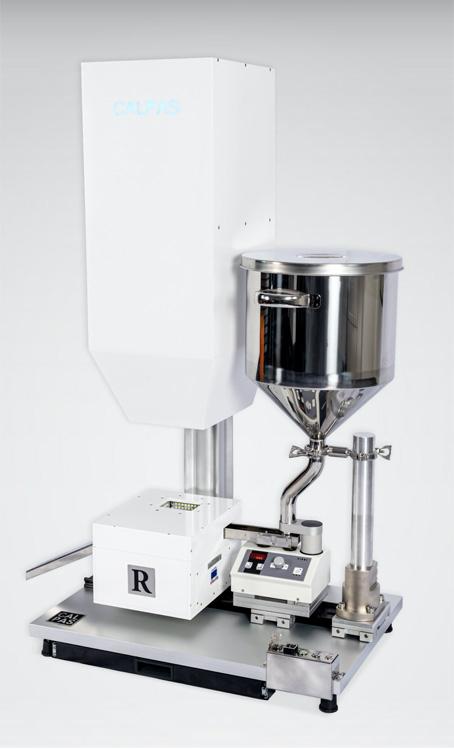

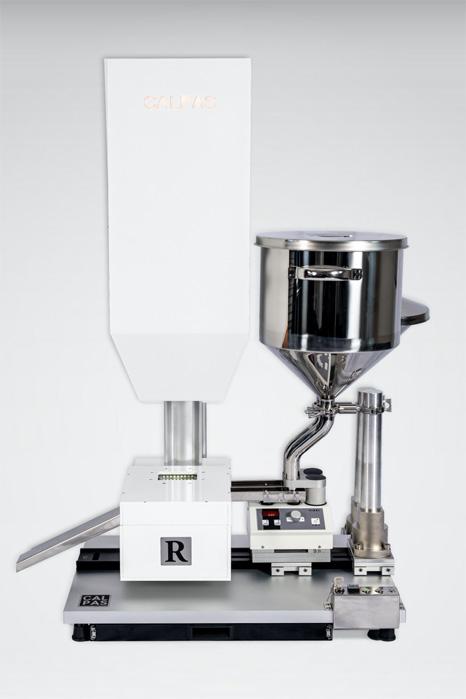

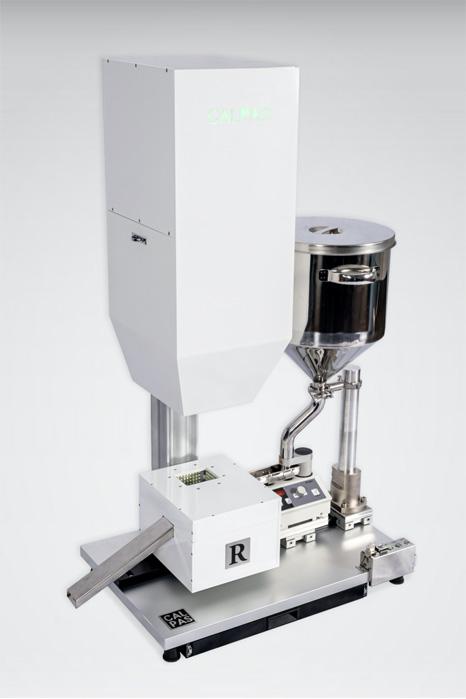

CALPAS-R foreign particle analyzer
Unit Price
On Request
Supplier
CALPAS
Country of origin
Korea
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2025

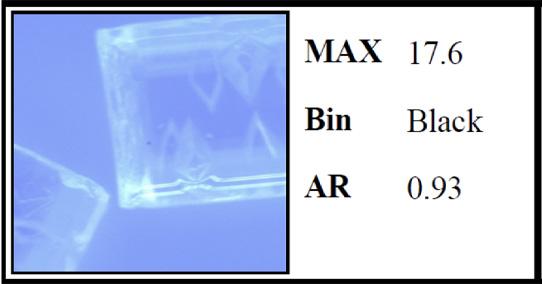

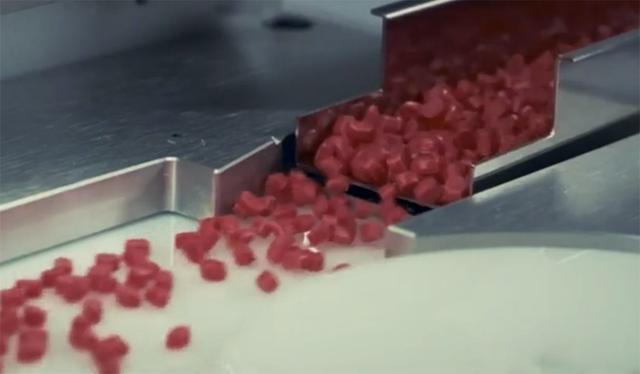

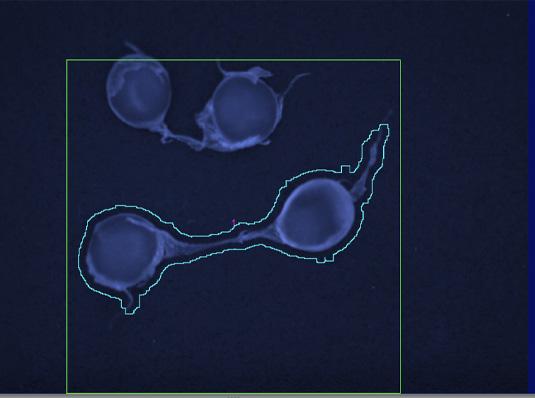

Standard for transparent pellet with Foreign Shaping Function. Used for foreign particle detection of normal pellets, opaque pellets, transparent pellets and application of foreign shape, particle size and shape analysis.
Technical Data
- Basic step angle (full/half) 0.072˚/0.036˚
- Max. Torque [kgf.cm] 50
- Rotor Inertia Moment [g.cm2] 280
- Wound resistance [Ω] 1.1
- Rated current [A/phase] 1.4
- Reduction gear ratio 1:10
- Protection IP30
- Speed range [rpm] 0~180
- Backlash +20’(0.33’)
- Electro-magnetic break rated excitation Voltage / Current 24VDC +10% / 0.33
- Rotor inertia [kgf.cm2] 29 x 10-7
- Lost motion +20’(0.33’)
- Dimension [mm] 420 x 420 x 110
- Gross weight [kg] 22
