ADECB10020

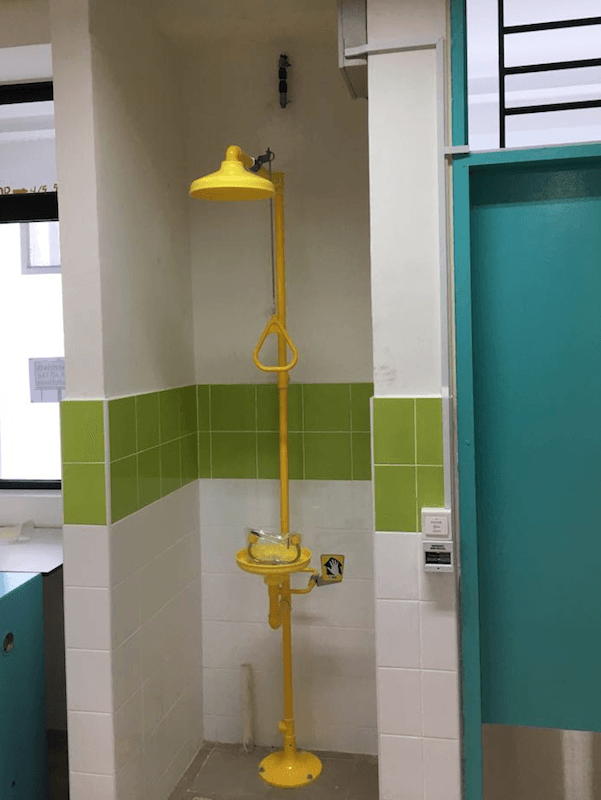

AdvanceLab Emergency Shower, (mm) H2260 x D550
Unit Price
On Request
Supplier
ADVANCELAB
Country of origin
Malaysia
Unit of Measurement
SET
Delivery time
8 - 10 weeks
Validity Until
31.12.2024

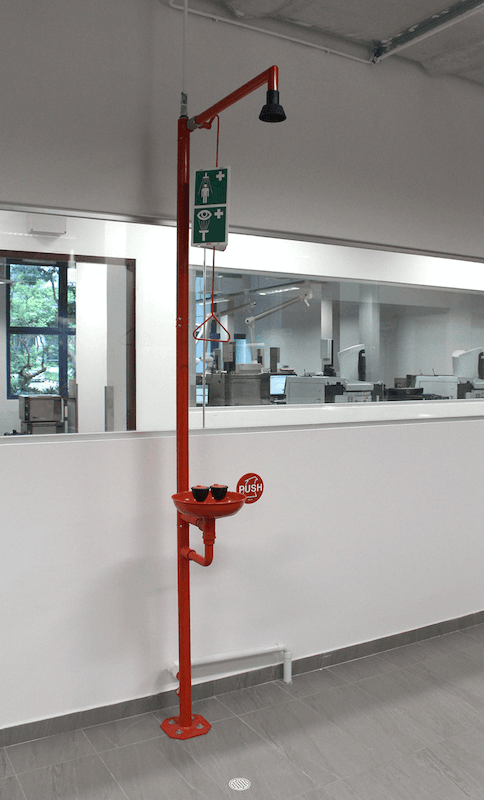

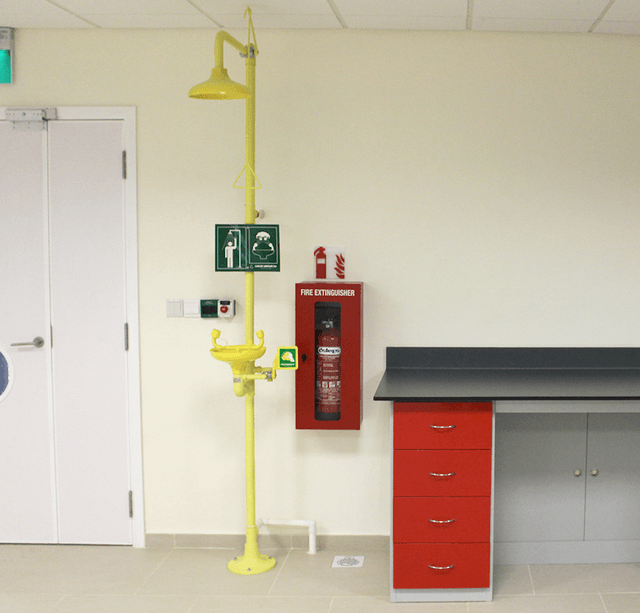

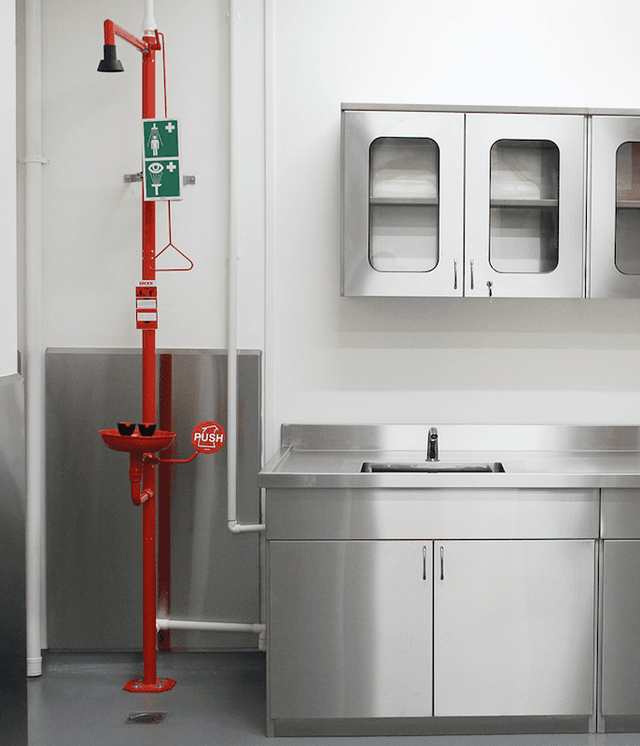

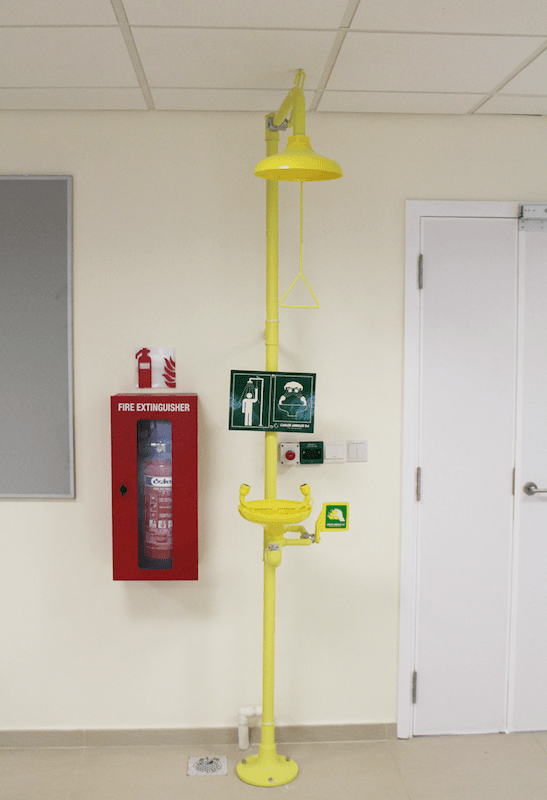

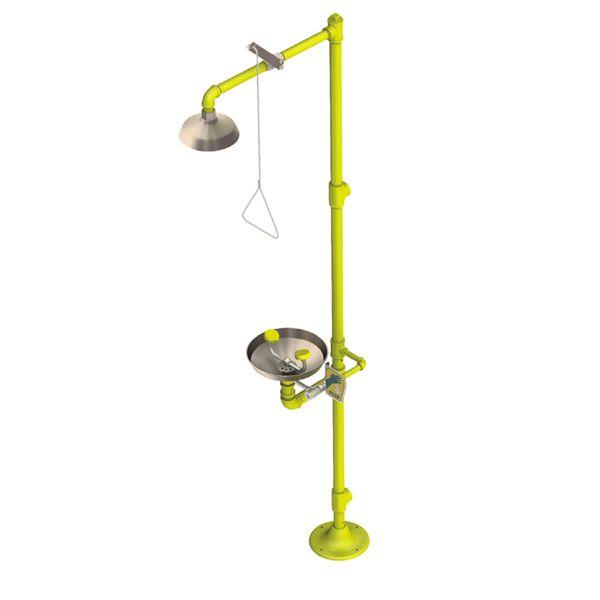

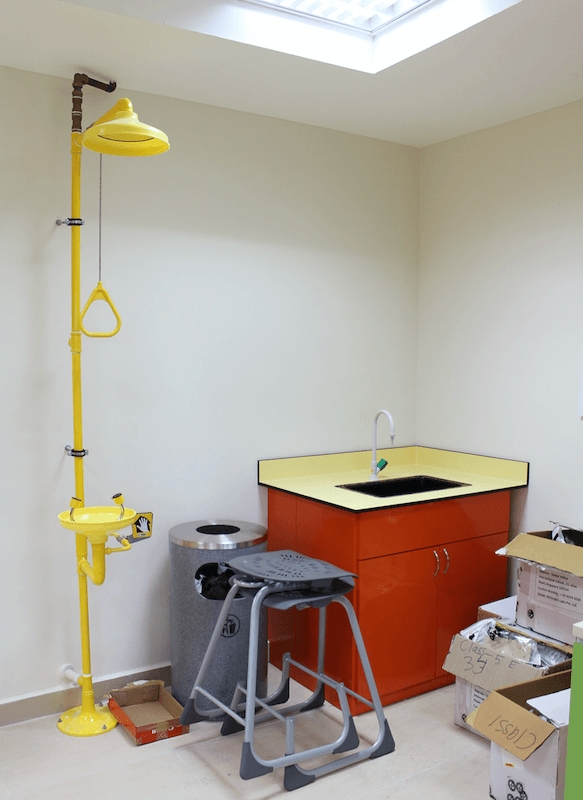

The most popular combination of shower and eyewash for industrial areas and laboratories. This floor-mounted combination unit of drench shower and eyewash with ABS plastic bowl comes with a foot pedal. The unit is very effective and highly recommended in accident-prone areas
Technical Data
- Dimension height x depth [mm] 2160 x 550
- Height from floor to eyewasher [mm] 950
- Height from floor to pulling rod [mm] 1560
- Shower and eyewash bowl diameter [mm] 280
- Injected moulded ABS shower and eyewash bowl
- 1'' SS316 control ball valve for shower
- 1/2" SS316 control ball valve for eyewash
- 1" galvanised steel pipe and fitting in bright yellow
- Stainless steel pull rod and aluminum foot pedestal
- Stainless steel shower and eyewasher & bolw
- Standard drench shower and eyewash signage
- Certified to ANSI / SEAZ358.81 - 2009 AS 4775-2007
