20.062.0001

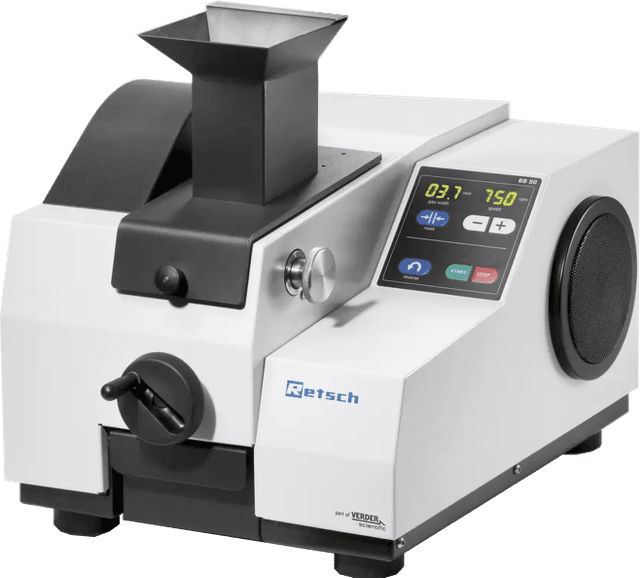

Retsch Jaw crusher BB 50, manganese steel | stainless steel, 200-240 V, 50/60 Hz
Unit Price
On Request
Supplier
RETSCH
Country of origin
Germany
Unit of Measurement
EA
Delivery time
12 - 14 weeks
Validity Until
31.12.2026
The BB 50 is the smallest model of the RETSCH jaw crusher series and has been specially designed for sample preparation in the laboratory. The compact machine fits on any laboratory bench and offers safe and convenient handling.
Technical Data
- Feed material, medium-hard, hard, brittle, tough
- Size reduction principle, pressure
- Material feed size [mm] < 40
- Final fineness [mm] < 0.5
- Throughput [L / batch] 3
- Jaw width [mm] 45 x 59
- Gap width setting, 0 - 11 mm in increments 0.1 mm

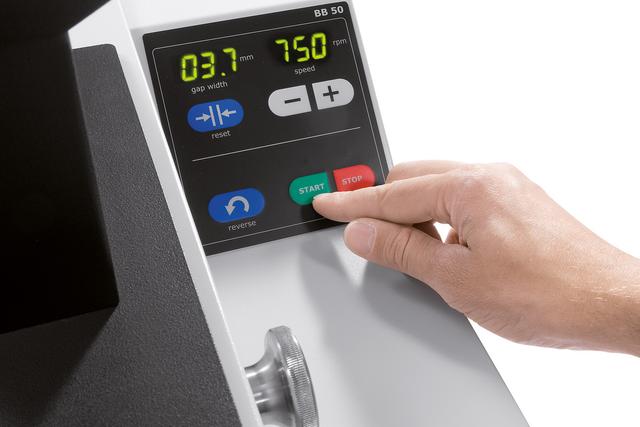

- Gap width display, digital
- Zero point adjustment
- Reverse rotating direction

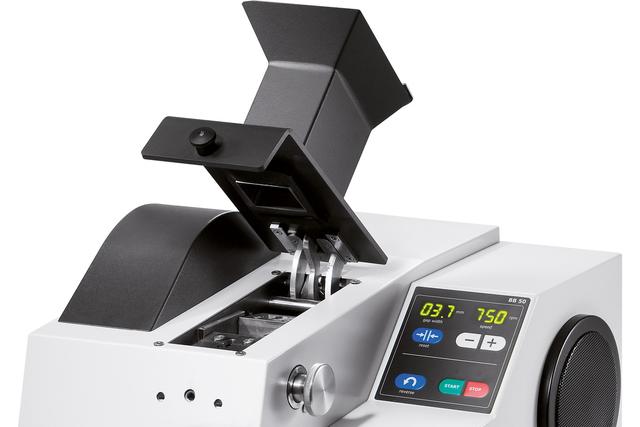

- Hinged hopper
- Dust extraction unit, already dust-tight
- Central lubrication, lifetime lubrication by manufacturer
- Process line version, process line use is possible by removing drawer

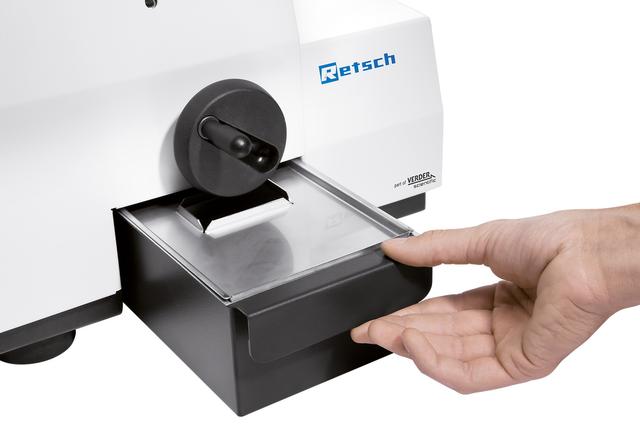

- Collector capacity [L] 3
- Drive, 3-phase motor with frequency converter
- Drive power [kW] 1.1
- Electrical supply data 200-240 V, 50/60 Hz
- Power connection, 1-phase
- Protection code, IP 20 / IP 00 at ventilation slots
- W x H x D closed [mm] 420 x 460 x 560
- Net weight [kg] ~ 79
- Standards CE
