20.053.0007

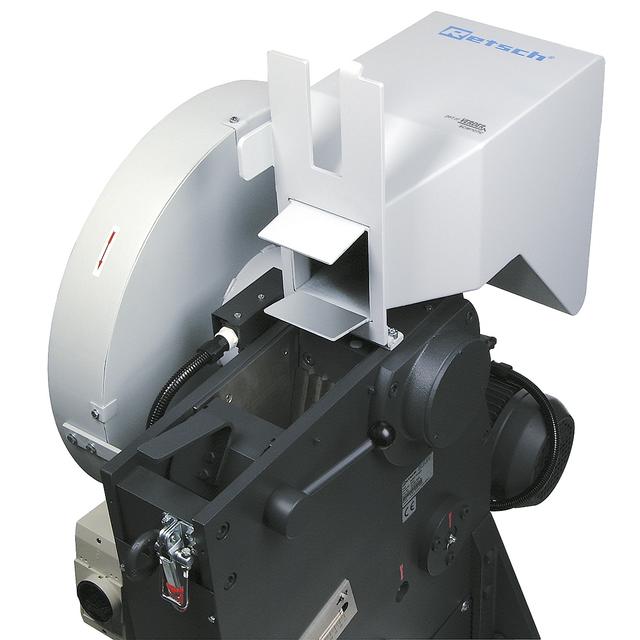

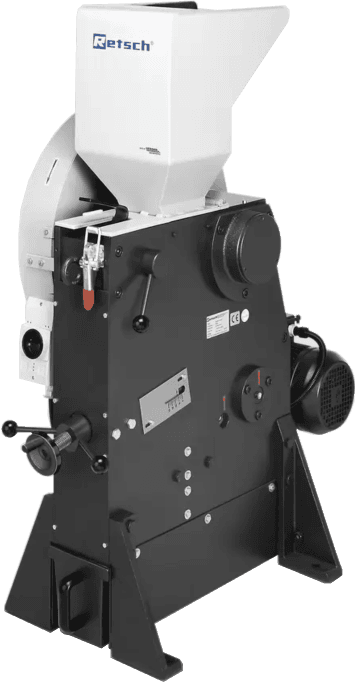

Retsch Jaw crusher BB 200, manganese steel | stainless steel, 230 V, 50 Hz
Unit Price
On Request
Supplier
RETSCH
Country of origin
Germany
Unit of Measurement
EA
Delivery time
12 - 14 weeks
Validity Until
31.12.2026
The RETSCH Jaw Crusher BB 200 is a floor model designed for a throughput of up to 300 kg|h, suitable for many typical crushing tasks. It accepts feed sizes up to 90 mm. The gap width can be set stepless from 0-30 mm. Depending on the sample material, particle sizes down to 2 mm can be obtained, resulting in a crushing ratio of 45. Its versatile usage includes continuous pre-and fine crushing in one step or process-line versions.
Technical Data
- Feed material, medium-hard, hard, brittle, tough
- Size reduction principle, pressure
- Material feed size [mm] < 90
- Final fineness [mm] < 2
- Throughput [kg / h] 300
- Jaw width [mm] 90 x 90
- Gap width setting [mm] 0 - 30
- Gap width display, scale
- Zero point adjustment
- Hinged hopper
- Dust extraction unit
- Maintenance- and lubricant-free sliding bearing

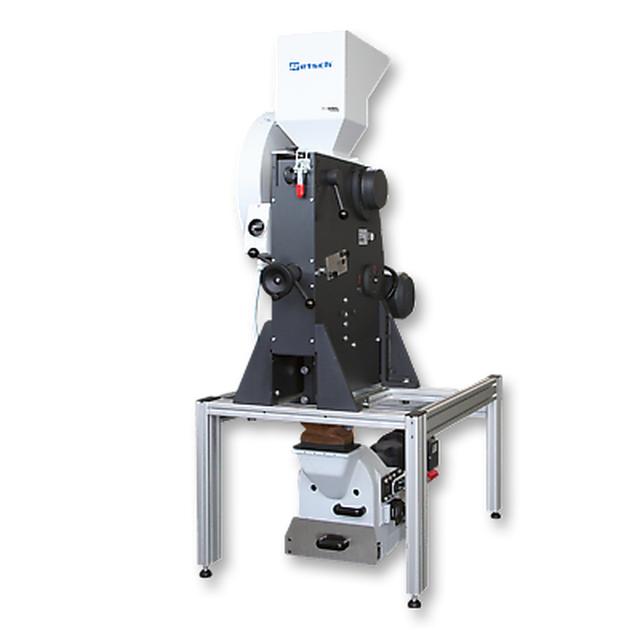

- Process line version, optional
- Collector capacity [L] 5
- Drive, 1-phase motor / 3-phase motor
- Drive power [kW] 1.5
- Electrical supply data 230 V, 50 Hz
- Power connection, 1-phase / 3-phase
- Protection code, IP 54
- W x H x D closed [mm] 450 x 1160 x 900
- Net weight [kg] ~ 300
- Standards CE
