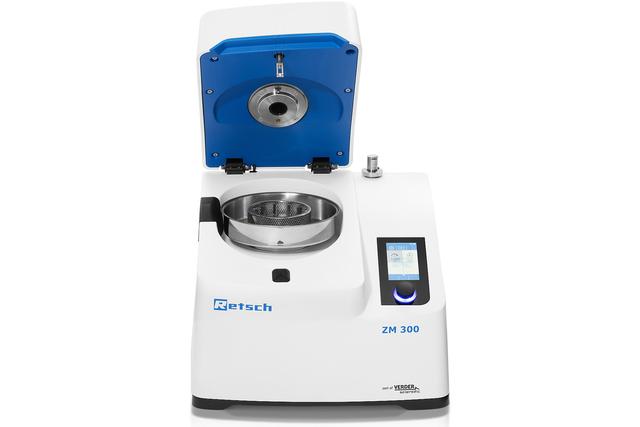

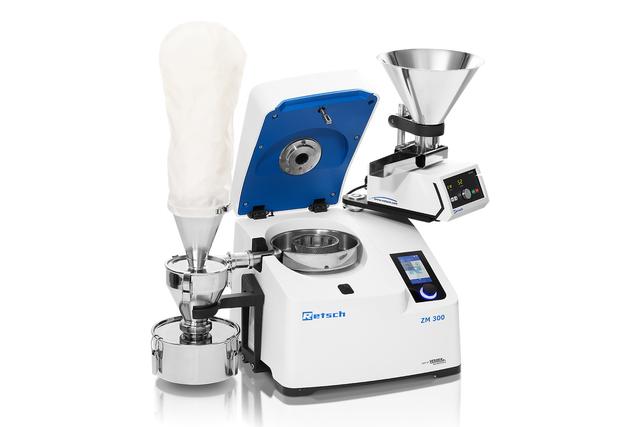

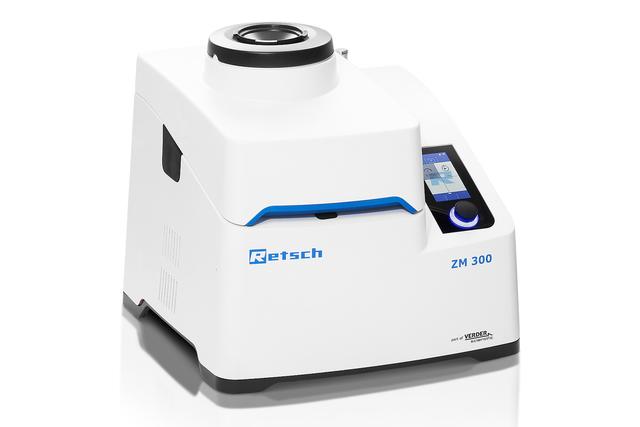

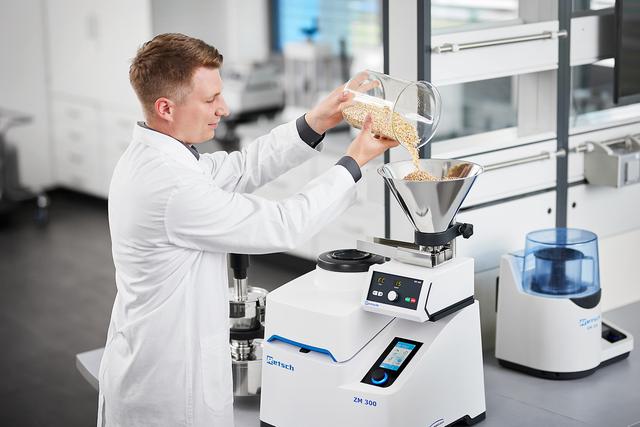

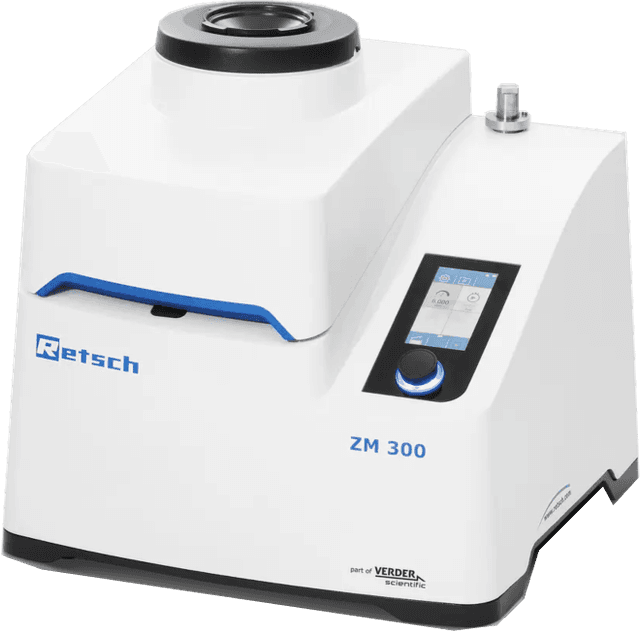

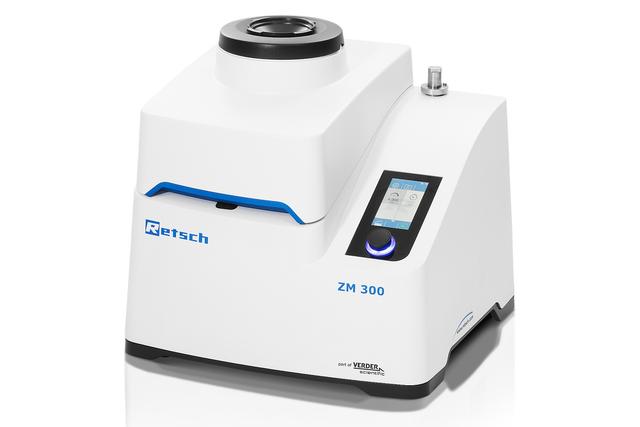

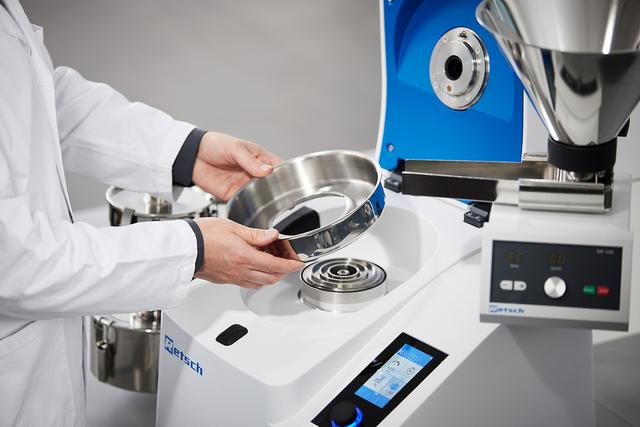

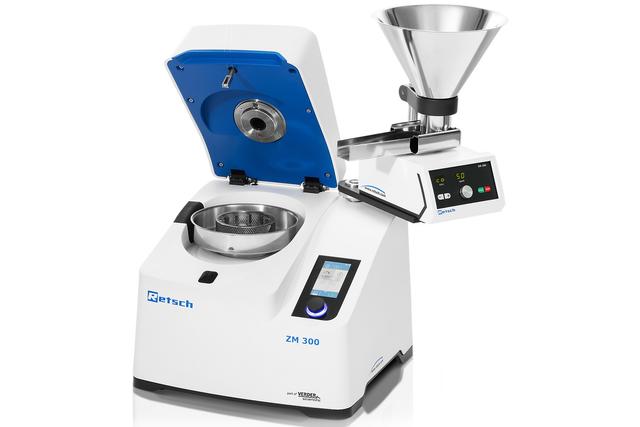

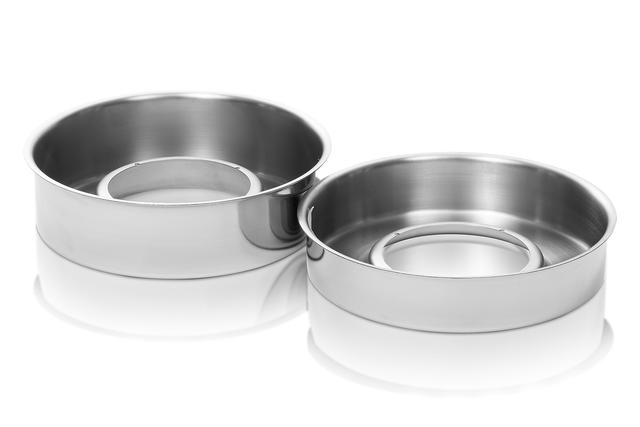

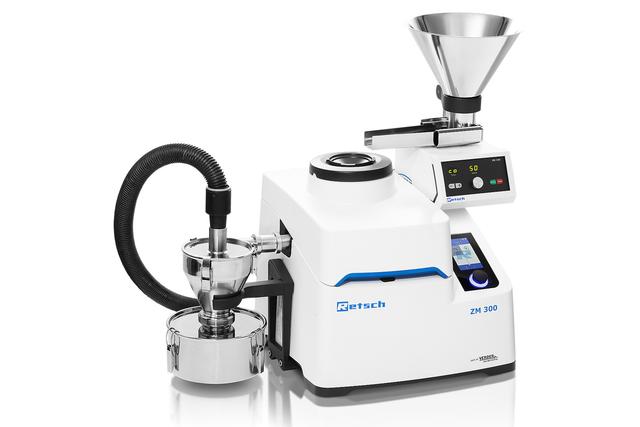

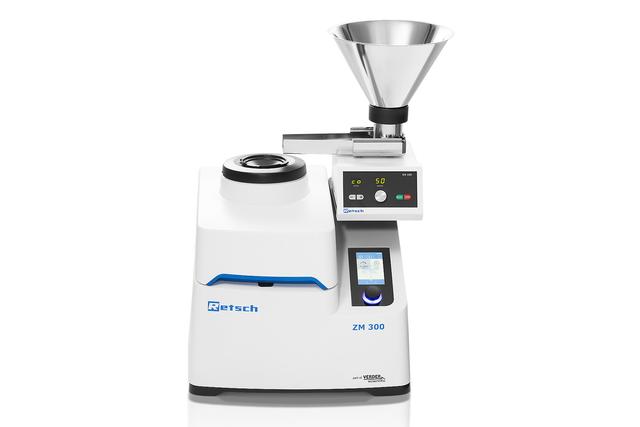

Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz

Unit Price
On Request
Supplier
RETSCH
Country of origin
Germany
Unit of Measurement
EA
Delivery time
12 - 14 weeks
Validity Until
31.12.2026
The powerful RETSCH Ultra Centrifugal Mill ZM 300 provides maximum grinding performance combined with ease of use. The variable speed from 6,000 to 23,000 rpm allows for gentle, neutral-to-analysis sample preparation in a very short time.
Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz
Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz
Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz
Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz
Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz
Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz
Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz
Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz
Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz
Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz
Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz
Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz
Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz
Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz
Retsch Ultra Centrifugal Mill ZM 300, with 900 ml cassette, 230 V, 50/60 Hz
Technical Data
  • Feed material, soft, medium-hard, brittle, fibrous
  • Size reduction principle, impact, shearing
  • Material feed size [mm] < 10
  • Final fineness [µm] < 40
  • Batch size / feed quantity with cassette [ml] 300 | 600

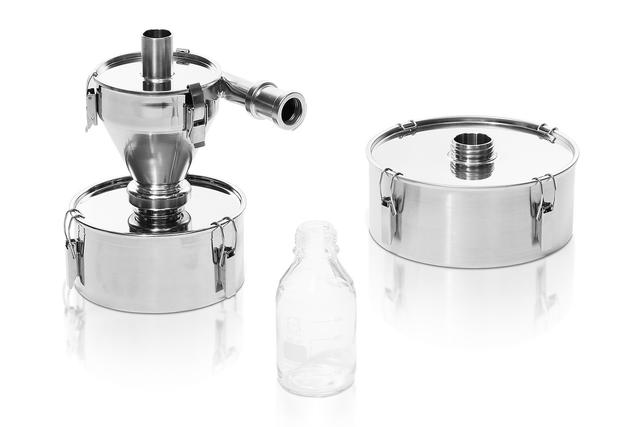

  • Batch size / feed quantity with ccyclone [ml] 4500 | 2500 | 450 | 230
  • Speed at 50 Hz (60 Hz) [min-1] 6,000 - 23,000
  • Rotor peripheral speed [m/s] 31 - 119
  • Rotor diameter [mm] 99

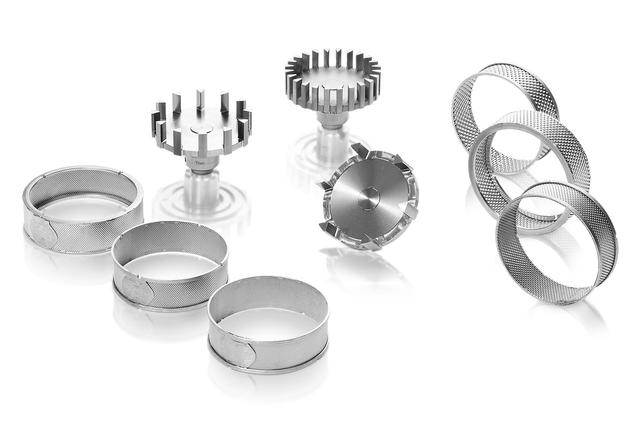

  • Type of rotor, 6 | 12 | 24 -tooth rotor
  • Sieve sizes, trapezoid holes [mm] 0.08 | 0.12 | 0.20 | 0.25 | 0.50 | 0.75 | 1.00 | 1.50 | 2.00
  • Sieve sizes, round holes [mm] 3.00 | 4.00 | 5.00 | 6.00 | 10.00
  • Collector capacity with cassette [L] 900 | 1200
  • Collector capacity with cyclone [L] 5000 | 3000 | 500 | 250
  • Drive, 3-phase asynchronous motor with frequency converter
  • Electrical supply data 230 V, 50/60 Hz
  • Power connection, 1-phase
  • Protection code, IP 30
  • Power consumption [VA] 1750
  • W x H x D closed [mm] 452 x 431 x 426
  • Net weight [kg] ~ 38
  • Standards CE
