20.831.0001

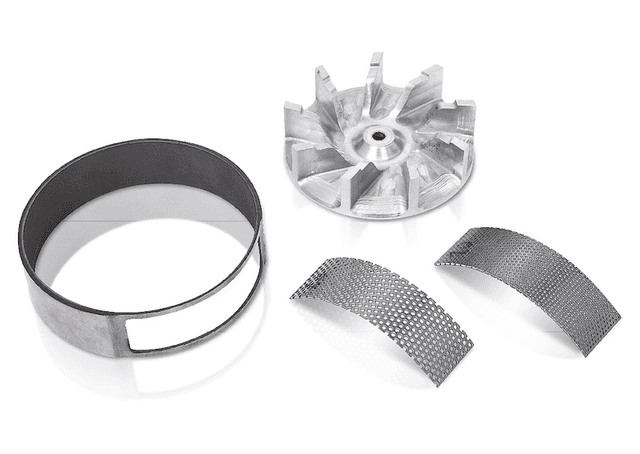

Retsch Cyclone Mill TWISTER, complete with rotor, grinding ring, sieve section (1.0 mm and 2.0 mm), wooden plunger and 10 sample bottles 250 ml, 220–240 V, 50/60 Hz
Unit Price
On Request
Supplier
RETSCH
Country of origin
Germany
Unit of Measurement
EA
Delivery time
12 - 14 weeks
Validity Until
31.12.2026

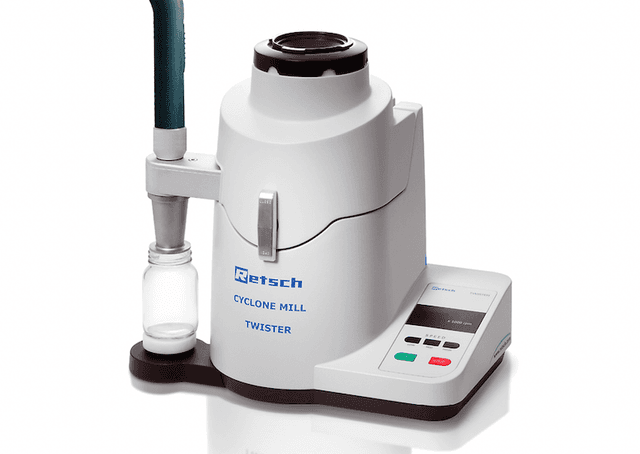

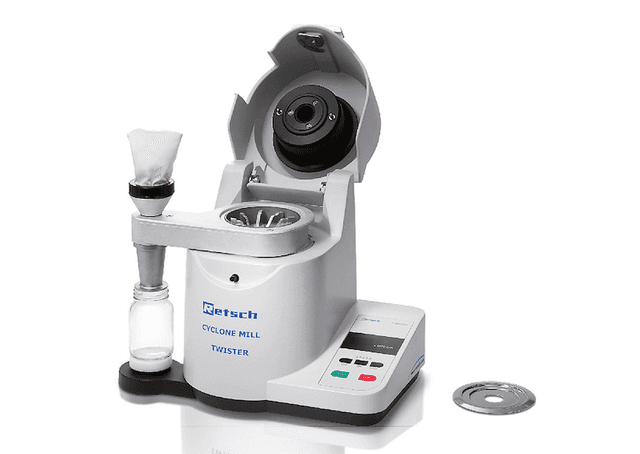

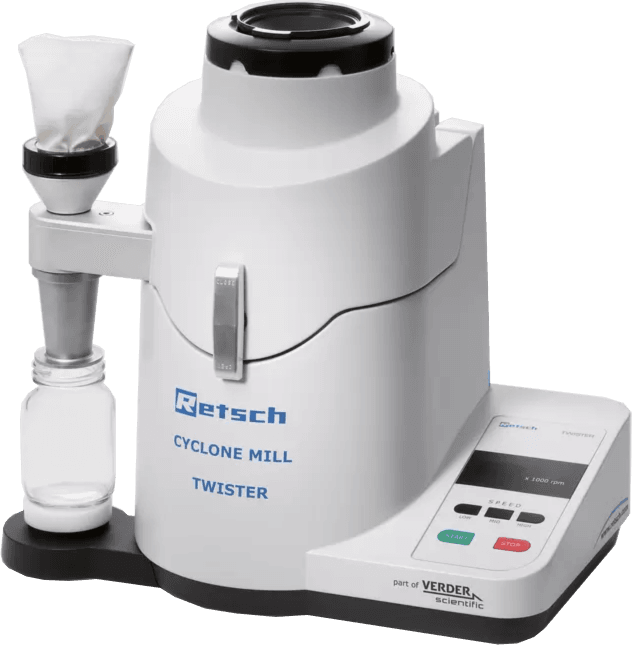

The RETSCH cyclone mill TWISTER is specially designed for the processing of foods and feeds for subsequent NIR analysis. The optimized form of rotor and grinding chamber generates an air jet which carries the ground sample through the integrated cyclone into the sample bottle. The air jet prevents the material from heating up, thus preserving the moisture content.
Technical Data
- Feed material, fibrous, soft
- Size reduction principle, impact, friction
- Material feed size [mm] < 10
- Final fineness [µm] < 250
- Batch size [ml] < 250
- Speed setting [min-1] 10,000 | 12,000 | 14,000
- Rotor peripheral speed [m/s] 52 | 62 | 72
- Rotor diameter [mm] 98.5
- Sieve sizes [mm] 1 | 2
- Drive, series-characteristic motor
- Drive power [kW] 900
- Electrical supply data 220–240 V, 50/60 Hz
- Power connection, 1-phase
- W x H x D closed [mm] 449 x 427 x 283
- Net weight [kg] 14
- Standards CE
