30.030.0001

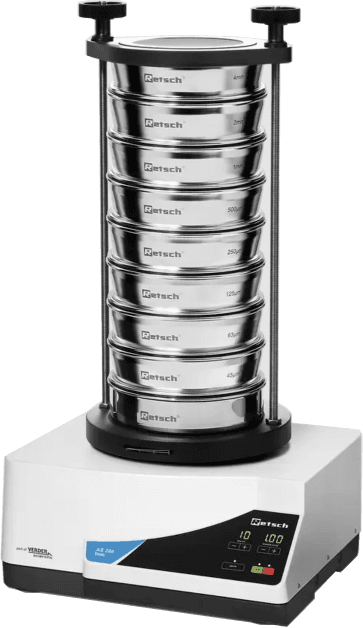

Retsch Vibratory Sieve Shakers AS 200 Basic, for test sieves up to 203 mm | 8” Ø, 230 V, 50 Hz
Unit Price
On Request
Supplier
RETSCH
Country of origin
Germany
Unit of Measurement
EA
Delivery time
12 - 14 weeks
Validity Until
31.12.2026
The vibratory sieve shakers of the series AS 200 are used in research & development, quality control of raw materials, interim and finished products as well as in production monitoring. The controllable electromagnetic drive offers an optimal adaption for every product. Sharp fractions are obtained even after short sieving times. The AS 200 basic sieve shaker is the economical alternative of the series with familiar RETSCH quality and reliability. It features digital setting and display of performance and time.
Technical Data
- Feed material, powders, bulk materials, suspensions
- Measuring range 20 µm - 25 mm
- Sieving motion, throwing motion with angular momentum
- Max. batch / feed capacity [kg] 3
- Max. number of fractions 9 / 17
- Max. mass of sieve stack [kg] 4
- Amplitude, digital, 1 - 100% (0 - 3 mm)
- Time display, digital, 1 - 99 min
- Suitable for dry sieving
- Suitable for wet sieving
- Suitable sieve diameters [mm] 100 | 200 | 203 (8")
- Max. height of sieve stack [mm] 510
- Electrical supply data 230 V, 50 Hz
- Power connection, 1-phase
- Protection code, IP 21
- W x H x D closed [mm] 417 x 212 x 384
- Net weight [kg] ~ 35
- Standards CE
