30.027.0001

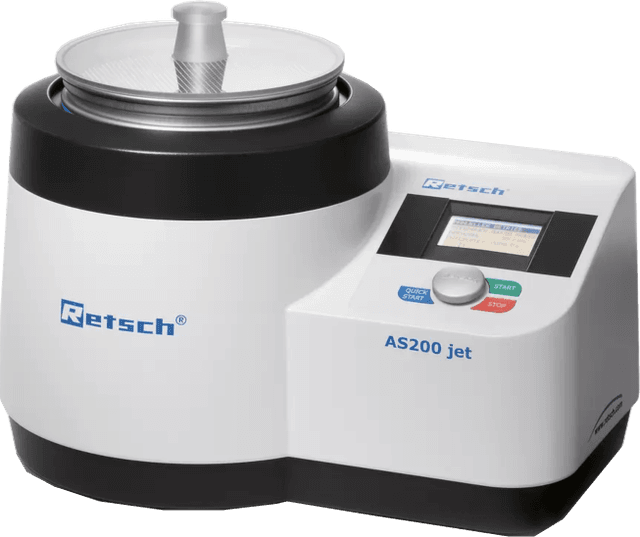

Retsch Air Jet Sieving Machine AS 200 Jet, for test sieves 203 mm (8”) Ø, with manual vacuum regulation, incl. lids for test sieves 1” and 2” height and rubber mallet, 100–240 V, 50/60 Hz, incl. test report acc. to EN 10204 2.2
Unit Price
On Request
Supplier
RETSCH
Country of origin
Germany
Unit of Measurement
EA
Delivery time
12 - 14 weeks
Validity Until
31.12.2026
The Air Jet Sieving Machine RETSCH AS 200 jet is particularly suitable for low density and low particle size materials which tend to agglomerate. It is used with sieves of 10 microns mesh size and up. The procedure is very gentle on the material as no mechanical sieving aids are required. The average sieving time is only 2-3 minutes.
Technical Data
- Feed material, powders
- Measuring range 10 µm - ~ 4 mm
- Sieving motion, dispersion by air jet
- Max. batch / feed capacity [g] 0.3 - 100
- Max. number of fractions 1 | 2 (cyclone)
- Speed, digital, 5 - 55 min-1
- Time display, digital, 1 - 99 min
- Vacuum, 2,000 - 9,999 Pa / 20 - 99 mbar / 0.3 – 1.45 psi
- Suitable for dry sieving
- Serial interface
- Including test certificate
- Suitable sieve diameters [mm] 203 | 200 (adapter)
- Max. height of sieve stack [mm] 25 | 50
- Storable SOPs 9
- Electrical supply data 100-240 V, 50/60 Hz
- Power connection, 1-phase
- W x H x D closed [mm] 460 x 288 x 305
- Net weight [kg] ~ 16
- Standards CE
