Sympatec Particle Size Analyzer for Pharma Jet Milling process
Without suitable online analysis the pharmaceutical jet milling process would have to be interrupted on a regular basis in order to analyze the grinding progress in the lab using individual, manually removed samples.
The reality
The pharmaceutical industry places the highest requirements on quality and reliability in the manufacturing and application of pharmaceutically active substances and excipients. The objective is not only to safely handle these substances during production and to protect the operating personnel, but also to ensure faultless product quality using an appropriate quality concept in the product and process development, the so-called Quality by Design (QbD). Part of this concept is the Process Analytical Technology (PAT) initiative of the US Food and Drug Administration (USFDA), who monitor and manage the production processes from the intermediate products to the completion of the final product using in-process control measures. This requires the timely measurement of critical process parameters (CPP) which influence the critical quality attributes (CQA) for source materials and in-process materials. This is achieved using suitable systems for analysing and controlling the production processes.
A common process step in the manufacturing of finely dispersed active ingredient powder for solid dosage forms is air jet grinding in the kilo lab. Without suitable online analysis the grinding process would have to be interrupted on a regular basis in order to analyse the grinding progress in the lab using individual, manually removed samples. The grinding process is suspended until the analysis results are available.
The solution

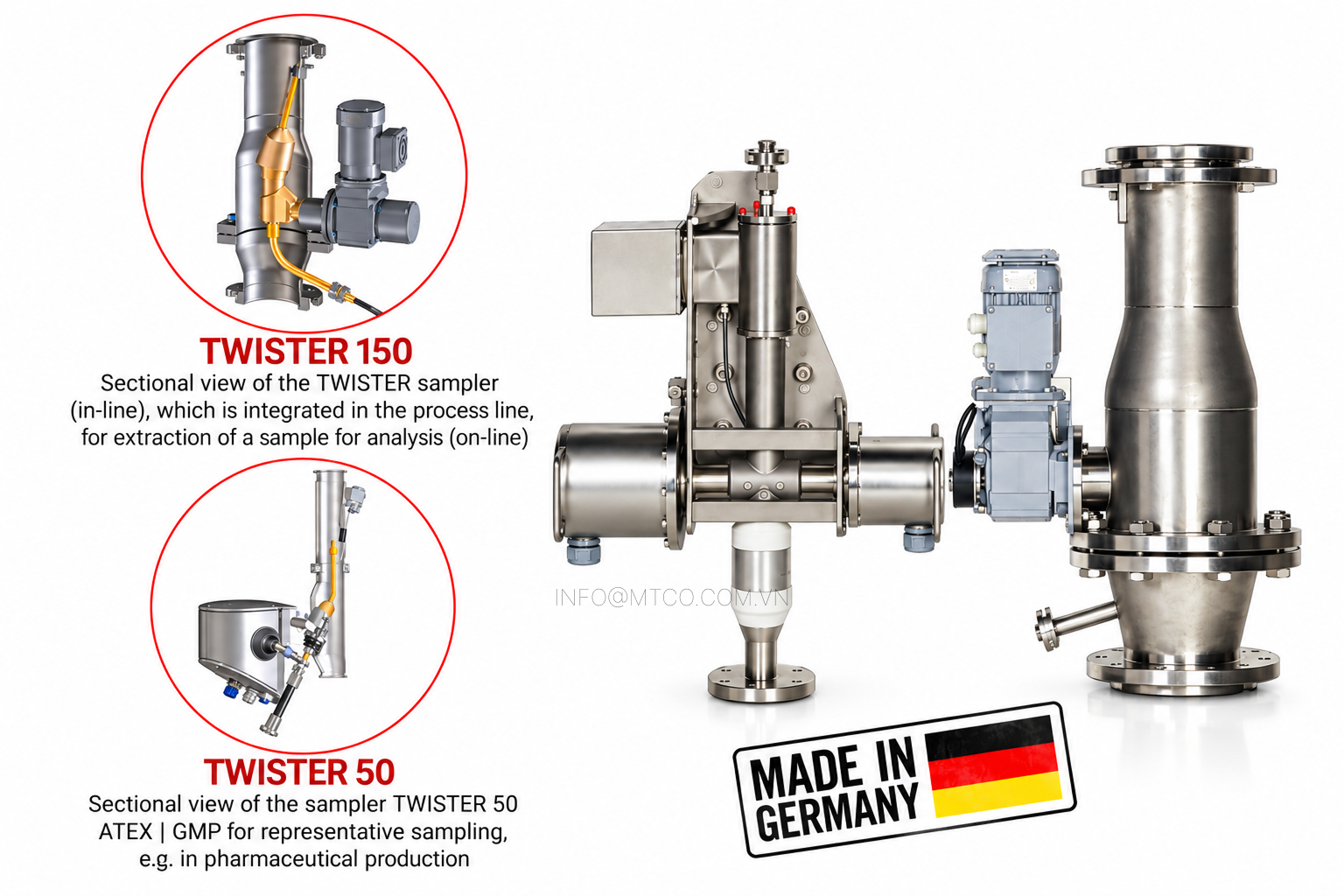

Online particle size analysis, however, provides real-time monitoring of the grinding level – without interrupting the grinding process and while shielding the active substance in the sense of containment. Using appropriate sampling systems such as TWISTER or probes makes it possible to both retrieve minimal, but nevertheless representative product quantities from the process and discharge them on the MYTOS laser diffraction sensor. The online monitoring provides reliable measurement results for particle size distribution in real time. Grinding parameters such as form, quantity and classifier speed can thus be optimised in operation. The active ingredient remains in a closed system through the entire process. This means that contamination can be avoided within the scope of the analysis.
Recommended Sympatec Particle Size Analyzer configuration

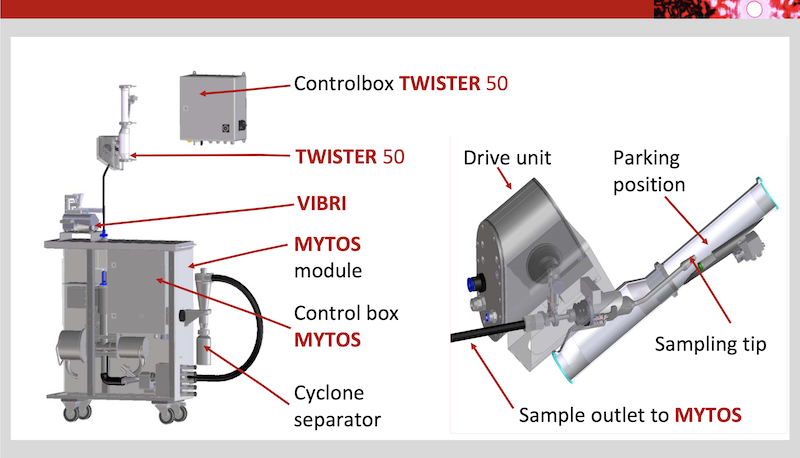

MYTOS & TWISTER

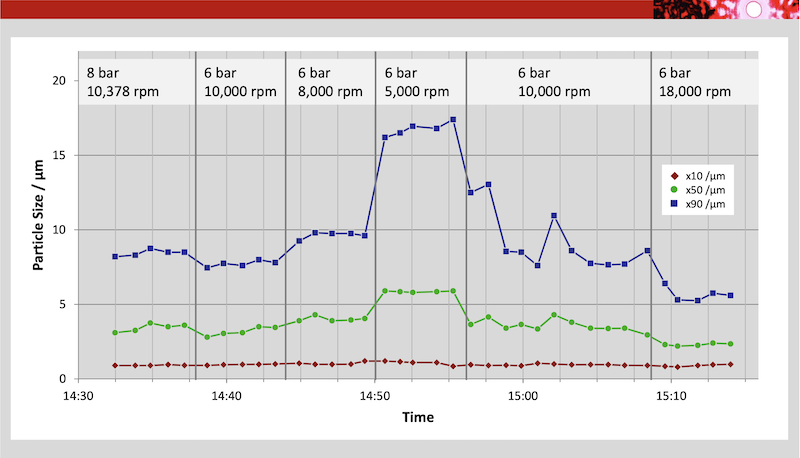

Variations of Milling Conditions

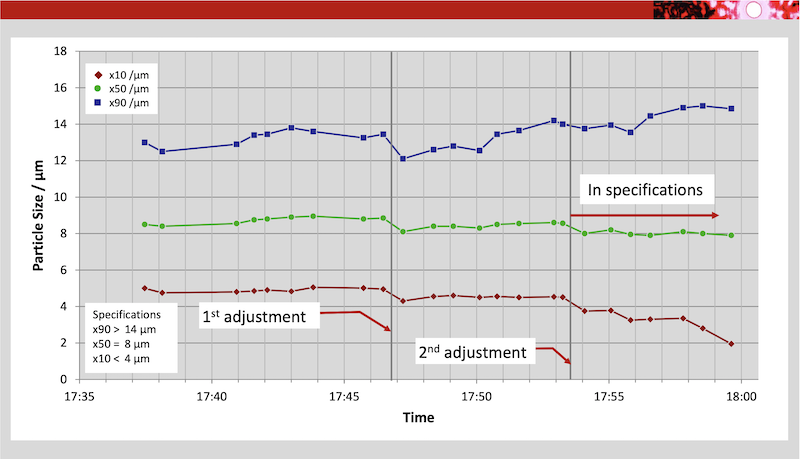

Real‐time Adjustment of Milling Conditions
The benefits
- Better understanding and control of manufacturing process according to FDA’s PAT initiative
- Timely in‐process measurements of critical quality attributes (i.e. particle size
- Closing the control loop, ensuring of final product quality
- Fast and user independent quality control
- Process optimisation by reduc ing of waste products
- GMP compliant design with ATEX layout available
The implementation of online control in Jet Milling of active pharmaceutical ingredients and excipients through the utilization of Sympatec Particle Size Analyzer MYTOS and TWISTER is of paramount importance in the pharmaceutical industry. This sophisticated technology offers real-time monitoring and analysis of particle size distribution during the milling process, ensuring consistent and precise particle size reduction. With immediate feedback on particle size data, manufacturers can make rapid adjustments to milling parameters, leading to enhanced process efficiency and minimized material wastage. The integration of MYTOS and TWISTER also enables automation, reducing the risk of human errors and contamination, thereby elevating product quality and safety. Furthermore, the continuous process optimization achieved through this online control system results in improved drug characteristics, such as enhanced dissolution rates and bioavailability, contributing to the overall advancement of drug development and ultimately benefiting patients.
Ultimately, the online control of Jet Milling with the Sympatec Particle Size Analyzer MYTOS and TWISTER is indispensable in ensuring precise and efficient pharmaceutical manufacturing processes.
