MYTOS

Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor

Unit Price
On Request
Supplier
SYMPATEC
Country of origin
Germany
Unit of Measurement
PIECE
Delivery time
16 - 20 weeks
Validity Until
31.12.2024

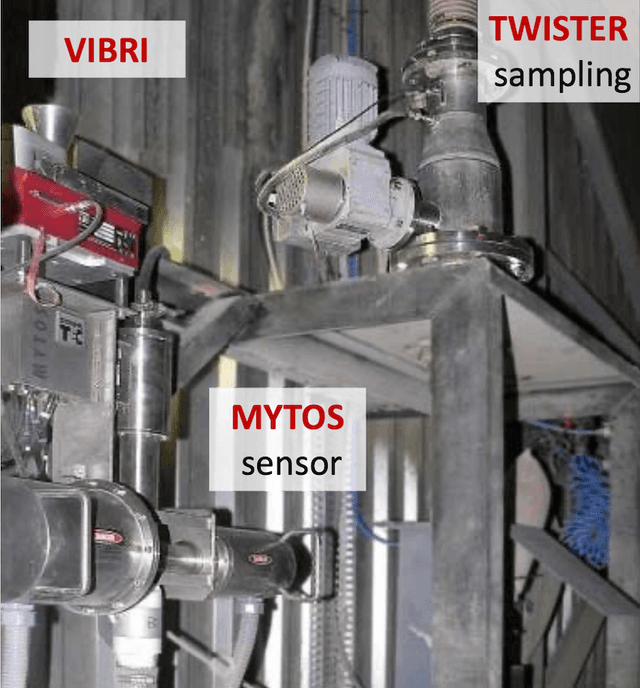

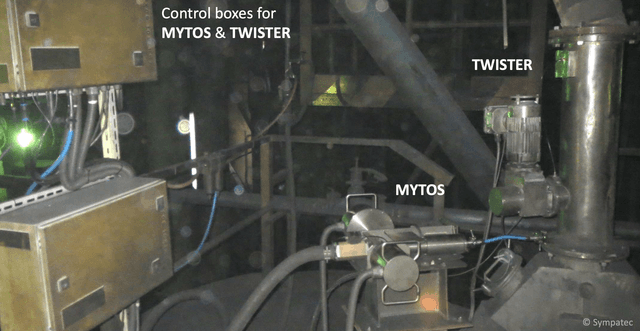

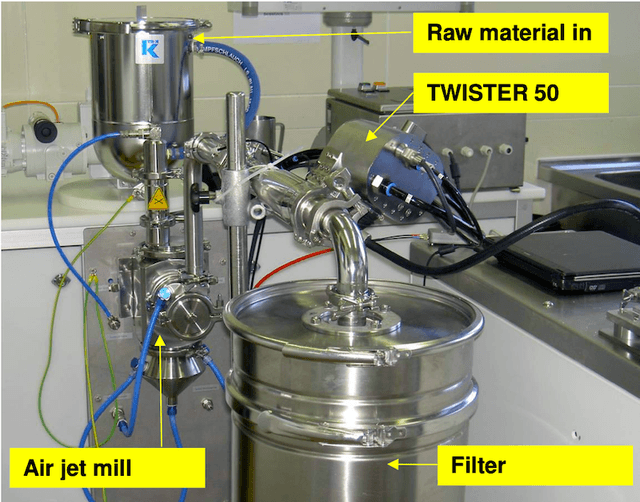

Sympatec MYTOS integrates the established core technologies of HELOS laser diffraction and RODOS dry dispersion in a single robust body: a process-proven laser diffraction sensor for dry powders ranging from 0.25 µm to 3,500 µm. In combination with continuously operating sampling system TWISTER a complete integration into the processing pipe is realised making it a true in-line solution delivering representative results.
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Sympatec MYTOS, 0.25 - 3,500 µm, laser diffraction sensor
Technical Data
  • Overall measuring range [µm] 0.25 - 3,500
  • Principle Laser Diffraction
  • Forward scattering in parallel beam
  • Classic optical fourier set up (ISO 13320)
  • Encapsulated measuring zone with shielded aeresol input (sheath flow)
  • Light source Helium-neon laser λ = 632.8 nm (Red)
  • Protection class 1
  • Beam diameter R2,R3,R4 2.2mm; R5,R6M 8.8mm; R6,R7 26.0mm
  • Discrete measuring range modules R2,R3,R4,R5,R6M
  • Multi-element semiconductor detector
  • 31 elements detector with 180o design for orientation
  • 3 center elements for precise auto alignment
  • Acquisition rate 2,000 diffraction patterns per second
  • Measuring time (minimum) 0.5 ms/measurement (typical) 30-60 s/measurement
  • Evaluation mode of particle size distribution FREE/ MIEE
  • Repeatability <0.3% (dry), comparability <1.5%
  • Compliant with ISO 13320, FDA 21 CFR Part 11
