30333-001-33838

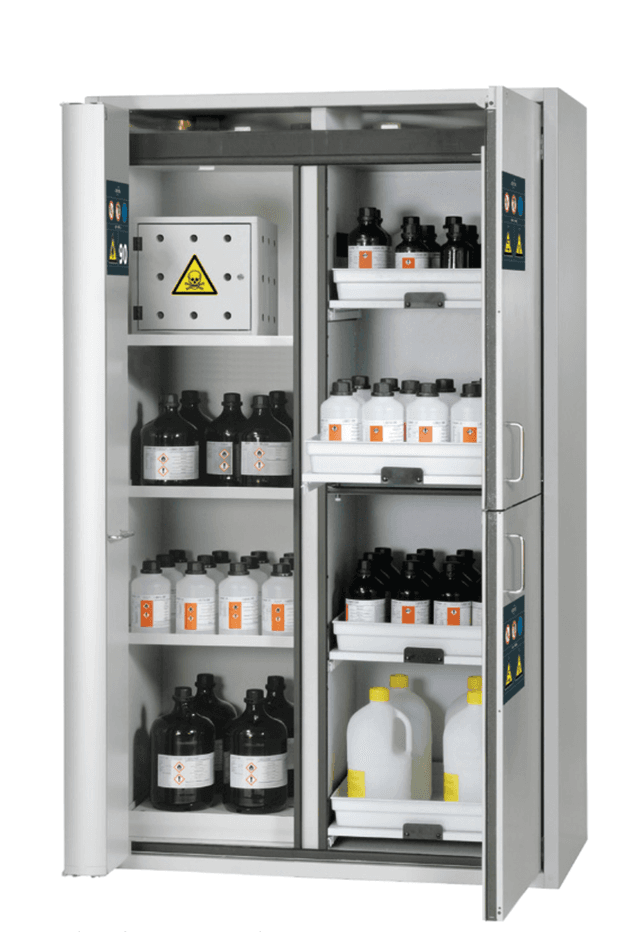

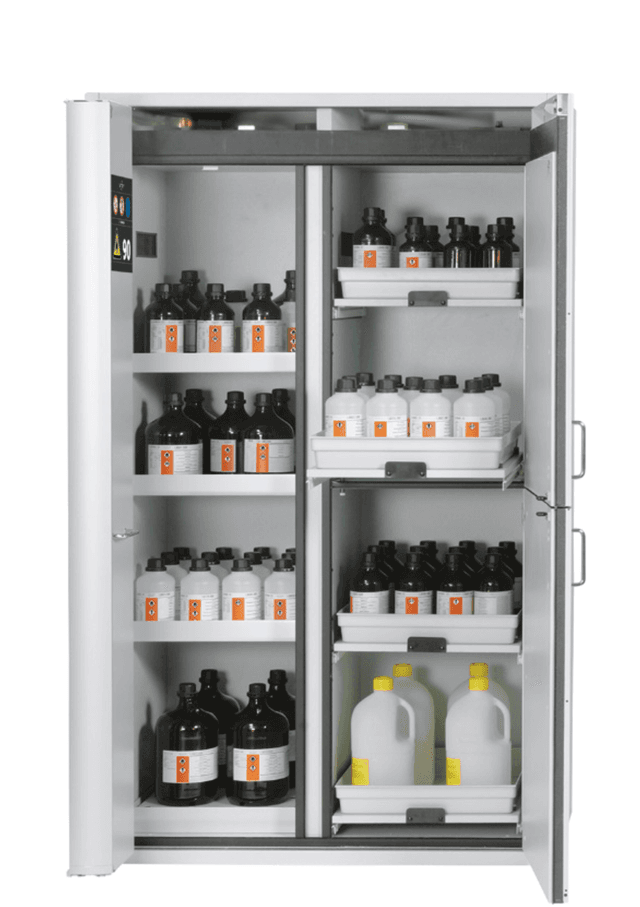

Asecos K-PHOENIX-90 model K90.196.120.MF.FWAS cabinet, (mm) 1197 x 617 x 1969, left 3x shelf, 1x perforated insert, 1 bottom collecting sump; steel; top right 2x pull-out shelf, bottom right 2x pull-out shelf; PP

Name: Asecos K-PHOENIX-90 model K90.196.120.MF.FWAS cabinet, (mm) 1197 x 617 x 1969, left 3x shelf, 1x perforated insert, 1 bottom collecting sump; steel; top right 2x pull-out shelf, bottom right 2x pull-out shelf; PP
Brand: ASECOS

Unit Price

On Request

Supplier

ASECOS

Country of origin

Germany

Unit of Measurement

Delivery time

10 - 12 weeks

Validity Until

31.12.2024

Asecos K-LINE safety storage cabinets are for the storage of aggressive and flammable hazardous substances in several hermetically separated storage compartments. The Asecos K-PHOENIX-90 cabinet is with classic wing and folding doors and 90 minutes fire resistance.

Asecos K-PHOENIX-90 model K90.196.120.MF.FWAS cabinet, (mm) 1197 x 617 x 1969, left 3x shelf, 1x perforated insert, 1 bottom collecting sump; steel; top right 2x pull-out shelf, bottom right 2x pull-out shelf; PP

Technical Data

90 minutes fire resistant
Wing & folding doors
Integrated height adjusting aids

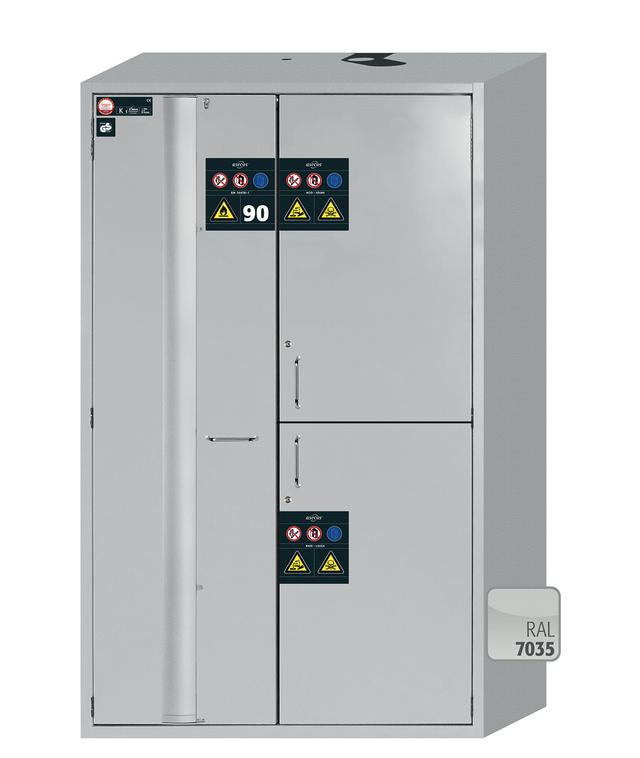

Color grey RAL 7035 & grey RAL 7035
External dimensions WDH [mm] 1197 x 617 x 1969

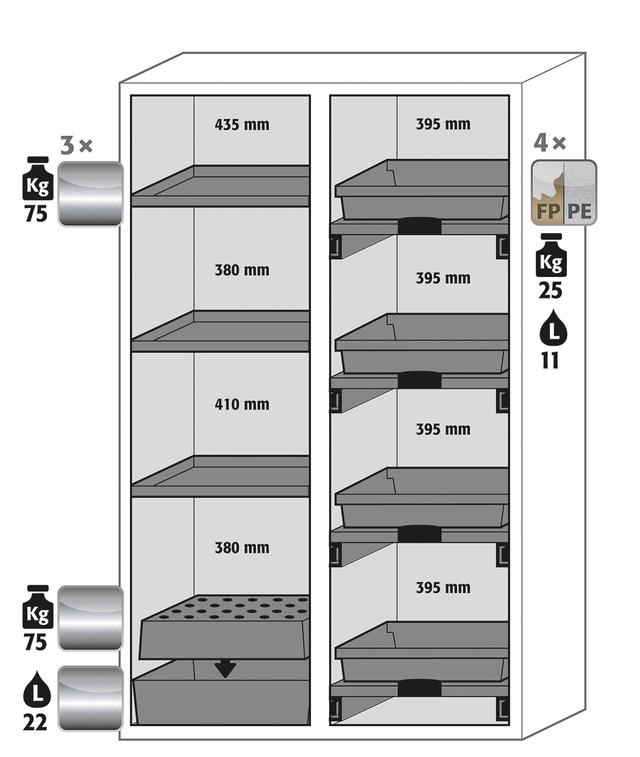

Internal dimensions WDH [mm] 450 x 522 x 1742 | 491 x 542 x 862 (x 2)
Net weight configuration [kg] 541
Minimum exhaust air quantity 10 times [m3/h] 9
Differential pressure (10 times air change) [Pa] 5
Differential pressure (10 times air change EK5/AK4) [Pa] 5
Distributed load [kg/m2] 576
Maximum load [kg] 600
Entry width transport base [mm] 2 x 440
Entry height transport base [mm] 100
Max. load of shelves [kg] 30
Max. load of perforated insert [kg] 75
Max. load of drawer [kg] 25
Capacity of bottom collecting sump [L] 22
Capacity of drawer [L] 11
CE Compliant
GS Cerified
DIN 16121/16122
