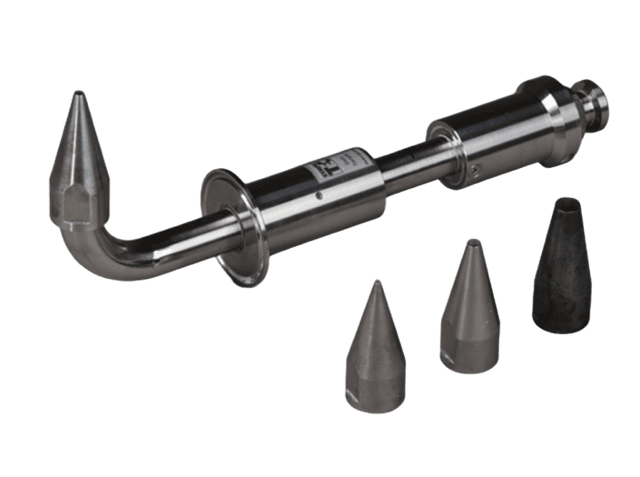

Sympatec Probes, dynamic sampling unit

The compact single-point sampling probes are particularly well suited for dry, disperse products that tend to have a narrow grain size range and flow through the pipe cross-section with a preferably uniform distribution during transport. With an installation height of just 150 mm, they are integrated via a weld-on stud with clamping flange directly in the product-bearing process line. With the RODOS dry dispersion used in the downstream on-line analysis system the necessary vacuum for extracting an analysis sample is generated. Accordingly, the probes can be used in combination with both the MYTOS laser diffraction systems and the PICTOS image analysis systems.
