AD04H

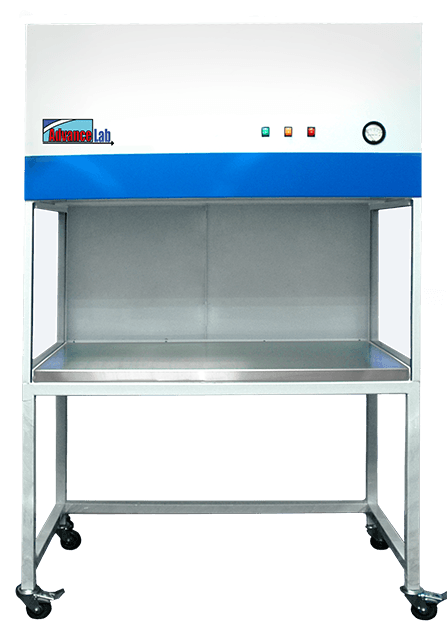

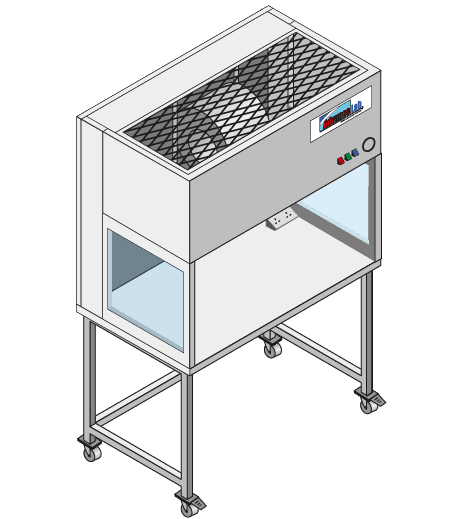

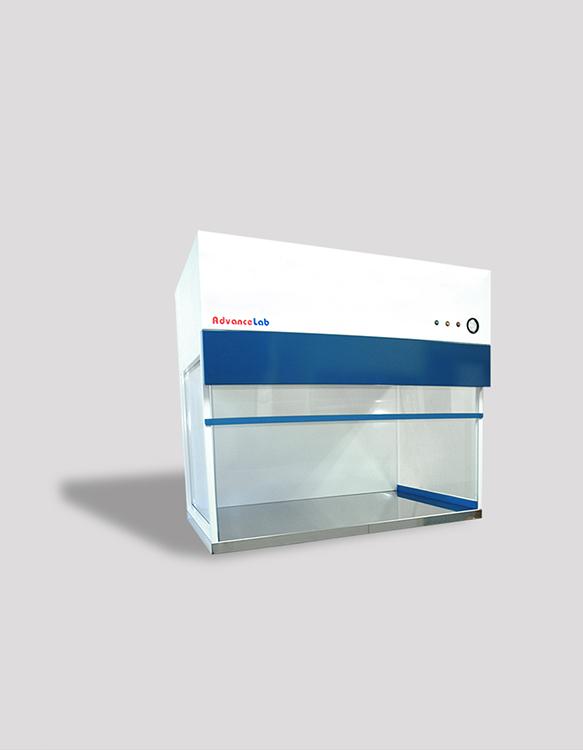

AdvanceLab Laminar Cabinet, horizontal flow, (mm) 1305 x 770 x 1105
Unit Price
On Request
Supplier
ADVANCELAB
Country of origin
Malaysia
Unit of Measurement
EA
Delivery time
8 - 10 weeks
Validity Until
31.12.2024
AdvanceLab Laminar Flow Cabinets are particle free, sterile working environments that allow product protection. Ambient air is taken in via a blower across a pre-filter; this air is then forced through a HEPA filter that captures particles at an efficiency af 99.99% at 0.3 microns. As the cabinets are positively pressured, there is no chance of contaminants entering the cabinets.
Technical Data
- Dimension WDH [mm] 1305 x 770 x 2005
- Industrial electrogalvanised steel construction
- Heavy Epoxy powder coated finish
- Dished stainless steel SS304 worktop
- Transparent Perspex or Polycarbonate side panel
- Horizontal laminar flow, face velocity [m/s] 0.45
- Filtered air volume at 0.45m/s [cmh] 1200
- US Fed Standard 209E Class 100 cleanliness
- HEPA filter with filtration 99.99% at 0.3 microns
- Pre filters to extend the life of HEPA filters
- Built-in fluorescent light with intensity > 700lux
- Noise level < 65 dBA at initial setting
- Electrical power 1-phase 220 - 240V 50/60 Hz
