ADSEAT-30-D4
AdvanceLab Centrifugal Fan, Ø250mm, 1450RPM
Unit Price
On Request
Supplier
ADVANCELAB
Country of origin
Malaysia
Unit of Measurement
EA
Delivery time
8 - 10 weeks
Validity Until
31.12.2024

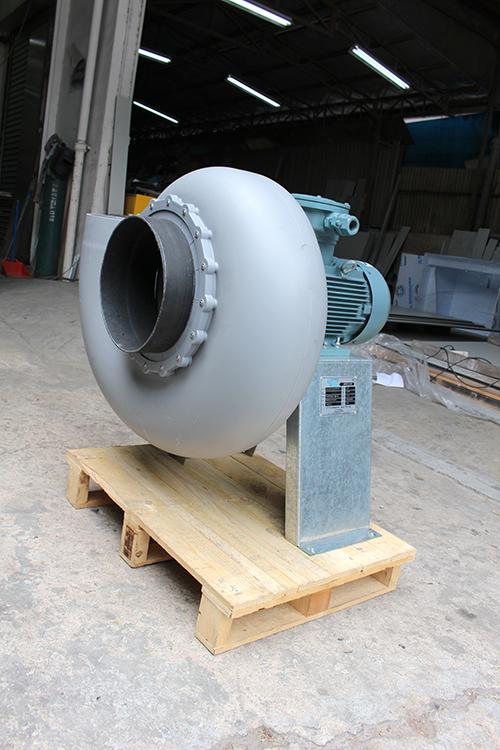

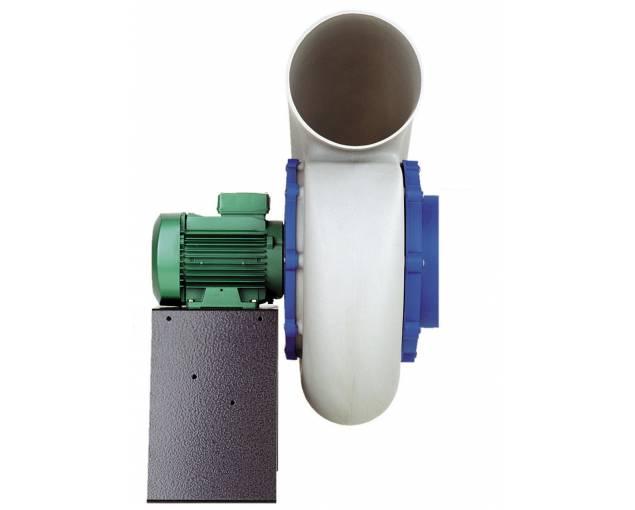

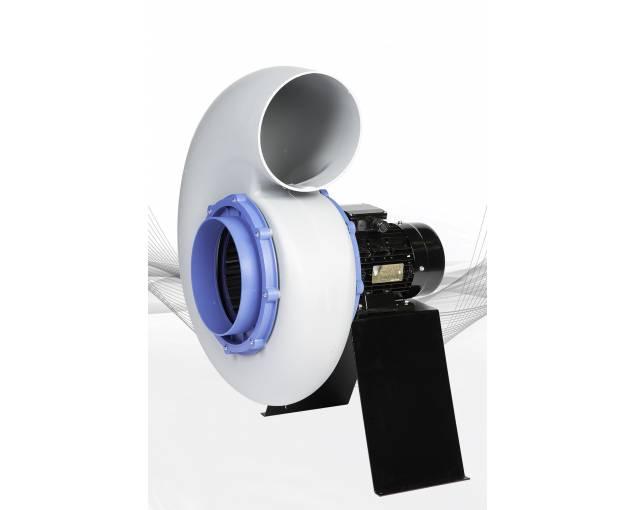

AdvanceLab Polypropylene Centrifugal Exhaust Fan designed to extract highly corrosive gases with the inlet and outlet dimension of 200mm.
Technical Data
- Dimension WDH [mm] 602 x 540 x 910
- Range of air flow [CMH] 1000 - 4500
- Total static pressure [Pa] 80 - 800
- Fan moteur rotor speed [RPM] 1450
- Electrical consumption capacity [kW] 1.1
- Inlet and outet diameter [mm] 250 | 250
- Single block recyclable Polypropylene housing
- Housing is rotable to 8 discharge positions
- All fan mounting hardward in stainless steel
- Fan impeller made of injection molded PPH
- Metal support stand with Epoxy coated [pcs] 01
- Available in ATEX zone II or explosion proof
- Temperature resistant of fan upto [oC] 80
- Electrical power 1-phase or 3-phase 50/60 Hz
