ADSEAT-25-D4

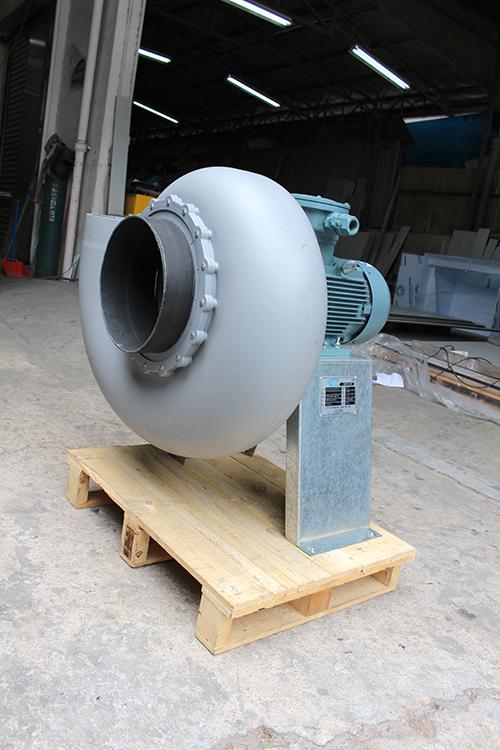

AdvanceLab Centrifugal Fan, Ø200mm, 1450RPM
Unit Price
On Request
Supplier
ADVANCELAB
Country of origin
Malaysia
Unit of Measurement
EA
Delivery time
8 - 10 weeks
Validity Until
31.12.2024

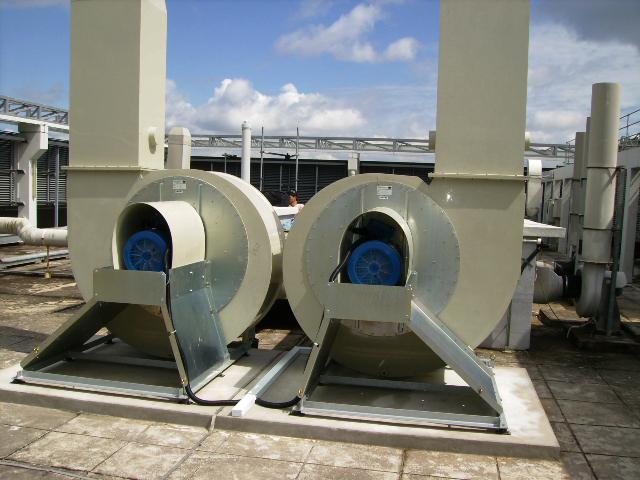

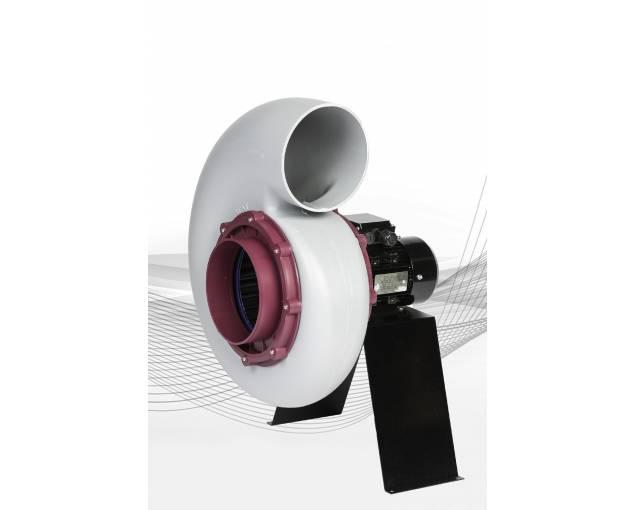

AdvanceLab Polypropylene Centrifugal Exhaust Fan designed to extract highly corrosive gases with the inlet and outlet dimension of 200mm.
Technical Data
- Dimension WDH [mm] 505 x 430 x 736
- Range of air flow [CMH] 500 - 2500
- Total static pressure [Pa] 60 - 1400
- Fan moteur rotor speed [RPM] 1450
- Electrical consumption capacity [kW] 0.37
- Inlet and outet diameter [mm] 200 | 200
- Single block recyclable Polypropylene housing
- Housing is rotable to 8 discharge positions
- All fan mounting hardward in stainless steel
- Fan impeller made of injection molded PPH
- Metal support stand with Epoxy coated [pcs] 01

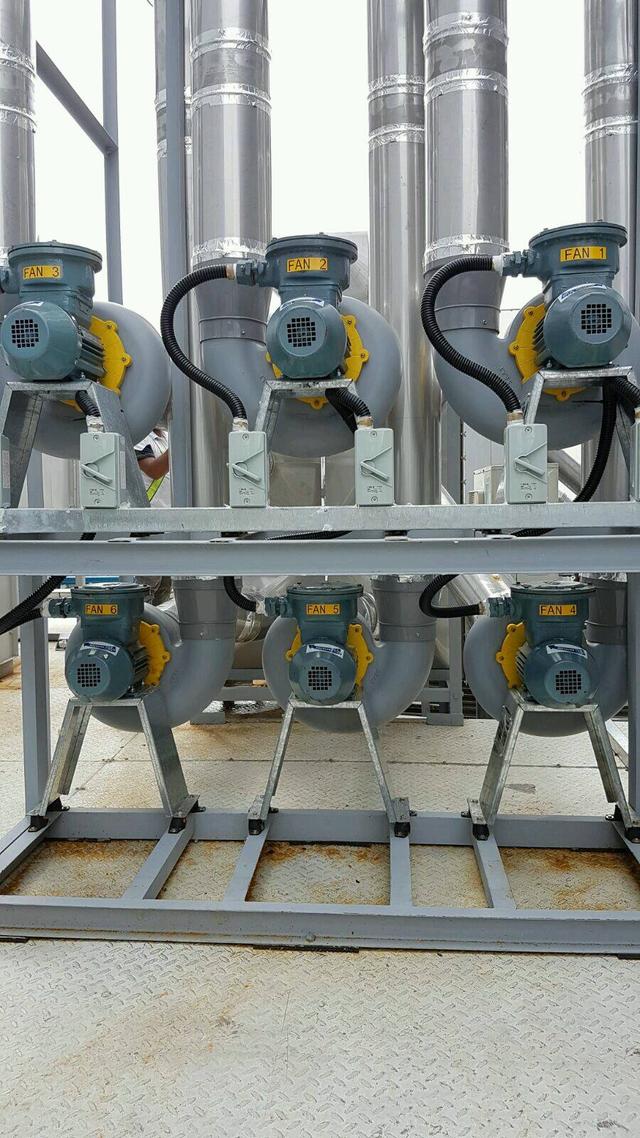

- Available in ATEX zone II or explosion proof
- Temperature resistant of fan upto [oC] 80
- Electrical power 1-phase or 3-phase 50/60 Hz
