CIL315H

AdvanceLab Metal In-line Fan, Ø315mm, 2150RPM

Unit Price
On Request
Supplier
ADVANCELAB
Country of origin
Malaysia
Unit of Measurement
EA
Delivery time
8 - 10 weeks
Validity Until
31.12.2024

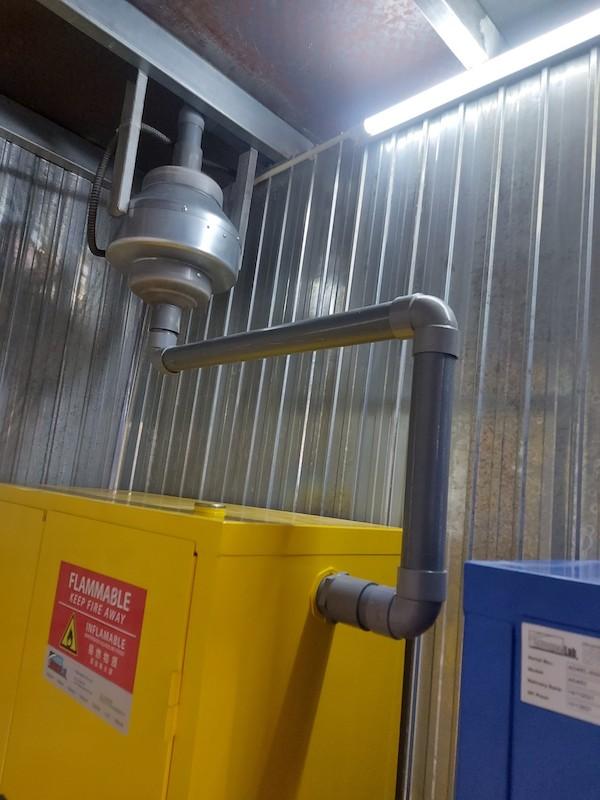

Metal in-line fan designed to extract easy-to-burn gases with the inlet and outlet dimension of 315mm
Advancelab Metal In-line Fan, Ø315mm, 2150RPM
Advancelab Metal In-line Fan, Ø315mm, 2150RPM
Advancelab Metal In-line Fan, Ø315mm, 2150RPM
Technical Data
  • Dimension Dia. x W/ L [mm] 402 x 265
  • Fan moteur rotor speed [RPM] 2150
  • Inlet and outet diameter [mm] 315 | 315
  • Low sound level [dB A] 48
  • Operation ambient temperature [oC] -14 … +40
  • Easy installation and electrical connection
  • Higher airfow with medium static pressure
  • Casing and impeller are of metal
  • Compact in size and lighter in weight
  • Permanently lubricated ball bearings
  • Reliable and maintenance-free operation
  • Moisture resistant suitable for damp environment
  • Built-in thermal protection device
  • Electrical power 1-phase 220 - 240V 50/60 Hz
