005-0750GO

ProfilGate® b65 Go dry sole cleaning system, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate

Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2024

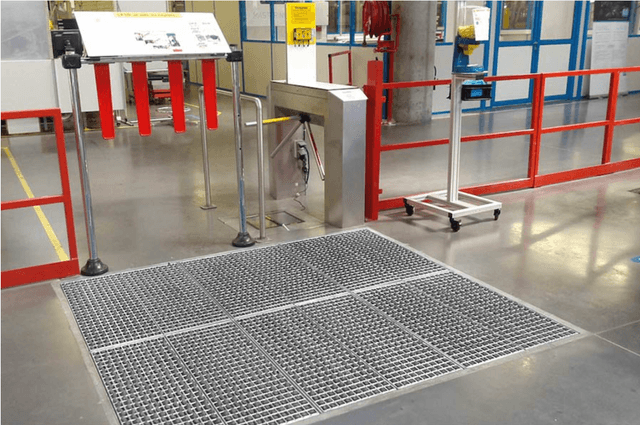

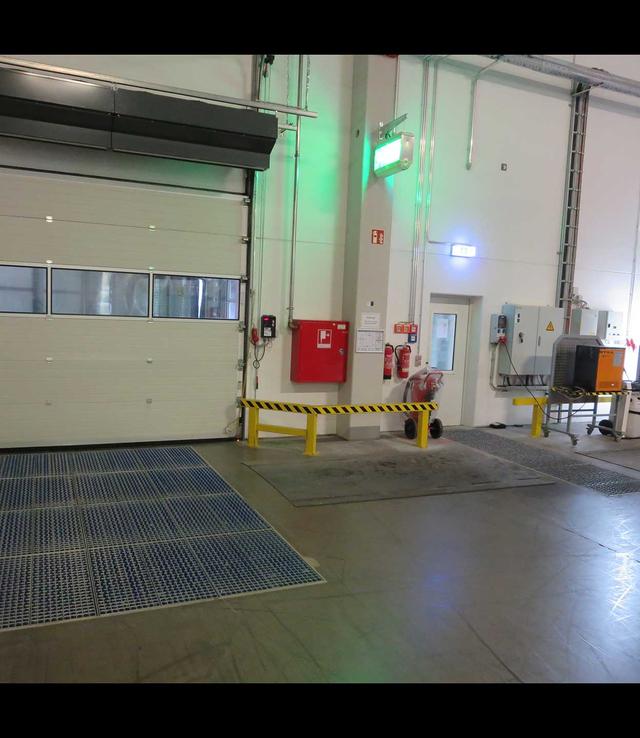

ProfilGate® b Go Series is dry sole cleaning system for dry sole cleaning at entrances from outside. Ideal for facility entrances from outside due to the high dirt absorbing volume and wide-mesh grates. Especially suitable for the cleaning of coarsely profiled soles.
b65 go
b55 go
1.0 x 1.0
1.5 x 1.0

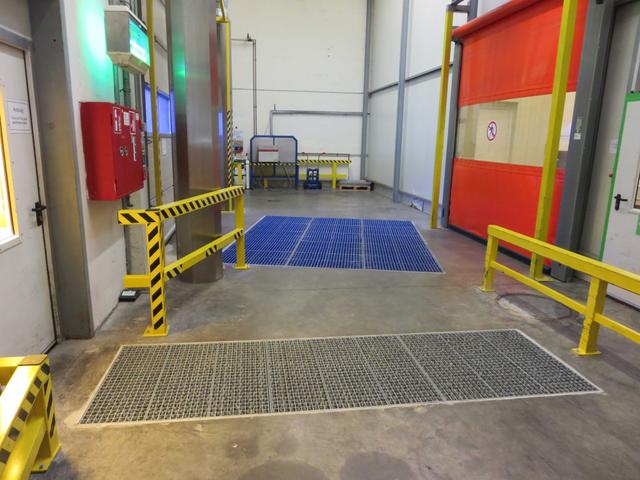

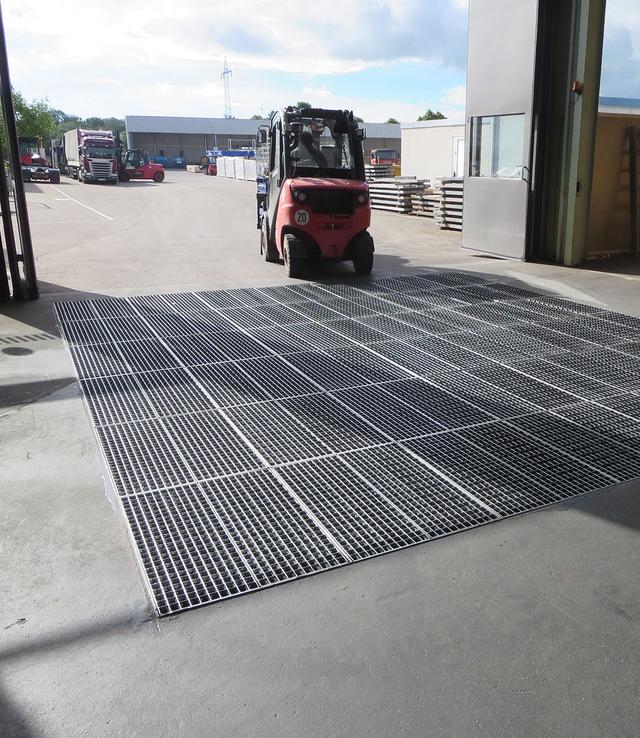

ProfilGate® b65 go, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® b65 go, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® b65 go, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® b65 go, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® b65 go, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® b65 go, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® b65 go, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® b65 go, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® b65 go, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® b65 go, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® b65 go, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® b65 go, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® b65 go, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® b65 go, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
Technical Data
  • For dry sole cleaning at entrances from outside
  • Ideal for cleaning the coarselry profiled soles
  • For highly frequented entrance zones
  • Tray height [mm] 65

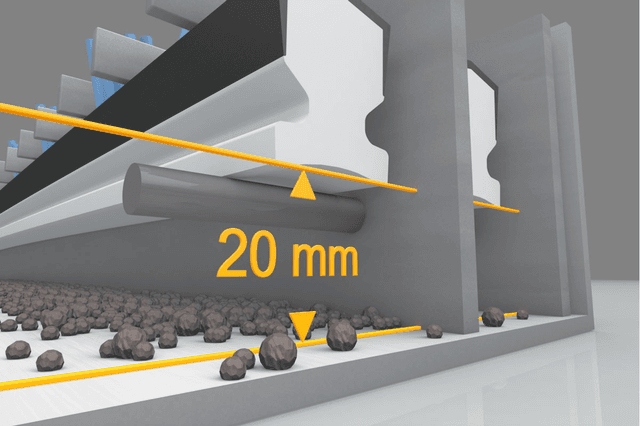

  • Extra dirt / water container [mm] 20

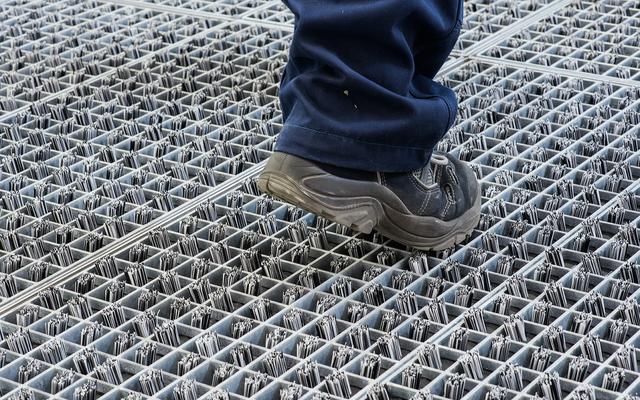

  • Optimum for sole cleaning

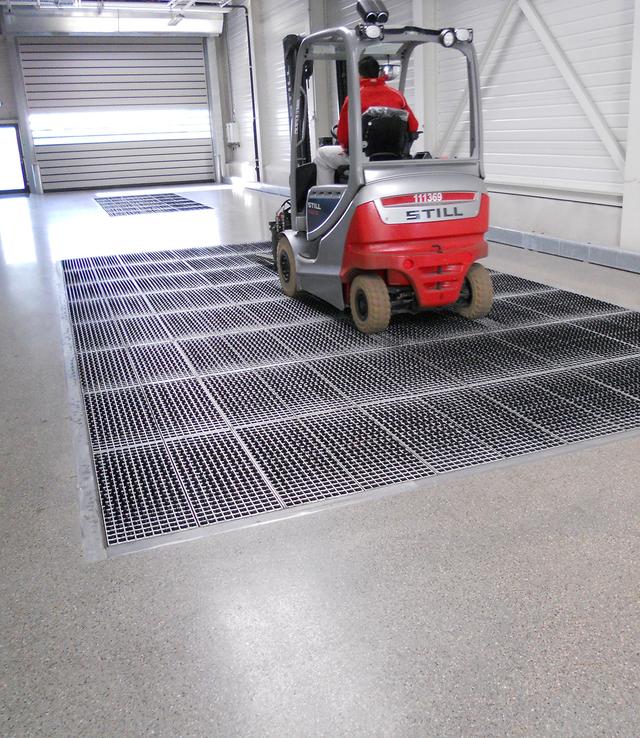

  • Maximum admissible vehicle weight [t] 30
  • Appropriate roller width [mm] ≥31
  • Suitable for above ground application
  • Steel (S 235 JR) grate
  • Stainless steel V2A (1.4301) tray

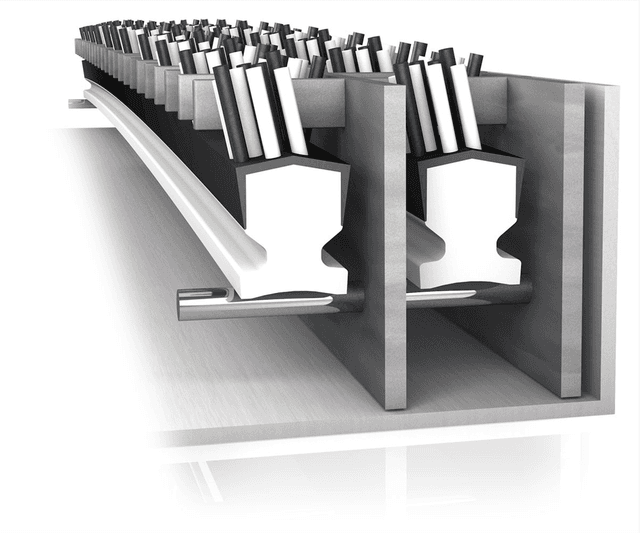

  • Brush strip per grate 10
  • Grates per segment 2
  • Number of segments W x L 1 x 1

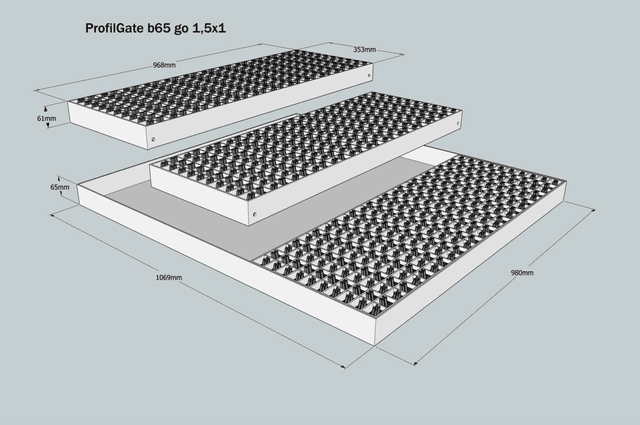

  • Tray size W x L [mm] 718 x 980
  • Number of grates x weight [kg] 2 x 29
