005-3000GO
ProfilGate® i55 Go dry sole cleaning system, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2024

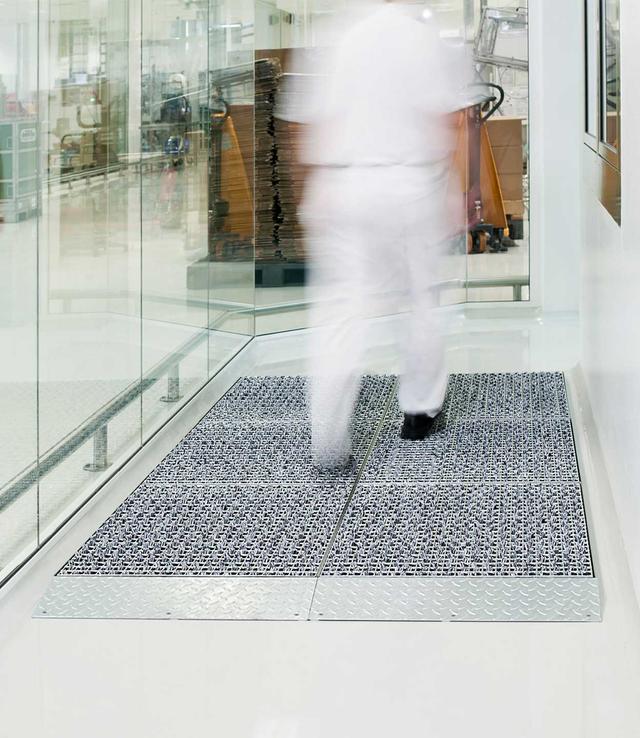

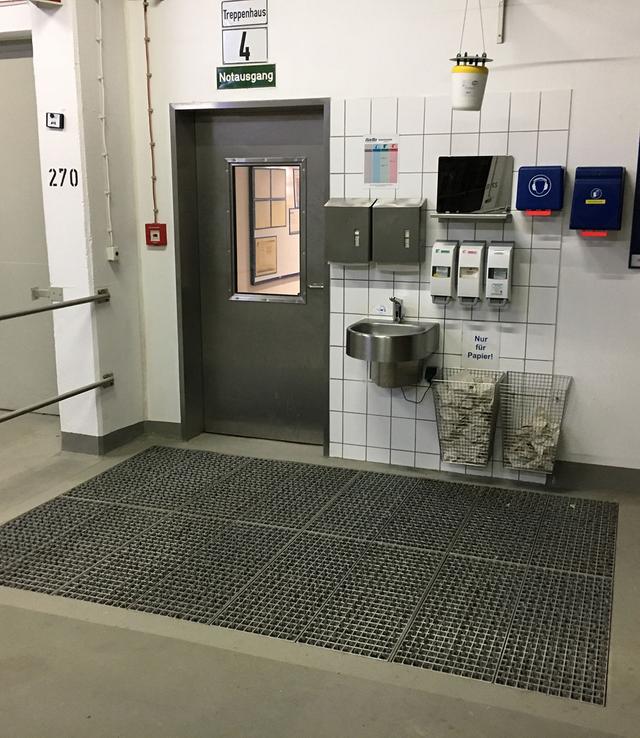

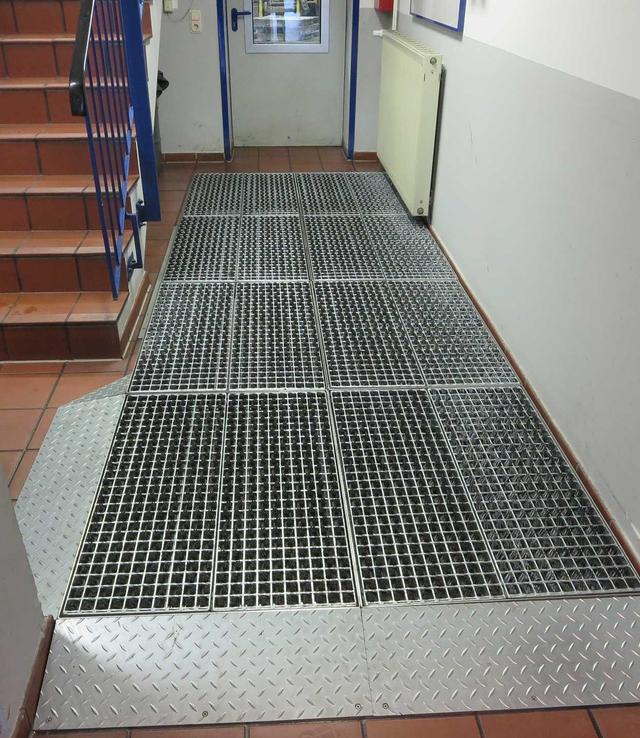

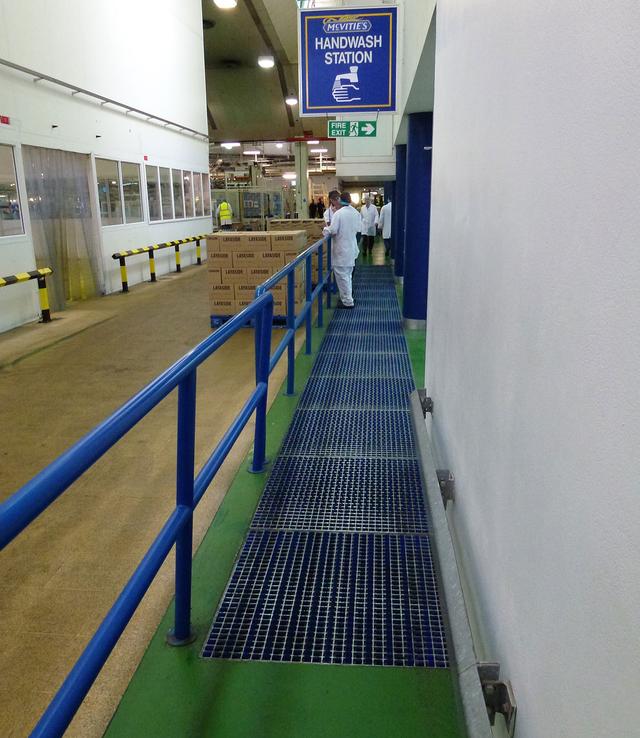

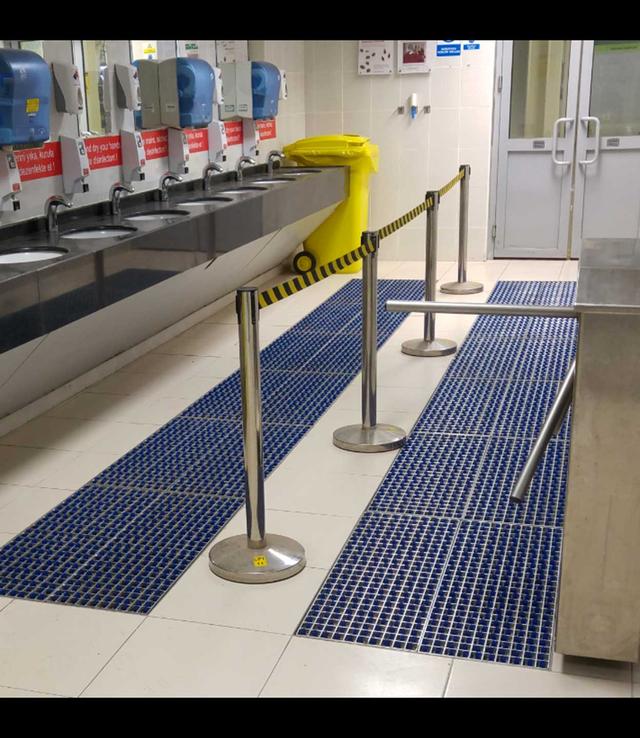

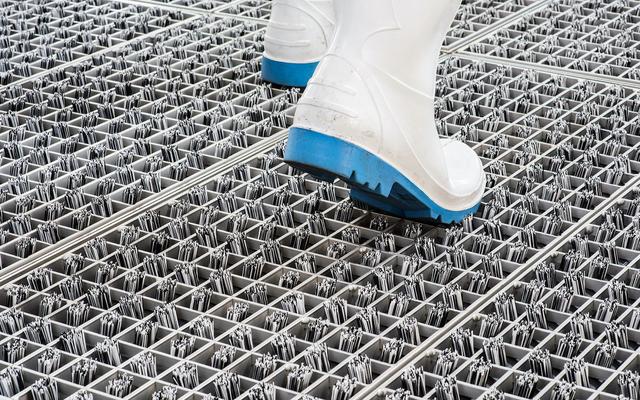

ProfilGate® i go Series is dry sole cleaning system completely made of stainless steel for sole cleaning. Ideal for entrances from outside areas due to the high dirt absorbing volume and wide-mesh, stainless-steel grates. Especially suitable for coarse contaminations.
Technical Data

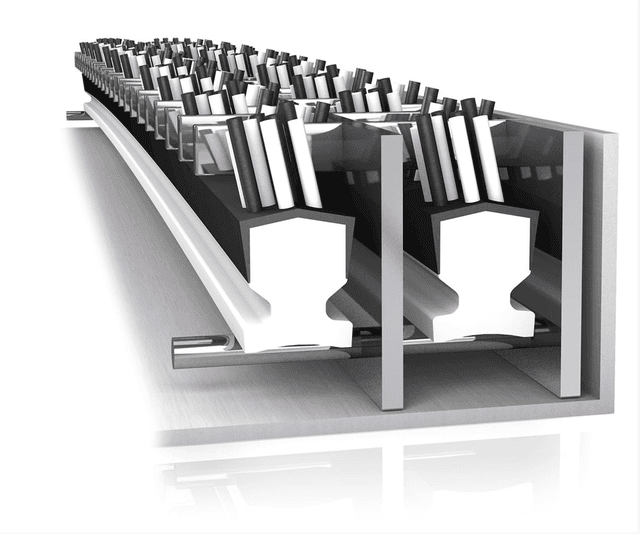

- Completely made of stainless steel for sole cleaning
- Ideal for entrances from outside areas
- Tray height [mm] 55

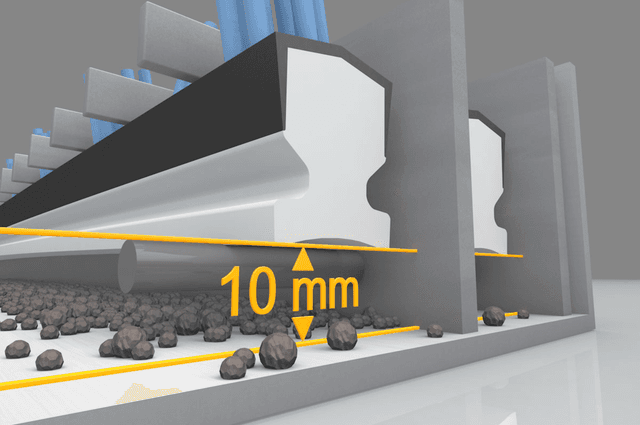

- Extra dirt / water container [mm] 10
- Optimum for sole cleaning
- Maximum admissible vehicle weight [t] 20
- Appropriate roller width [mm] ≥31
- Suitable for above ground application
- Stainless steel V2A (1.4301) grate
- Stainless steel V2A (1.4301) tray
- Brush strip per grate 10
- Grates per segment 2
- Number of segments W x L 1 x 1

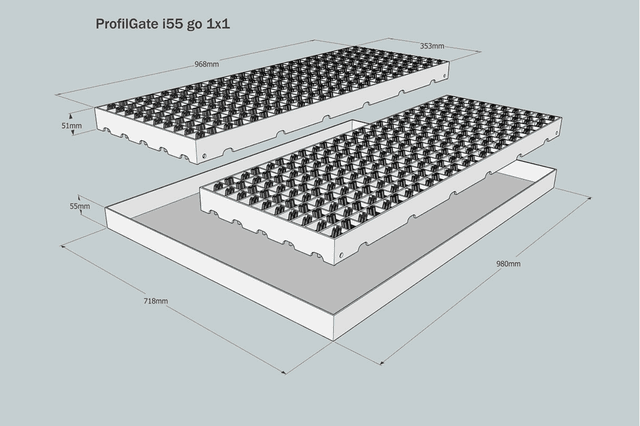

- Tray size W x L [mm] 718 x 980
- Number of grates x weight [kg] 2 x 26
Documents
- 005-3000GO__Changing Brush.pdf
- 005-3000GO__Installation in Ground.pdf
- 005-3000GO__Model Overview.pdf
- 005-3000GO__Maintenance.pdf
- 005-3000GO__Storing and Shipping.pdf
- 005-3000GO__Installation above Ground.pdf
- 005-3000GO__Operation Manual.pdf
- 005-3000GO__Catalogue.pdf
- 005-3000GO__Maintenance Plan.pdf
- 005-3000GO__Material for Installation.pdf
