005-2350GO

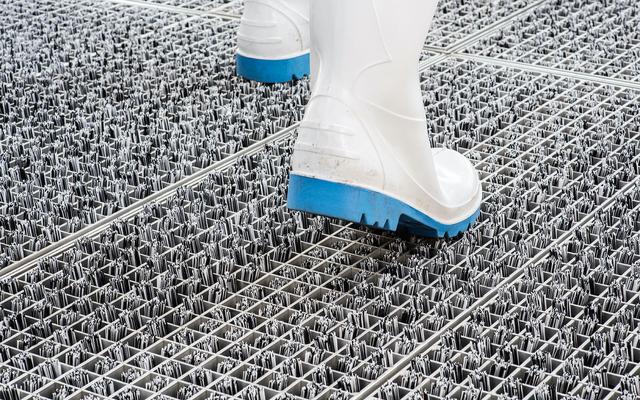

ProfilGate® sti55 Go dry sole cleaning system, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2024

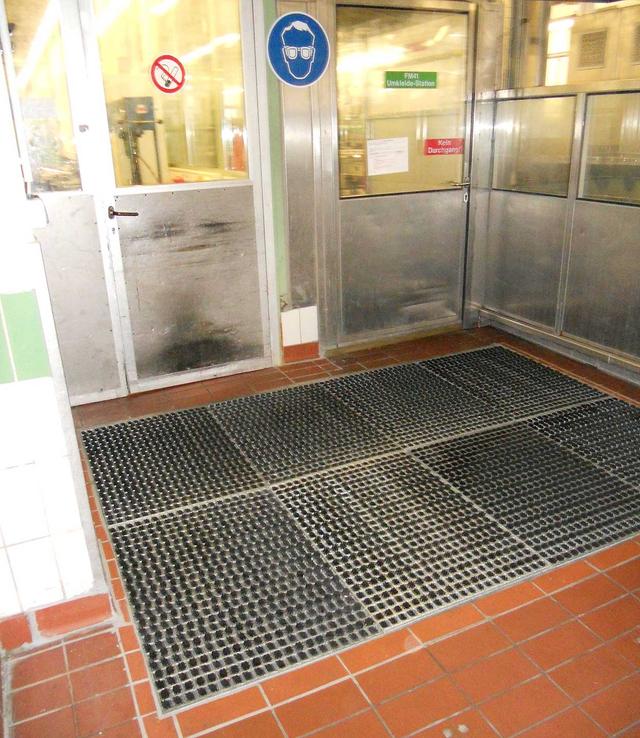

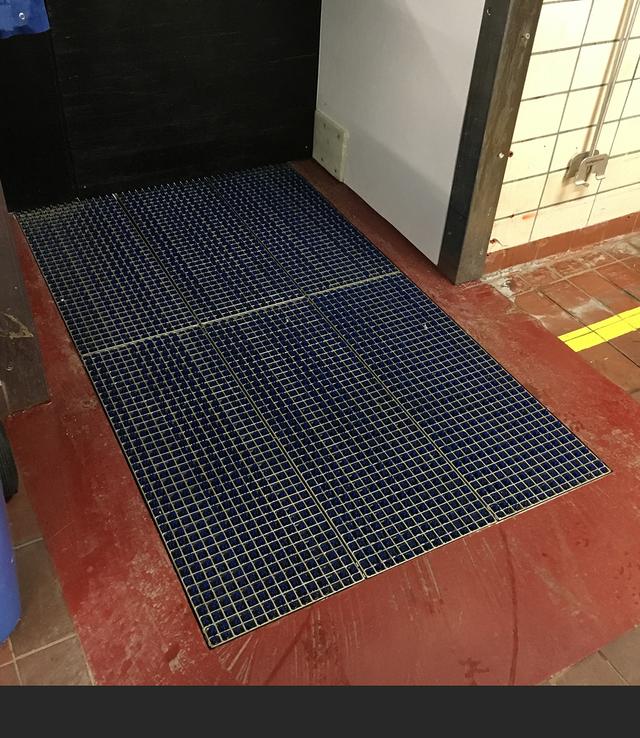

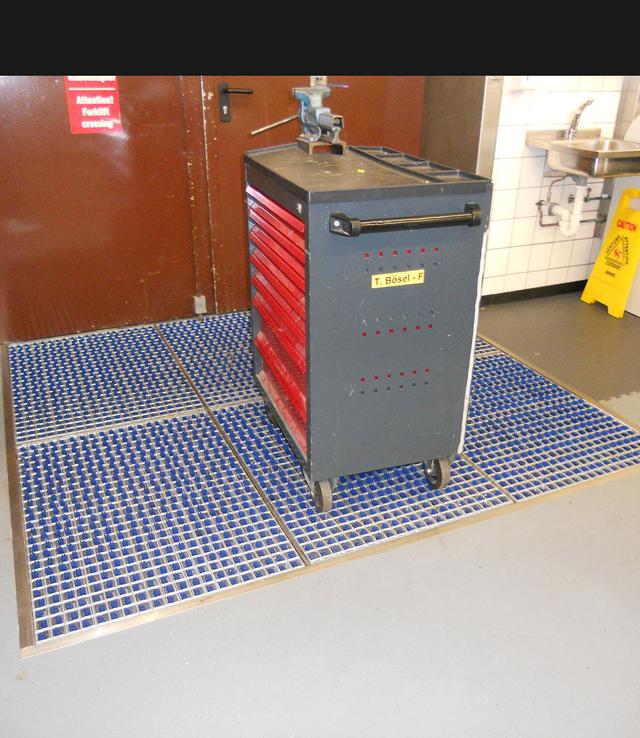

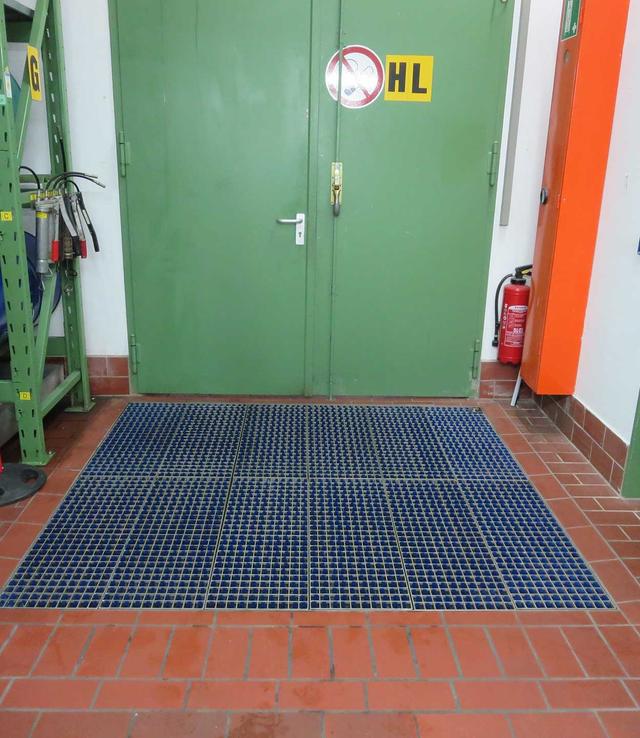

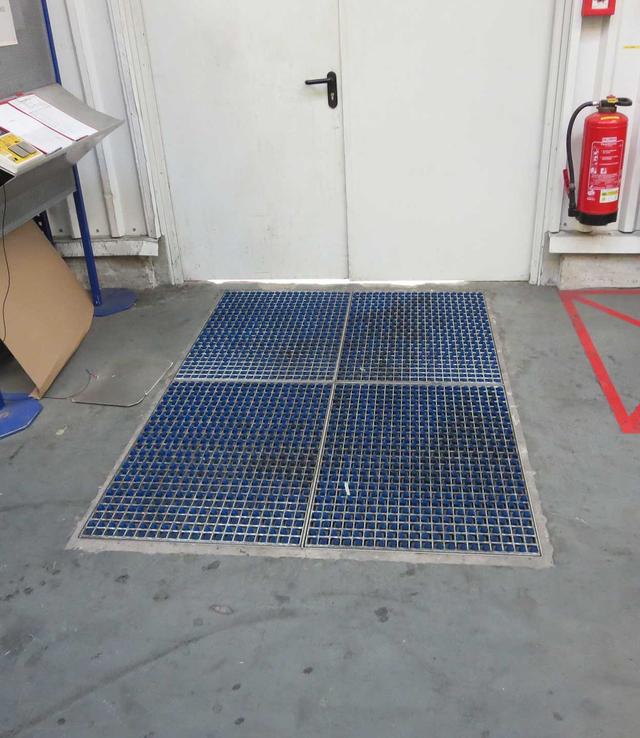

ProfilGate® sti go Series is dry sole cleaning system completely made of stainless steel for soles and narrow rollers. Due to the fine-mesh, stainless-steel grates, the modules are not only suitable for soles but also for carts and trolleys. Owing to the absorbing capacity of finer dirt particles, the units are ideal for entrances within the premises.
Technical Data
- Completely made of stainless steel for soles and narrow rollers
- Ideal for entrances within the premises
- Tray height [mm] 55

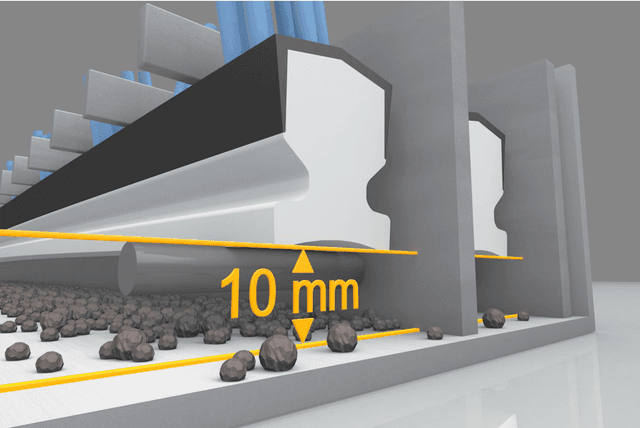

- Extra dirt / water container [mm] 10
- Optimum for sole cleaning
- Maximum admissible vehicle weight [t] 20
- Appropriate roller width [mm] ≥24
- Suitable for above ground application
- Stainless steel V2A (1.4301) grate
- Stainless steel V2A (1.4301) tray

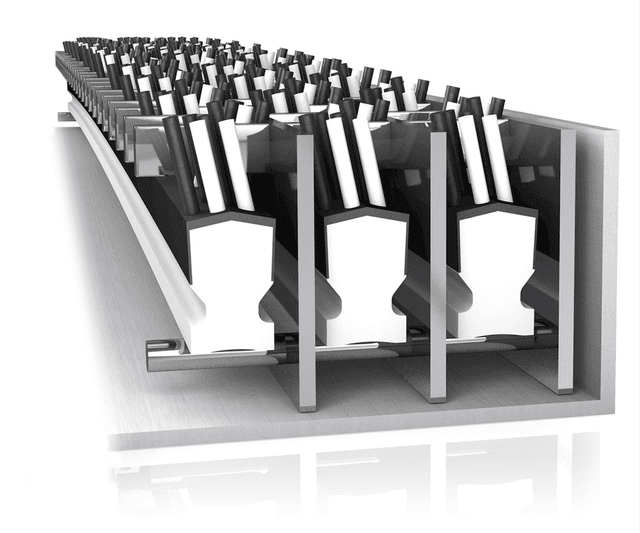

- Brush strip per grate 14
- Grates per segment 2
- Number of segments W x L 1 x 1

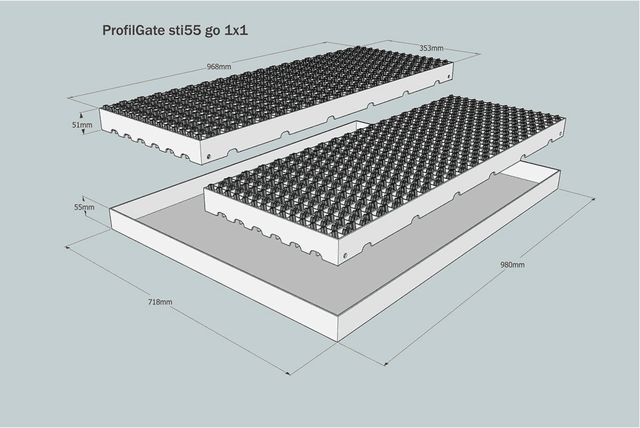

- Tray size W x L [mm] 718 x 980
- Number of grates x weight [kg] 2 x 27
Documents
- 005-2350GO__Installation above Ground.pdf
- 005-2350GO__Material for Installation.pdf
- 005-2350GO__Maintenance.pdf
- 005-2350GO__Catalogue.pdf
- 005-2350GO__Changing Brush.pdf
- 005-2350GO__Maintenance Plan.pdf
- 005-2350GO__Model Overview.pdf
- 005-2350GO__Storing and Shipping.pdf
- 005-2350GO__Operation Manual.pdf
- 005-2350GO__Installation in Ground.pdf
