005-7180B

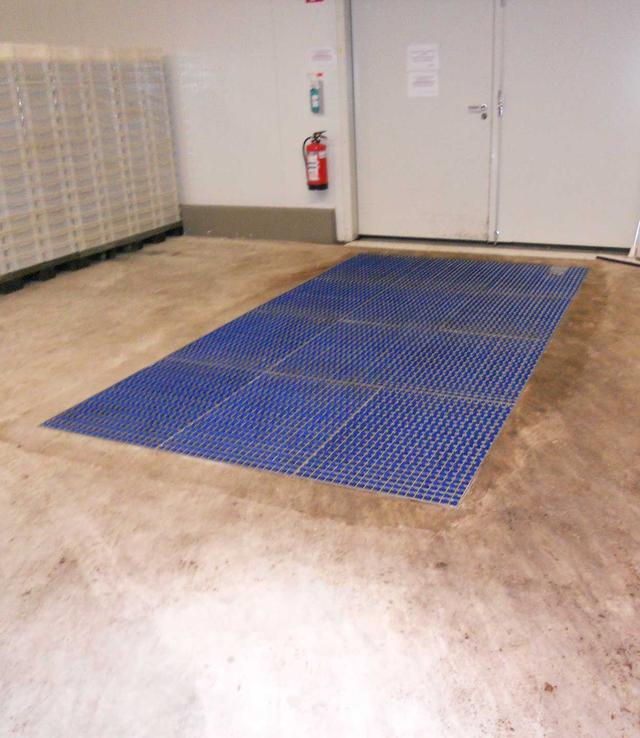

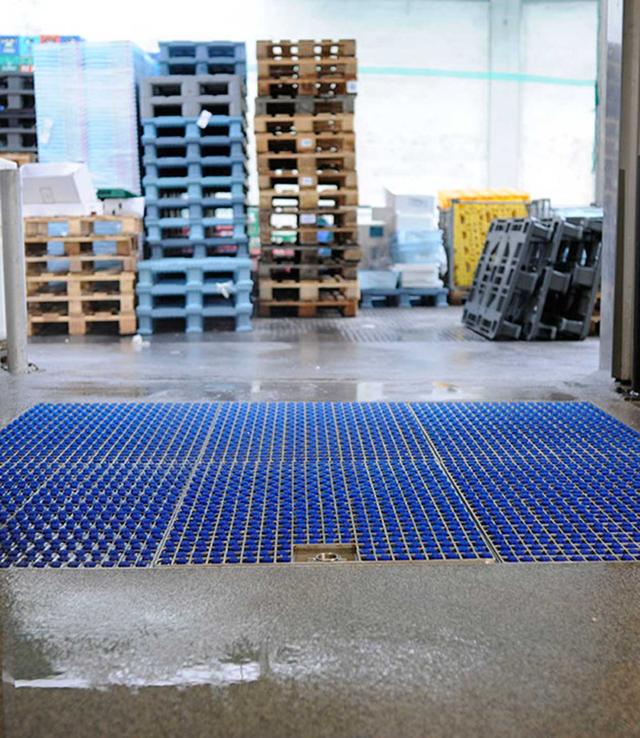

ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate

Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2024

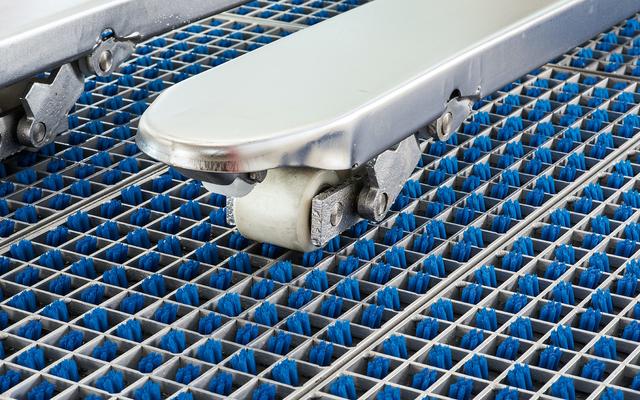

ProfilGate® i aqua Series is wet cleaning and disinfection system for bigger wheels. The wide-mesh stainless steel grate is ideal for driveways, which are driven on with broad rollers such as the ones of pallet jacks.
i55 aqua
i45 aqua
1.5 x 1.0
2.0 x 1.0
2.5 x 1.0
3.0 x 1.0
1.0 x 2.0
1.5 x 2.0
2.0 x 2.0
2.5 x 2.0
3.0 x 3.0
1.5 x 3.0
2.0 x 3.0
2.5 x 3.0
3.0 x 2.0
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
ProfilGate® i55 Aqua wet cleaning and disinfection system, WLH (mm) 1824 x 2963 x 55, 1 x V2A-Tray, 15 x Grate
Technical Data
  • Wet cleaning and disinfection for bigger wheels
  • Ideal for driveway with broad rollers
  • Recommended number of passages per day > 100
  • Tray height [mm] 55
  • Extra dirt / water container [mm] 10
  • Optimum for tire & sole cleaning
  • Maximum admissible vehicle weight [t] 20
  • Appropriate roller width [mm] ≥31
  • Stainless steel V2A (1.4301) grate
  • Stainless steel V2A (1.4301) tray
  • Brush strip per grate 10
  • Grates per segment 2
  • Number of segments W x L 2.5 x 3
  • Tray size W x L [mm] 1824 x 2963
  • Number of grates x weight [kg] 15 x 26
