005-5100B

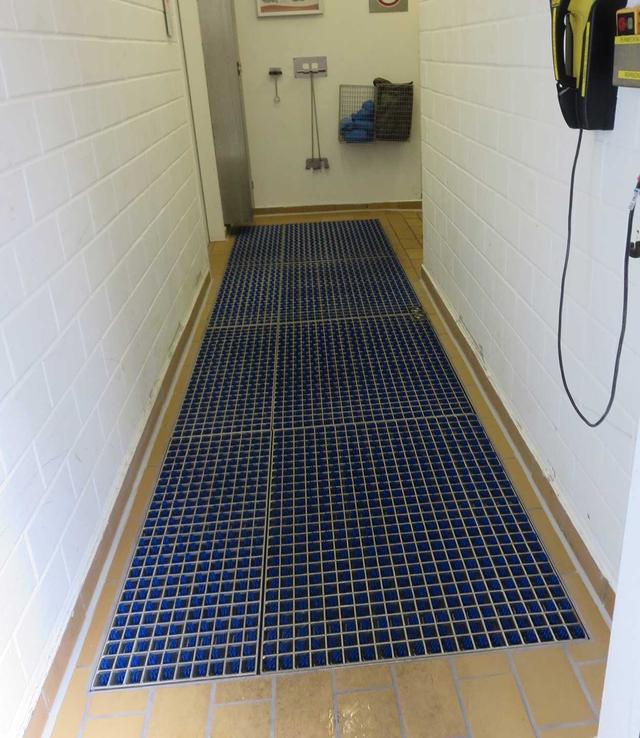

ProfilGate® i45 Aqua wet cleaning and disinfection system, WLH (mm) 1473 x 1997 x 45, 1 x V2A-Tray, 8 x Grate

Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
08 - 10 weeks
Validity Until
31.12.2023

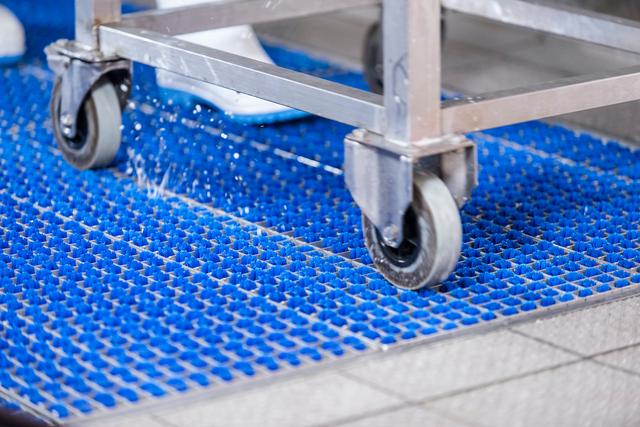

ProfilGate® i aqua Series is wet cleaning and disinfection system for bigger wheels. The wide-mesh stainless steel grate is ideal for driveways, which are driven on with broad rollers such as the ones of pallet jacks.
ProfilGate® i45 Aqua wet cleaning and disinfection system, WLH (mm) 1473 x 1997 x 45, 1 x V2A-Tray, 8 x Grate
Technical Data

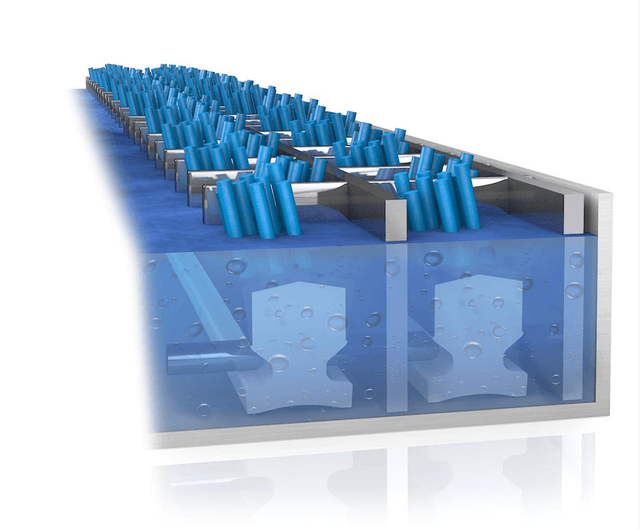

  • Wet cleaning and disinfection for bigger wheels

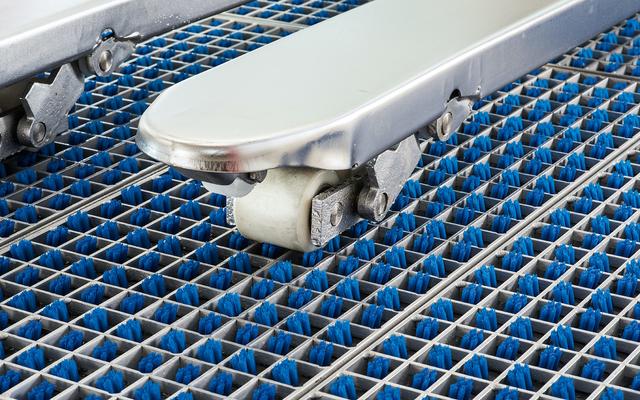

  • Ideal for driveway with broad rollers
  • Recommended number of passages per day < 100
  • Tray height [mm] 45
  • Optimum for tire & sole cleaning
  • Maximum admissible vehicle weight [t] 10
  • Appropriate roller width [mm] ≥31
  • Stainless steel V2A (1.4301) grate
  • Stainless steel V2A (1.4301) tray
  • Brush strip per grate 10
  • Grates per segment 2
  • Number of segments W x L 2 x 2

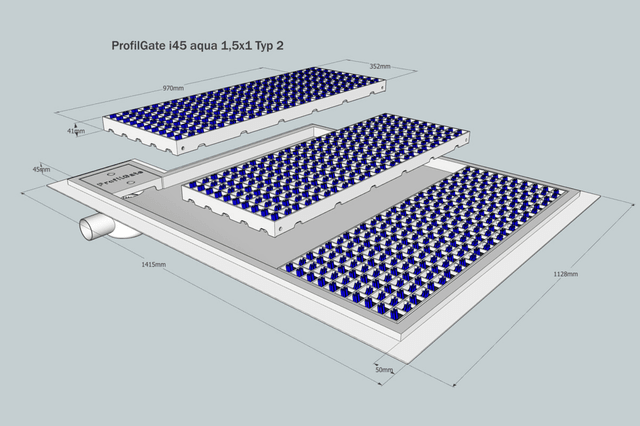

  • Tray size W x L [mm] 1473 x 1997
  • Number of grates x weight [kg] 8 x 21
