30204-002-33705

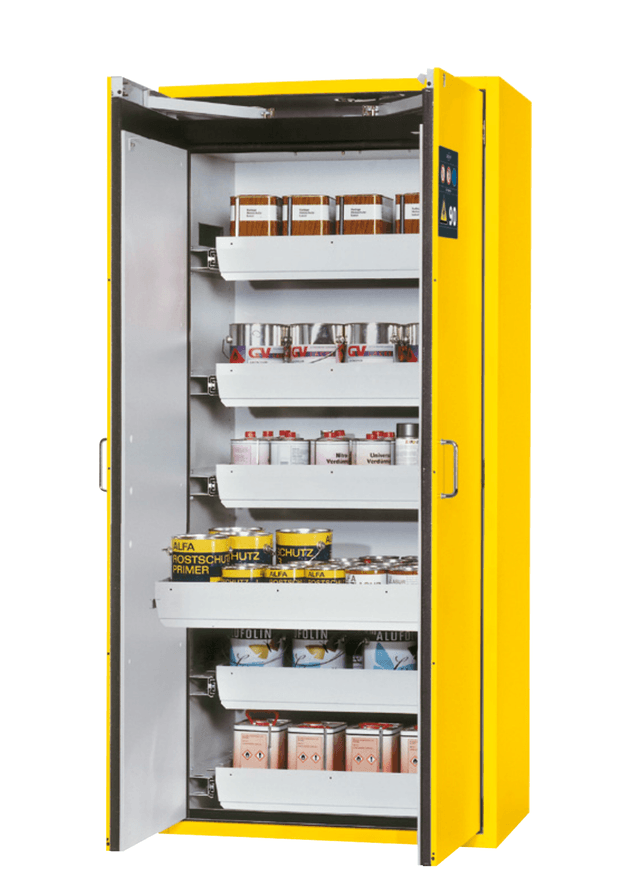

Asecos S-CLASSIC-90 model S90.196.090 cabinet, (mm) 896 x 616 x 1968, 3x shelf, 1x perforated insert, 1x bottom collecting sump; steel
Unit Price
On Request
Supplier
ASECOS
Country of origin
Germany
Unit of Measurement
EA
Delivery time
10 - 12 weeks
Validity Until
31.12.2024
Asecos S-LINE safety storage cabinets are for the storage of flammable hazardous materials - in different sizes and various interior equipment versions. The Asecos S-CLASSIC-90 cabinet is with classic wing doors and 90 minutes fire resistance.
Technical Data
- 90 minutes fire resistant
- Wing doors
- Integrated height adjusting aids

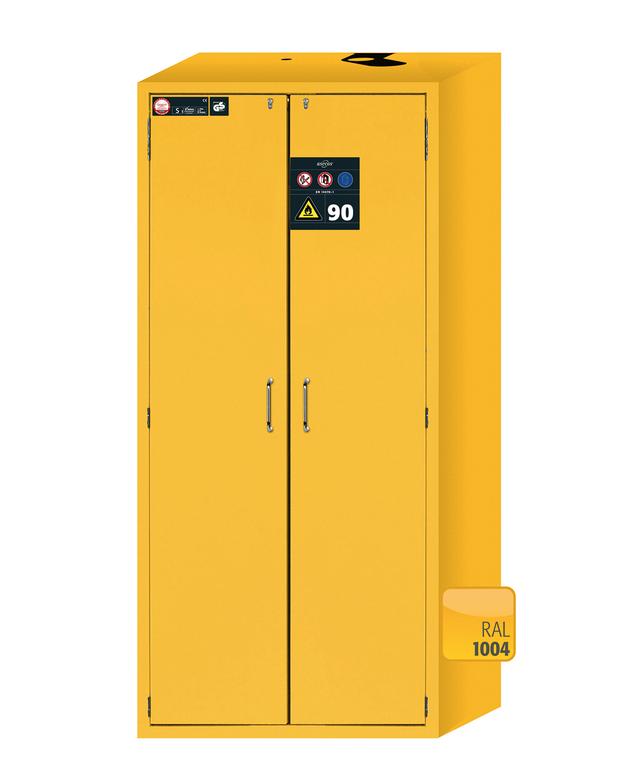

- Color yellow RAL 1004 & yellow RAL 1004
- External dimensions WDH [mm] 896 x 616 x 1968
- Internal dimensions WDH [mm] 750 x 524 x 1742
- Net weight configuration [kg] 371
- Minimum exhaust air quantity 10 times [m3/h] 7
- Differential pressure (10 times air change) [Pa] 5
- Differential pressure (10 times air change EK5/AK4) [Pa] 5
- Distributed load [kg/m2] 628
- Maximum load [kg] 600
- Entry width transport base [mm] 2 x 290
- Entry height transport base [mm] 100

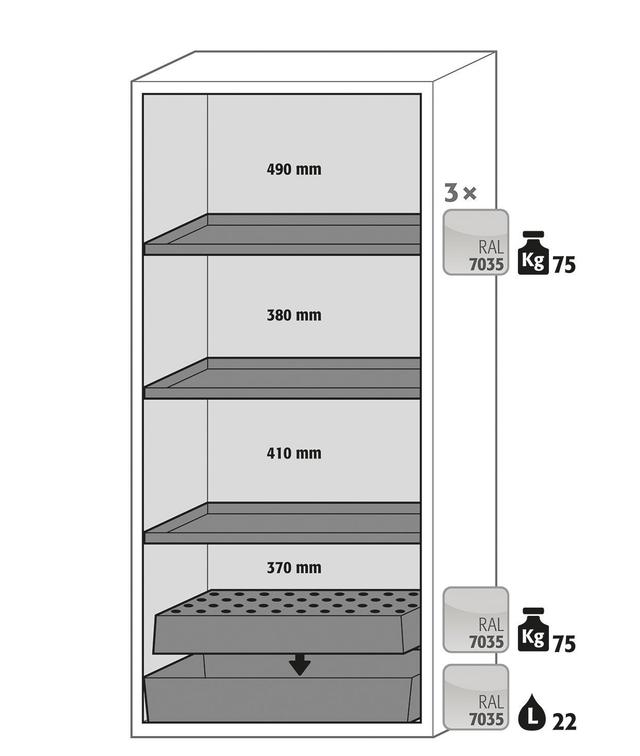

- Max. load of shelves [kg] 75
- Max. load of perforated insert [kg] 75
- Capacity of bottom collecting sump [L] 22
- CE Compliant
- GS Cerified
- DIN 16121/16122
