30495-047-30508

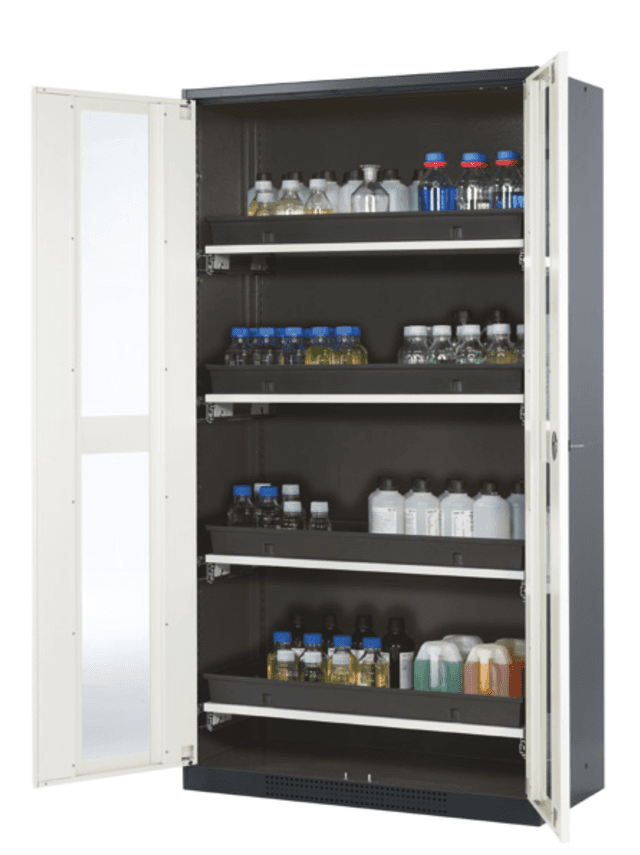

Asecos CS-CLASSIC model CS.195.105 cabinet, (mm) 1055 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel

Unit Price

On Request

Supplier

ASECOS

Country of origin

Germany

Unit of Measurement

EA

Delivery time

10 - 12 weeks

Validity Until

31.12.2024

Asecos C-LINE safety storage cabinets are for the storage of aggressive, non-flammable hazardous materials. The Asecos CS-CLASSIC is with classic wing doors in bi-color design.

Asecos CS-CLASSIC model CS.195.105 cabinet, (mm) 1055 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel

Asecos CS-CLASSIC model CS.195.105 cabinet, (mm) 1055 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel

Asecos CS-CLASSIC model CS.195.105 cabinet, (mm) 1055 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel

Asecos CS-CLASSIC model CS.195.105 cabinet, (mm) 1055 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel

Asecos CS-CLASSIC model CS.195.105 cabinet, (mm) 1055 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel

Asecos CS-CLASSIC model CS.195.105 cabinet, (mm) 1055 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel

Asecos CS-CLASSIC model CS.195.105 cabinet, (mm) 1055 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel

Technical Data

Wing doors
Integrated height adjusting aids

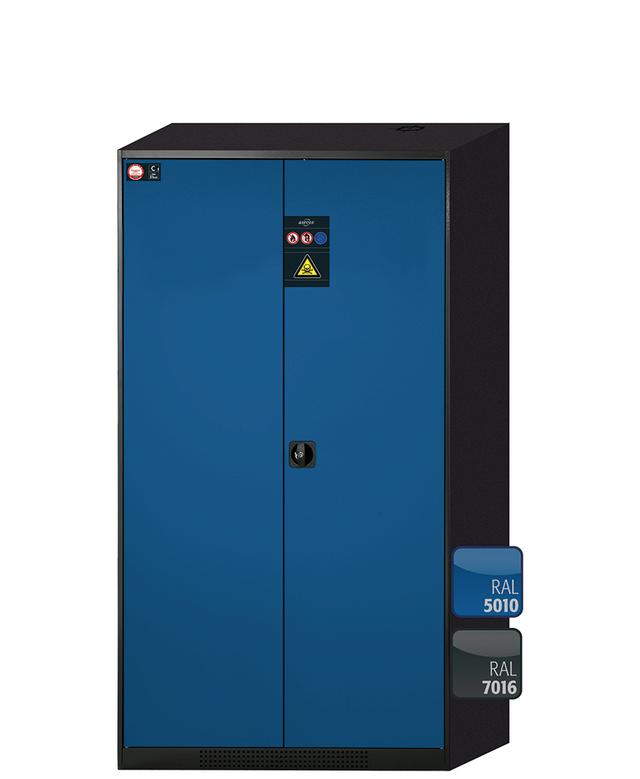

Color grey RAL 7016 & blue RAL 5010
External dimensions WDH [mm] 1055 x 520 x 1950
Internal dimensions WDH [mm] 996 x 493 x 1835
Net weight configuration [kg] 110
Minimum exhaust air quantity 10 times [m3/h] 9
Differential pressure (10 times air change) [Pa] 2
Distributed load [kg/m2] 421
Maximum load [kg] 600

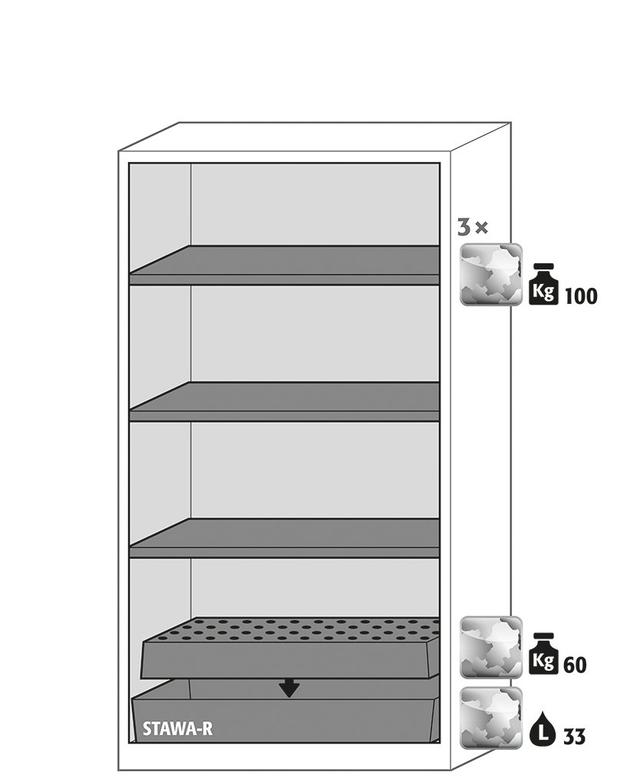

Max. load of shelves [kg] 100
Max. load of perforated insert [kg] 60
Capacity of bottom collecting sump [L] 33
DIN 16121/16122
