30532-041-30542

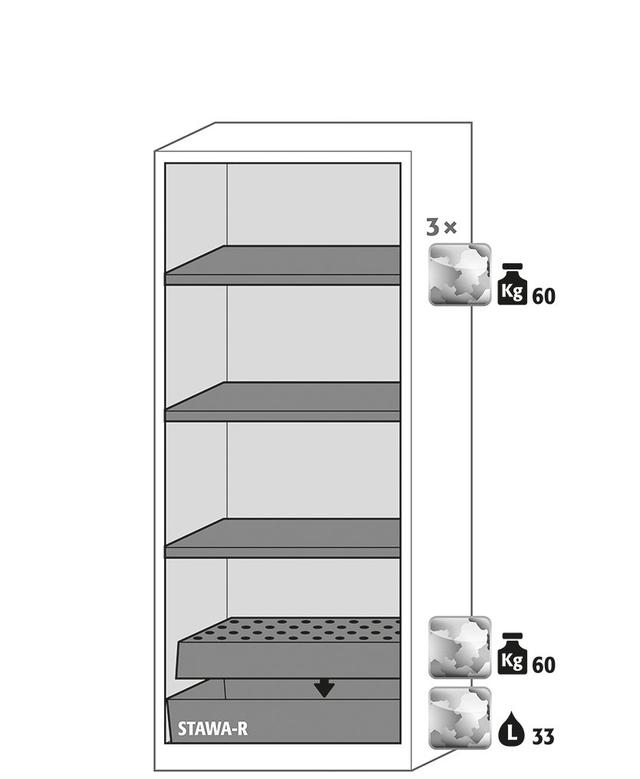

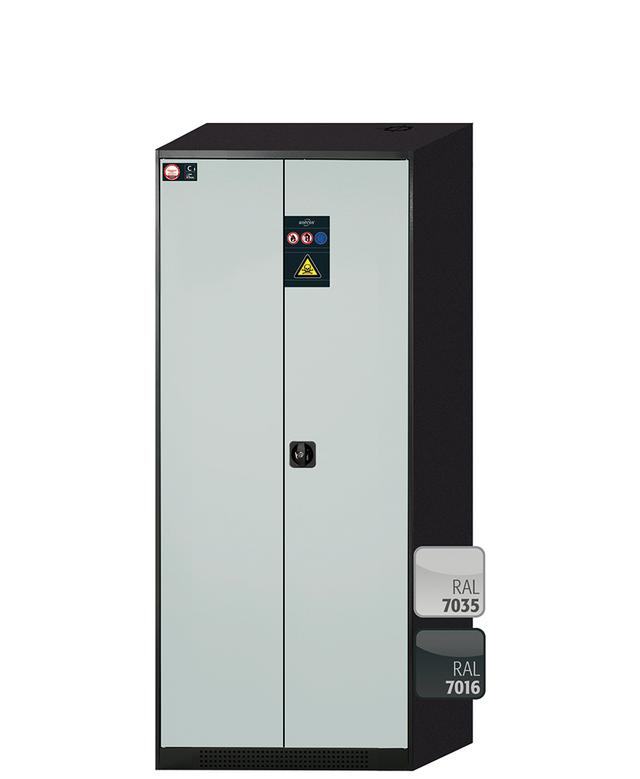

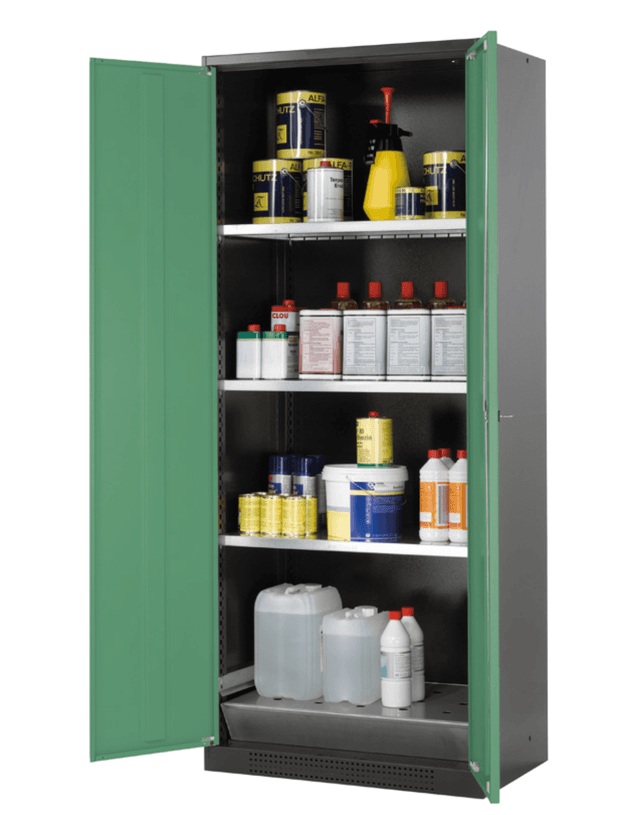

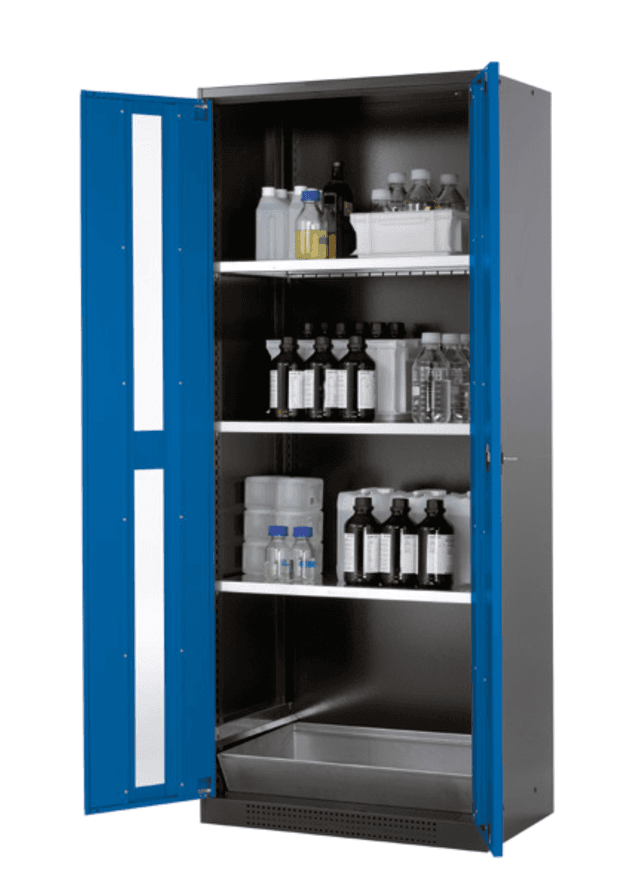

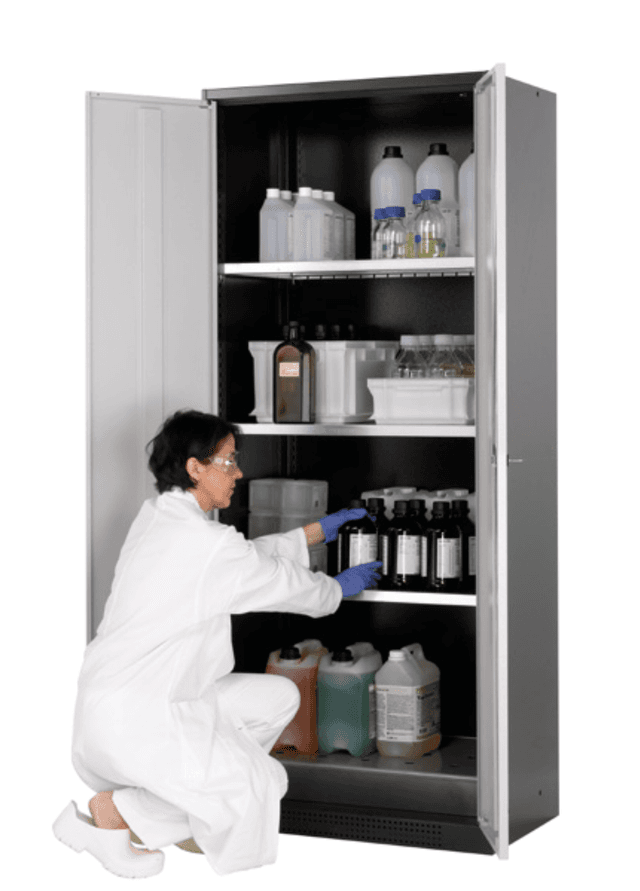

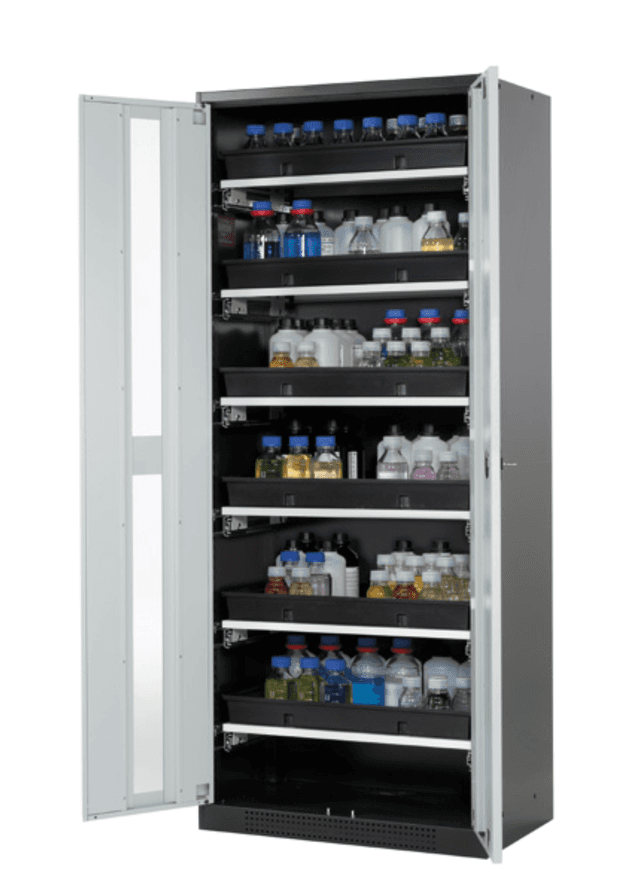

Asecos CS-CLASSIC model CS.195.081 cabinet, (mm) 810 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel

Unit Price
On Request
Supplier
ASECOS
Country of origin
Germany
Unit of Measurement
EA
Delivery time
10 - 12 weeks
Validity Until
31.12.2024
Asecos C-LINE safety storage cabinets are for the storage of aggressive, non-flammable hazardous materials. The Asecos CS-CLASSIC is with classic wing doors in bi-color design.
yellow
grey
red
blue
green
white
w-105cm
w-081cm
w-054cm
Asecos CS-CLASSIC model CS.195.081 cabinet, (mm) 810 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel
Asecos CS-CLASSIC model CS.195.081 cabinet, (mm) 810 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel
Asecos CS-CLASSIC model CS.195.081 cabinet, (mm) 810 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel
Asecos CS-CLASSIC model CS.195.081 cabinet, (mm) 810 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel
Asecos CS-CLASSIC model CS.195.081 cabinet, (mm) 810 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel
Asecos CS-CLASSIC model CS.195.081 cabinet, (mm) 810 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel
Asecos CS-CLASSIC model CS.195.081 cabinet, (mm) 810 x 520 x 1950, 3x shelf, 1x perforated insert, 1x bottom collecting sump; galvanised steel
Technical Data
  • Wing doors
  • Integrated height adjusting aids
  • Color grey RAL 7016 & grey RAL 7035
  • External dimensions WDH [mm] 810 x 520 x 1950
  • Internal dimensions WDH [mm] 751 x 493 x 183
  • Net weight configuration [kg] 94
  • Minimum exhaust air quantity 10 times [m3/h] 7
  • Differential pressure (10 times air change) [Pa]
  • Distributed load [kg/m2] 543
  • Maximum load [kg] 600
  • Max. load of shelves [kg] 60
  • Max. load of perforated insert [kg] 60
  • Capacity of bottom collecting sump [L] 33
  • DIN 16121/16122
