30641-001-30642

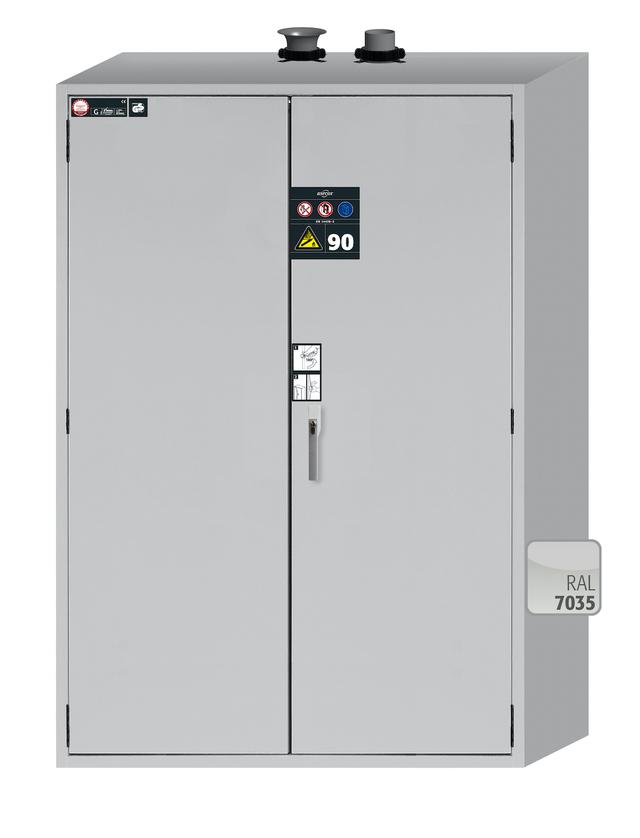

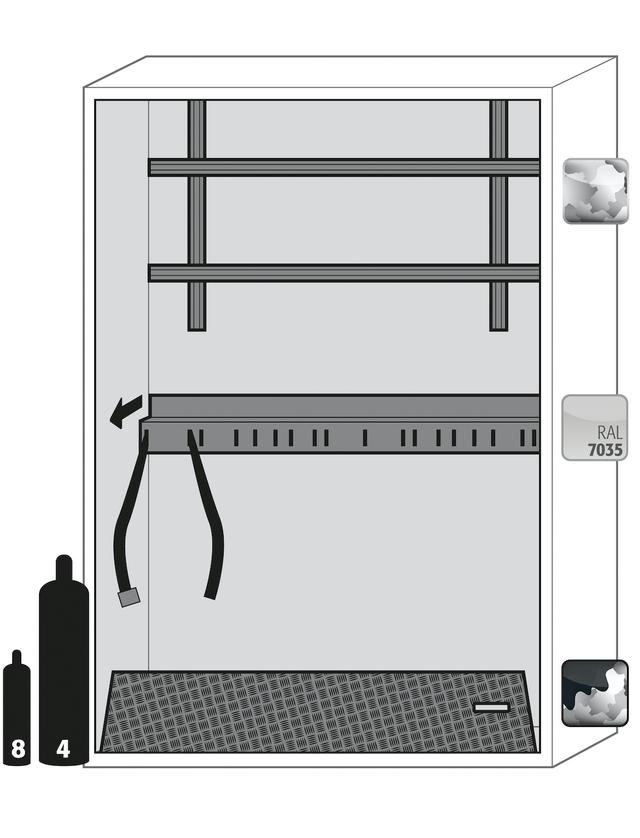

Asecos G-ULTIMATE-90 model G90.205.140 cabinet, (mm) 1398 x 615 x 2050, 1x rolling ramp, 1x cylinder retainer, 1x mounting rail; galvanised steel

Unit Price
On Request
Supplier
ASECOS
Country of origin
Germany
Unit of Measurement
EA
Delivery time
10 - 12 weeks
Validity Until
31.12.2024

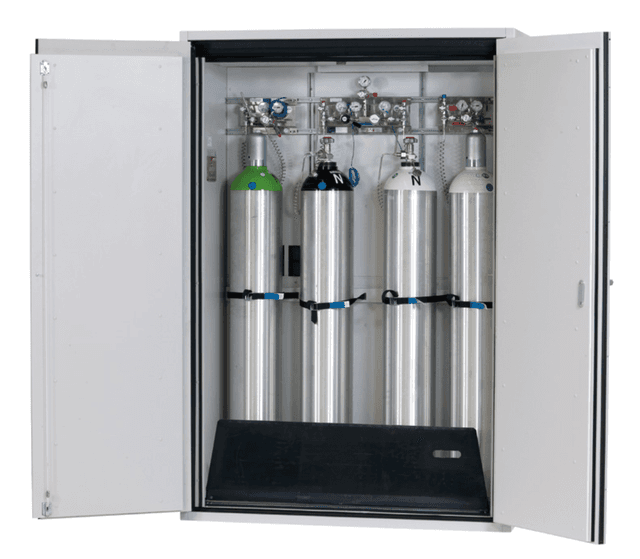

Asecos G-LINE safety storage cabinets are for the storage of gas cylinders in working areas (Type G90/G30) and in outdoor areas (G-OD/G-PG). These models offer maximum safety when storing gas cylinders. The Asecos G-ULTIMATE-90 is with classic wing doors and 90 minutes fire resistance.
Asecos G-ULTIMATE-90 model G90.205.140 cabinet, (mm) 1398 x 615 x 2050,  1x rolling ramp, 1x cylinder retainer, 1x mounting rail; galvanised steel
Asecos G-ULTIMATE-90 model G90.205.140 cabinet, (mm) 1398 x 615 x 2050,  1x rolling ramp, 1x cylinder retainer, 1x mounting rail; galvanised steel
Asecos G-ULTIMATE-90 model G90.205.140 cabinet, (mm) 1398 x 615 x 2050,  1x rolling ramp, 1x cylinder retainer, 1x mounting rail; galvanised steel
Asecos G-ULTIMATE-90 model G90.205.140 cabinet, (mm) 1398 x 615 x 2050,  1x rolling ramp, 1x cylinder retainer, 1x mounting rail; galvanised steel
Technical Data
  • 90 minutes fire resistant
  • Wing doors
  • Integrated height adjusting aids
  • Color grey RAL 7035 & grey RAL 7035
  • External dimensions WDH [mm] 1398 x 615 x 2050
  • Internal dimensions WDH [mm] 1245 x 400 x 1858
  • Net weight configuration [kg] 707.5
  • Minimum exhaust air quantity 10 times [m3/h] 9
  • Differential pressure (10 times air change) [Pa] 5
  • Differential pressure (10 times air change EK5/AK4) [Pa] 5
  • Distributed load [kg/m2] 571
  • Maximum load [kg] 600
  • CE Compliant
  • GS Cerified
  • DIN 16121/16122
