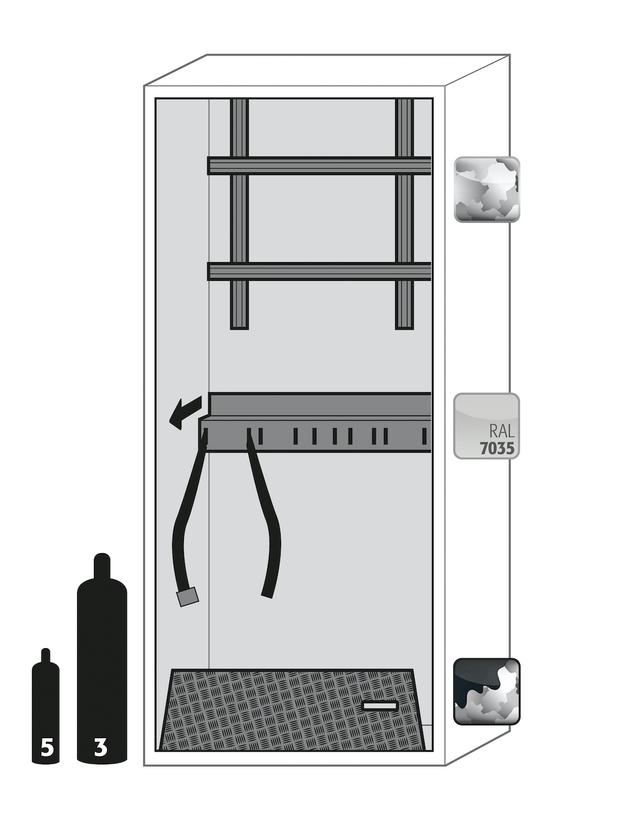

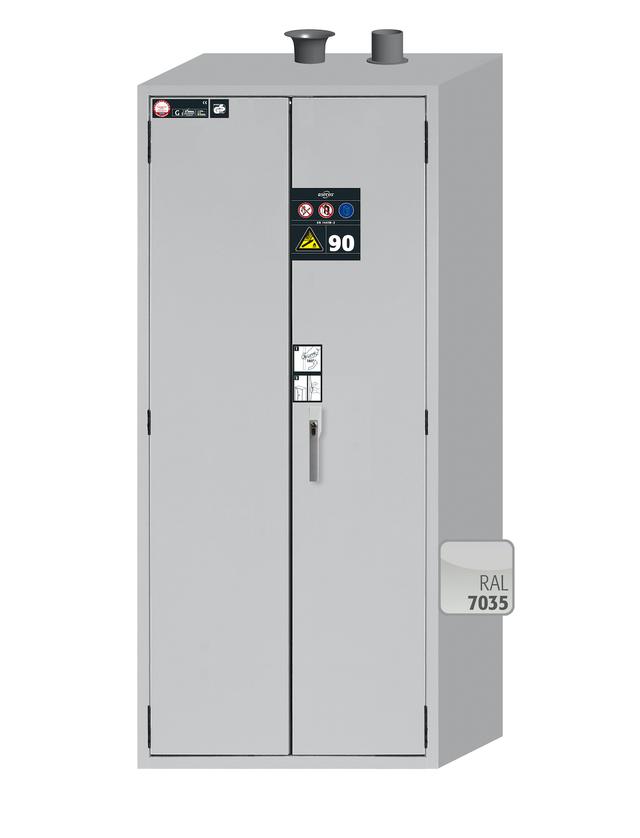

Asecos G-ULTIMATE-90 model G90.205.090 cabinet, (mm) 898 x 615 x 2050, 1x rolling ramp, 1x cylinder retainer, 1x mounting rail; galvanised steel

Name: Asecos G-ULTIMATE-90 model G90.205.090 cabinet, (mm) 898 x 615 x 2050, 1x rolling ramp, 1x cylinder retainer, 1x mounting rail; galvanised steel
Brand: ASECOS

Unit Price

On Request

Supplier

ASECOS

Country of origin

Germany

Unit of Measurement

Delivery time

10 - 12 weeks

Validity Until

31.12.2024

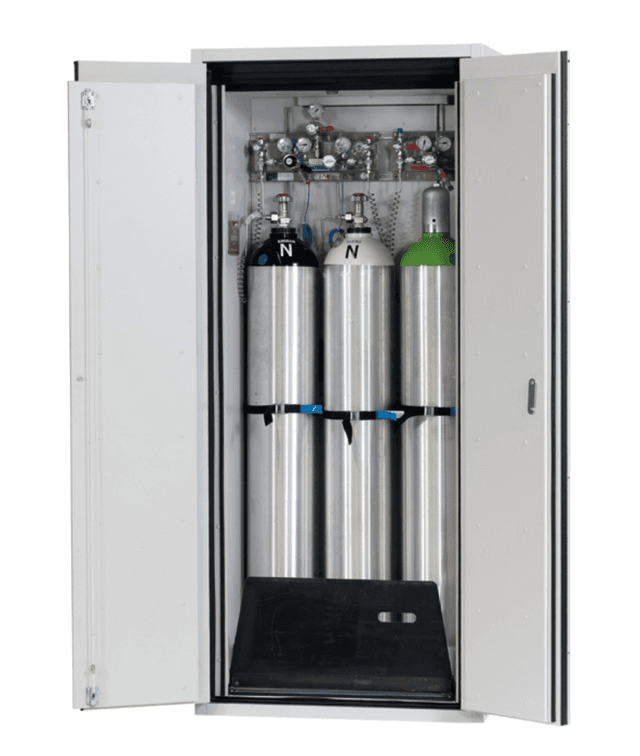

Asecos G-LINE safety storage cabinets are for the storage of gas cylinders in working areas (Type G90/G30) and in outdoor areas (G-OD/G-PG). These models offer maximum safety when storing gas cylinders. The Asecos G-ULTIMATE-90 is with classic wing doors and 90 minutes fire resistance.

Technical Data

90 minutes fire resistant
Wing doors
Integrated height adjusting aids
Color grey RAL 7035 & grey RAL 7035
External dimensions WDH [mm] 898 x 615 x 2050
Internal dimensions WDH [mm] 745 x 425 x 1858
Net weight configuration [kg] 497.5
Minimum exhaust air quantity 10 times [m3/h] 6
Differential pressure (10 times air change) [Pa] 5
Differential pressure (10 times air change EK5/AK4) [Pa] 5
Distributed load [kg/m2] 752
Maximum load [kg] 600
CE Compliant
GS Cerified
DIN 16121/16122
