30001-047-33635

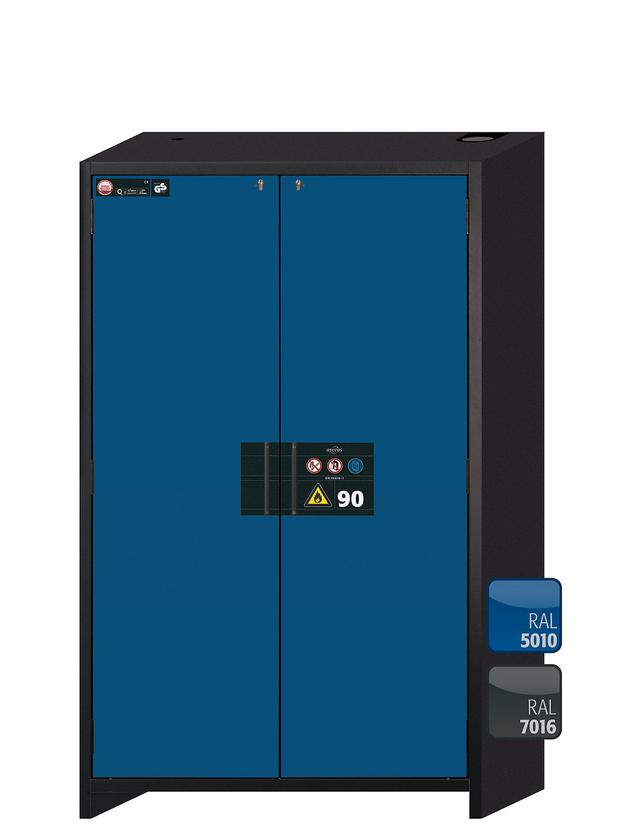

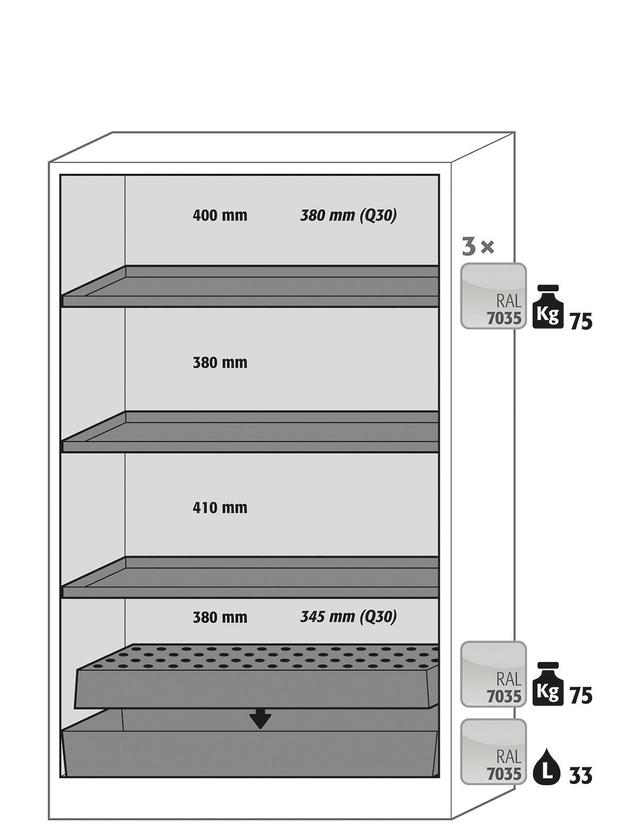

Asecos Q-CLASSIC-90 model Q90.195.120 cabinet, (mm) 1193 x 615 x 1953, 3x shelf, 1x perforated insert, 1x bottom collecting sump; steel

Unit Price

On Request

Supplier

ASECOS

Country of origin

Germany

Unit of Measurement

Delivery time

10 - 12 weeks

Validity Until

31.12.2024

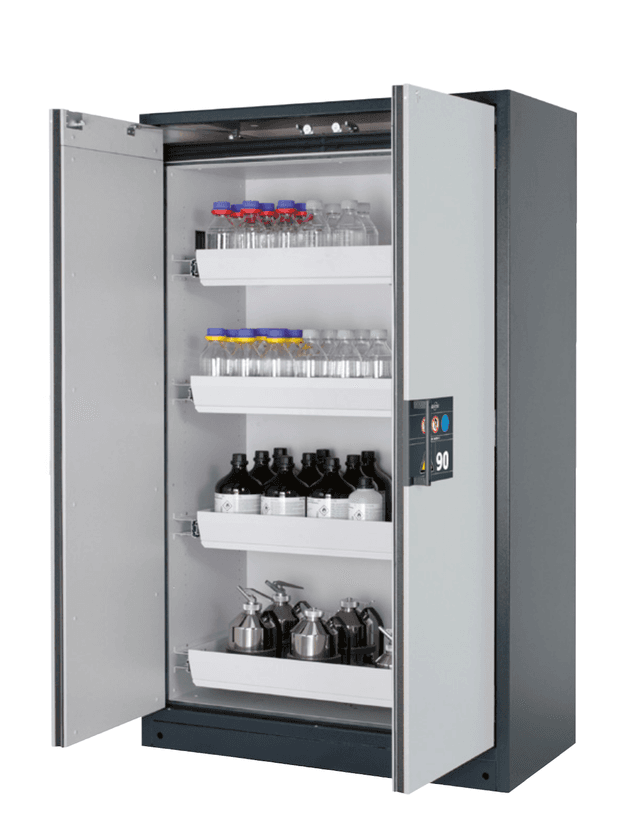

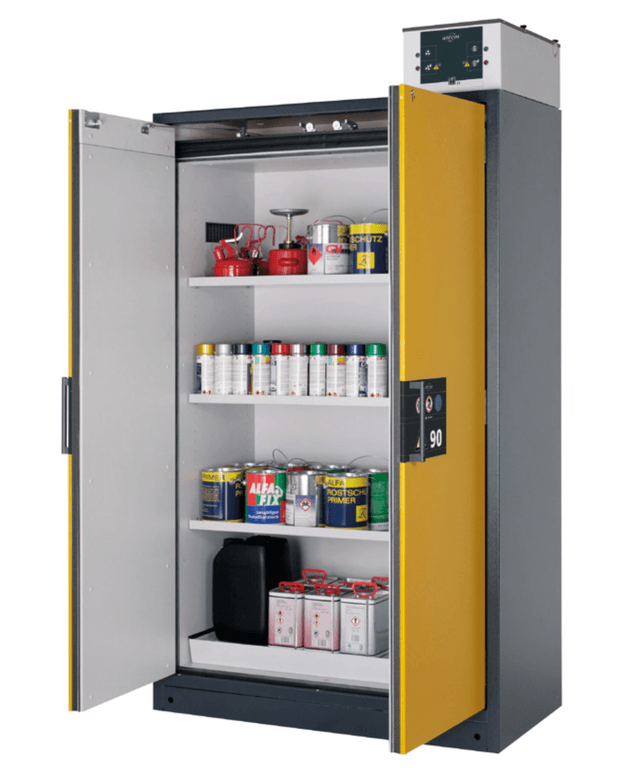

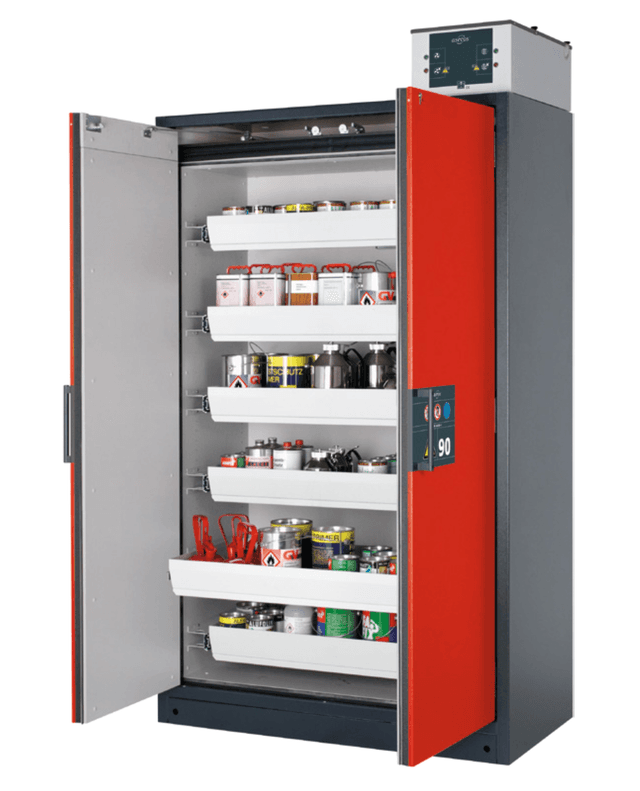

Asecos Q-LINE safety storage cabinets are for the storage of flammable hazardous substances with integrated transport base. The Asecos Q-CLASSIC-90 cabinet is with classic wing doors and 90 minutes fire resistance.

Technical Data

90 minutes fire resistant
Wing doors
Integrated height adjusting aids
Color grey RAL 7016 & blue RAL 5010
External dimensions WDH [mm] 1193 x 615 x 1953
Internal dimensions WDH [mm] 1050 x 522 x 1647
Net weight configuration [kg] 474.5
Minimum exhaust air quantity 10 times [m3/h] 9
Differential pressure (10 times air change) [Pa] 5
Differential pressure (10 times air change EK5/AK4) [Pa] 5
Distributed load [kg/m2] 531
Maximum load [kg] 600
Entry width transport base [mm] 1120
Entry height transport base [mm] 90
Max. load of shelves [kg] 75
Max. load of perforated insert [kg] 75
Capacity of bottom collecting sump [L] 33
CE Compliant
GS Cerified
DIN 16121/16122
