AD06FHW

AdvanceLab Walk-In Fume Hood, ducted, (mm) 1820 x 920 x 2420

Name: AdvanceLab Walk-In Fume Hood, ducted, (mm) 1820 x 920 x 2420
Brand: ADVANCELAB

Unit Price

On Request

Supplier

ADVANCELAB

Country of origin

Malaysia

Unit of Measurement

LOT

Delivery time

8 - 10 weeks

Validity Until

31.12.2024

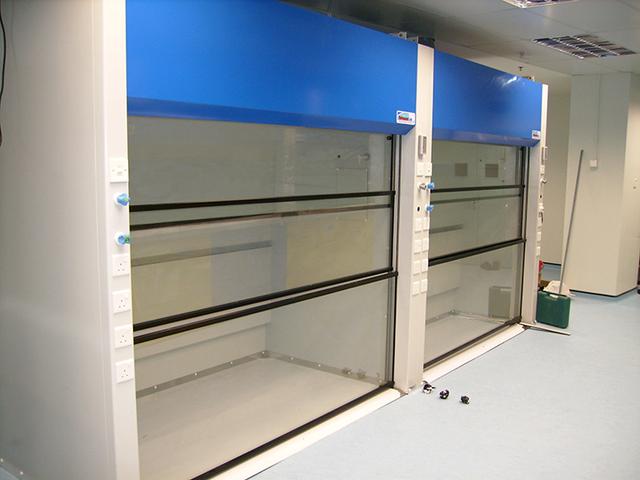

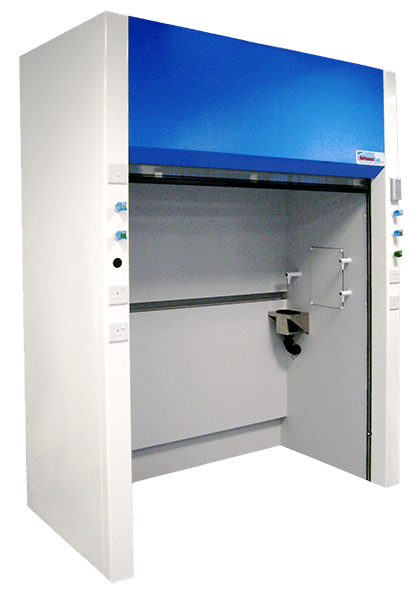

AdvanceLab Walk-in Fume Hood is appropriate for putting stand-alone machine. Fumehood when sized with an appropriate chemical resistant centrifugal exhaust fan will protect laboratory staff from exposure to harmful fumes.

Technical Data

Dimension WDH [mm] 1820 x 920 x 2420
Industrial electrogalvanised steel construction
Heavy Epoxy powder coated finish
Phenolic resin inner liner and baffle
Purpose built light box external to air flow
Electrical light ballast for flicker free usage
Counterbalanced sash assembly for long lifespan
Tempered glass with Easygrip® hand rail
Double layered side wall with access panels
Airflow compliant with ASHRAE 110-95
Compliant BS 7258, EN 14175 if order Controller
Design velocity 0.5m/s at 500mm sash height
Extract volume at 500mm height sash opening [CMH] 1836
Stand-by duct collar diameter [mm] 300
