AD04FH-DC

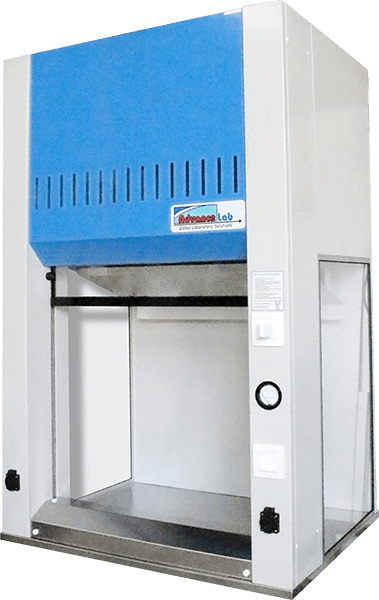

AdvanceLab Ductless Fume Hood, (mm) 1220 x 750 x 2420
Unit Price
On Request
Supplier
ADVANCELAB
Country of origin
Malaysia
Unit of Measurement
LOT
Delivery time
8 - 10 weeks
Validity Until
31.12.2024
AdvanceLab Ductless Fume Hood is ideal for applications where only solvents are used. Activated carbon filters are for your wide range solvents.
Technical Data
- Dimension WDH [mm] 1220 x 750 x 2420
- Base cabinet supplied as standard
- Industrial electrogalvanised steel construction
- Heavy Epoxy powder coated finish
- Light grey 16mm thk Phenolic resin worktop
- Purpose built light box external to air flow
- Electrical light ballast for flicker free usage
- Counterbalanced sash assembly for long lifespan
- Tempered glass with Easygrip® hand rail
- Clear side panels for better visibility
- Stainless steel SS304 airfoil maximizing air sweep
- Airflow compliant with ASHRAE 110-95
- Design velocity 0.5m/s at 500mm sash height
- Extract volume at 500mm height sash opening [CMH] 900
