AD04FH

AdvanceLab General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420

Unit Price
On Request
Supplier
ADVANCELAB
Country of origin
Malaysia
Unit of Measurement
LOT
Delivery time
8 - 10 weeks
Validity Until
31.12.2024

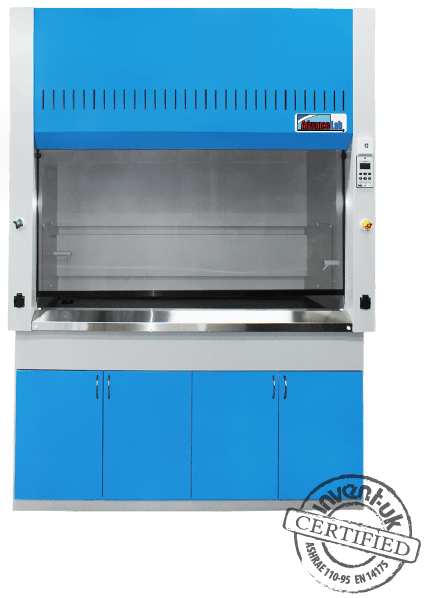

AdvanceLab General Purpose Fume Hood is for customers' daily applications. Fumehood when sized with an appropriate chemical resistant centrifugal exhaust fan will protect laboratory staff from exposure to harmful fumes.

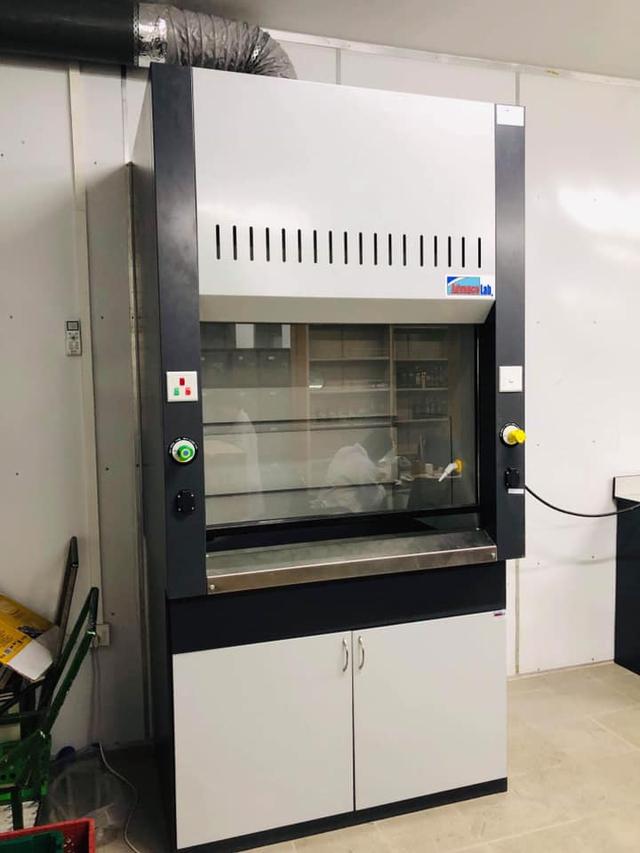

General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420

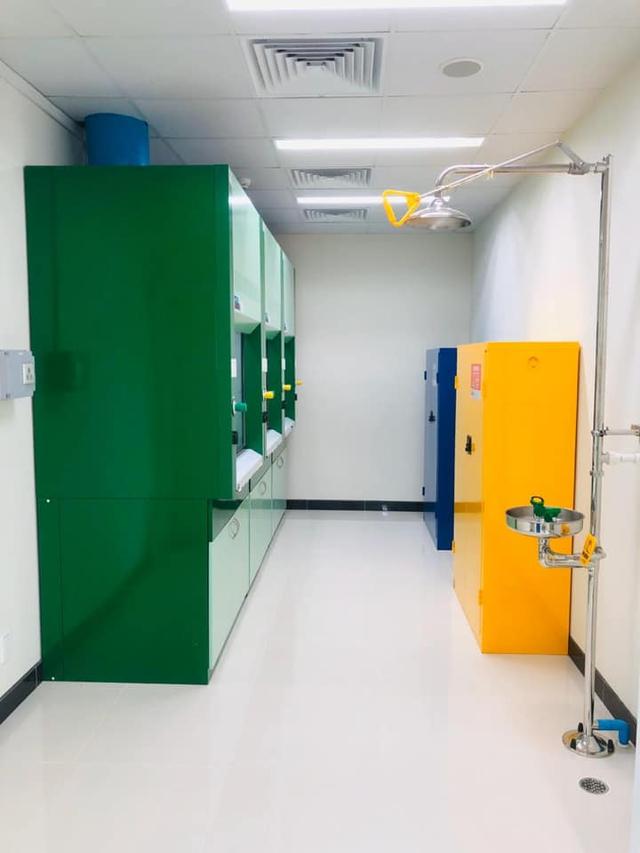

General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420
General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420

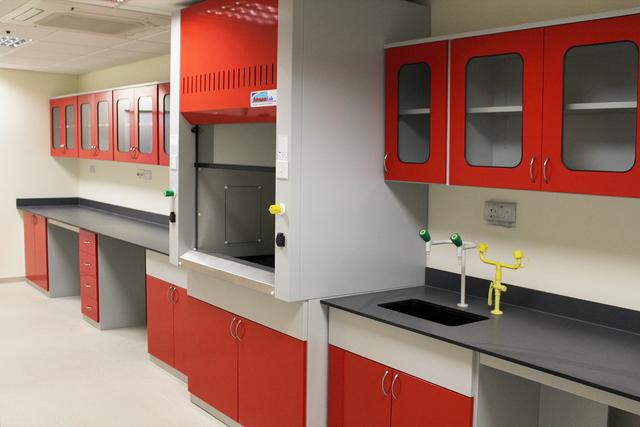

General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420

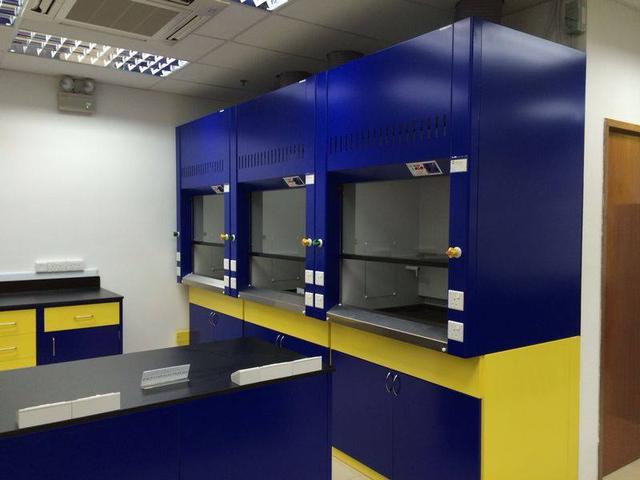

General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420

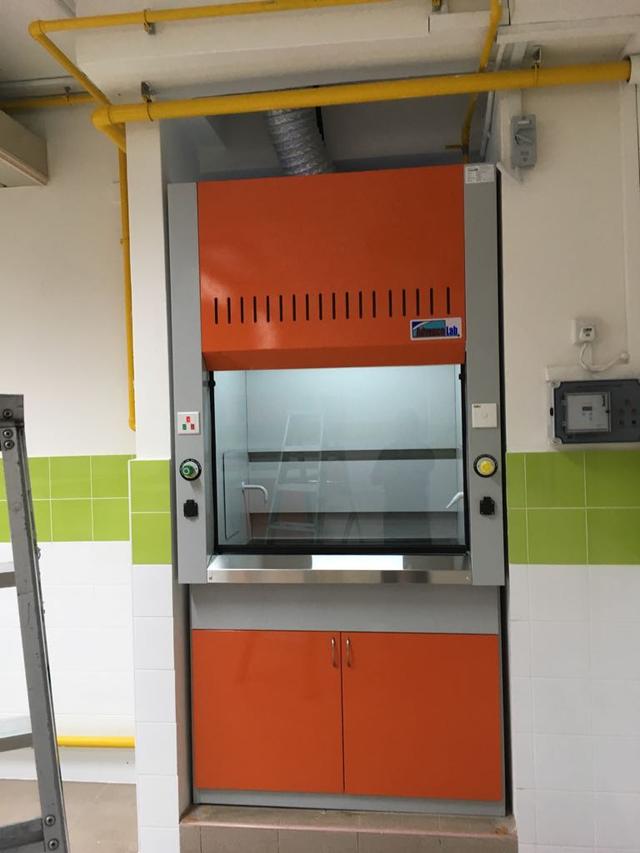

General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420

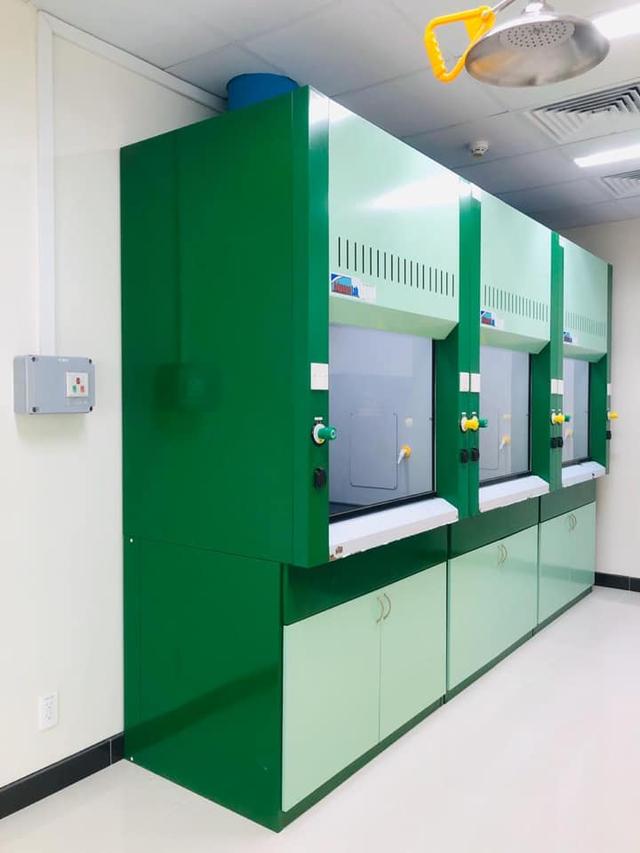

General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420

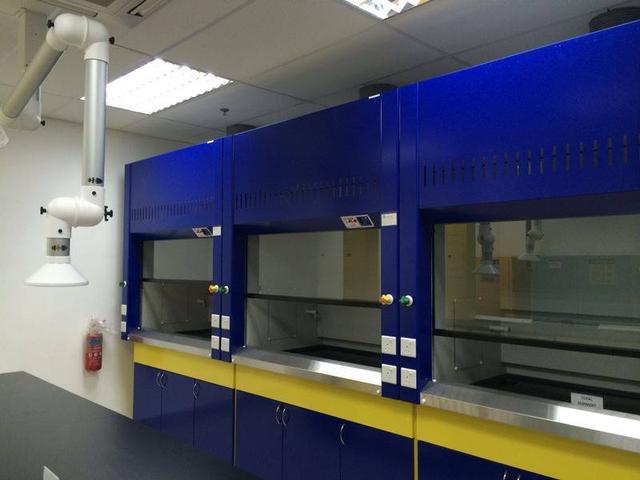

General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420
General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420
General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420
General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420
General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420
General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420
General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420
General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420
General Purpose Fume Hood, ducted, (mm) 1220 x 920 x 2420
Technical Data
  • Dimension WDH [mm] 1220 x 920 x 2420
  • Base cabinet supplied as standard
  • Industrial electrogalvanised steel construction
  • Heavy Epoxy powder coated finish
  • Phenolic resin inner liner and baffle
  • Dished Epoxy worktop, chemical & heat resistant
  • Purpose built light box external to air flow
  • Counterbalanced sash assembly for long lifespan
  • Tempered glass with Easygrip® hand rail
  • Double layered side wall with access panels
  • Stainless steel SS304 airfoil maximizing air sweep
  • Airflow compliant with ASHRAE 110-95
  • Compliant BS 7258, EN 14175 if order Controller
  • Design velocity 0.5m/s at 500mm sash height
  • Extract volume at 500mm height sash opening [CMH] 1188
  • Stand-by duct collar diameter [mm] 200
