FM160H

AdvanceLab Plastic In-line Fan, Ø160mm, 2101RPM

Unit Price
On Request
Supplier
ADVANCELAB
Country of origin
Malaysia
Unit of Measurement
EA
Delivery time
8 - 10 weeks
Validity Until
31.12.2024

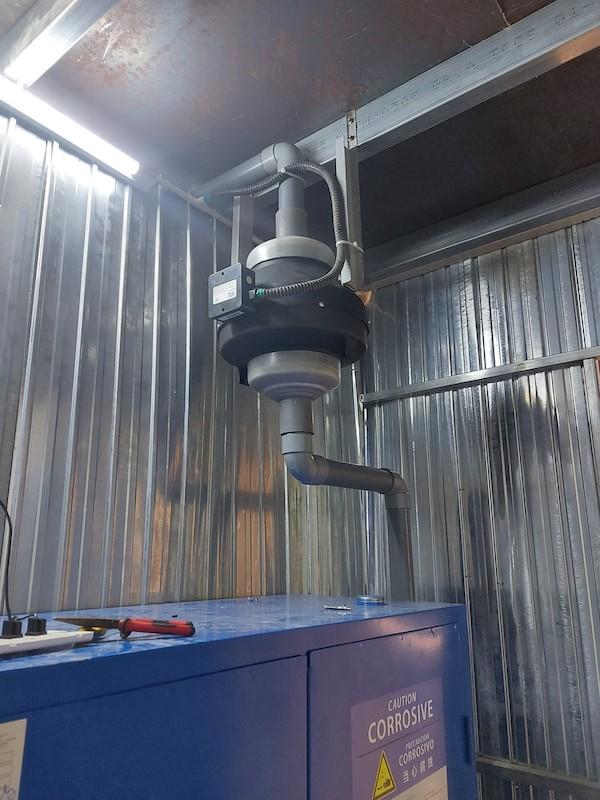

Plastic in-line fan designed to extract corrossive gases with the inlet and outlet dimension of 160mm

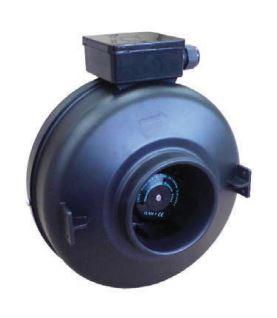

Advancelab Plastic In-line Fan, Ø160mm, 2101RPM
Technical Data
  • Dimension Dia. x W/ L [mm] 278 x 195
  • Fan moteur rotor speed [RPM] 2101
  • Inlet and outet diameter [mm] 160 | 160
  • Low sound level [dB A] 40
  • Operation ambient temperature [oC] -14 … +40
  • Easy installation and electrical connection
  • Higher airfow with medium static pressure
  • Casing and impeller are of PVC material
  • Compact in size and lighter in weight
  • Permanently lubricated ball bearings
  • Reliable and maintenance-free operation
  • Moisture resistant suitable for damp environment
  • Built-in thermal protection device
  • Electrical power 1-phase 220 - 240V 50/60 Hz
