FM250H

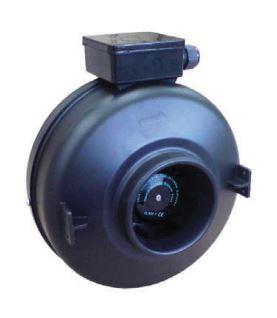

AdvanceLab Plastic In-line Fan, Ø250mm, 2415RPM
Unit Price
On Request
Supplier
ADVANCELAB
Country of origin
Malaysia
Unit of Measurement
EA
Delivery time
8 - 10 weeks
Validity Until
31.12.2024

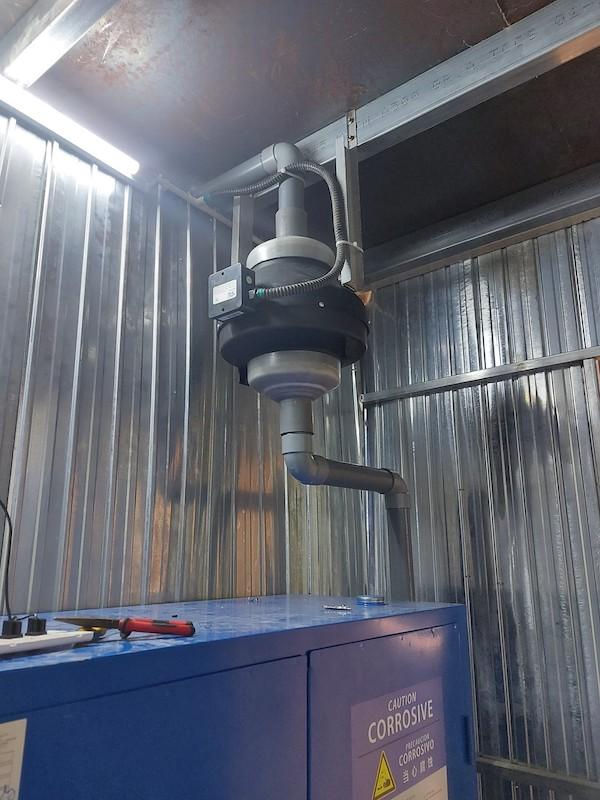

Plastic in-line fan designed to extract corrossive gases with the inlet and outlet dimension of 250mm
Technical Data
- Dimension Dia. x W/ L [mm] 333 x 210
- Fan moteur rotor speed [RPM] 2415
- Inlet and outet diameter [mm] 250 | 250
- Low sound level [dB A] 48
- Operation ambient temperature [oC] -14 … +40
- Easy installation and electrical connection
- Higher airfow with medium static pressure
- Casing and impeller are of PVC material
- Compact in size and lighter in weight
- Permanently lubricated ball bearings
- Reliable and maintenance-free operation
- Moisture resistant suitable for damp environment
- Built-in thermal protection device
- Electrical power 1-phase 220 - 240V 50/60 Hz
