005-3100B

ProfilGate® i55 dry tire cleaning system, WLH (mm) 1069 x 980 x 55, 1 x V2A-Tray, 3 x Grate

Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2024

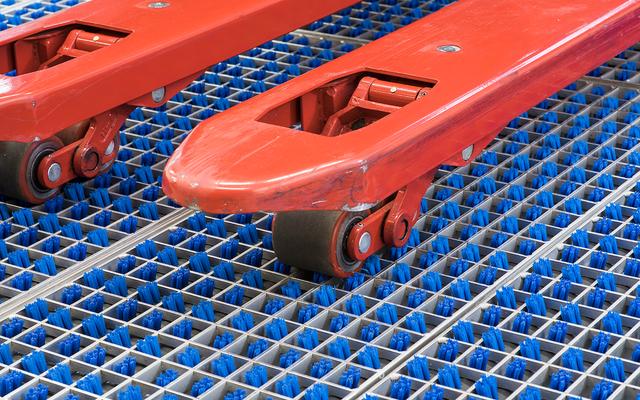

ProfilGate® i Series is the dry tire cleaning system completely made of stainless steel for bigger wheels. Ideal for driveways from outdoor due to the high dirt absorbing volume and wide-mesh grates. Especially suitable for the cleaning of wide tires, rollers and wheels with high axle loads and load-carrying capacities.
1.0 x 1.0
1.5 x 1.0

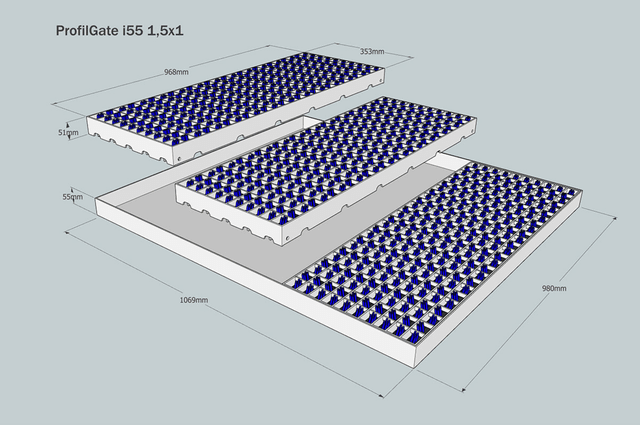

ProfilGate® i55, WLH (mm) 1069 x 980 x 55, 1 x V2A-Tray, 3 x Grate
ProfilGate® i55, WLH (mm) 1069 x 980 x 55, 1 x V2A-Tray, 3 x Grate
ProfilGate® i55, WLH (mm) 1069 x 980 x 55, 1 x V2A-Tray, 3 x Grate
ProfilGate® i55, WLH (mm) 1069 x 980 x 55, 1 x V2A-Tray, 3 x Grate
ProfilGate® i55, WLH (mm) 1069 x 980 x 55, 1 x V2A-Tray, 3 x Grate
ProfilGate® i55, WLH (mm) 1069 x 980 x 55, 1 x V2A-Tray, 3 x Grate
ProfilGate® i55, WLH (mm) 1069 x 980 x 55, 1 x V2A-Tray, 3 x Grate
Technical Data
  • Completely made of stainless steel for bigger wheel
  • Ideal for driveway from outdoor
  • Recommended number of passages per day < 100
  • Tray height [mm] 55
  • Extra dirt / water container [mm] 10
  • Optimum for tire cleaning
  • Maximum admissible vehicle weight [t] 20
  • Appropriate roller width [mm] ≥31
  • Suitable for above ground application
  • Stainless steel V2A (1.4301) grate
  • Stainless steel V2A (1.4301) tray
  • Brush strip per grate 10
  • Grates per segment 2
  • Number of segments W x L 1.5 x 1
  • Tray size W x L [mm] 1069 x 980
  • Number of grates x weight [kg] 3 x 26
