005-2350B

ProfilGate® sti55 dry tire cleaning system, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate

Unit Price

On Request

Supplier

HEUTE

Country of origin

Germany

Unit of Measurement

SET

Delivery time

10 - 12 weeks

Validity Until

31.12.2024

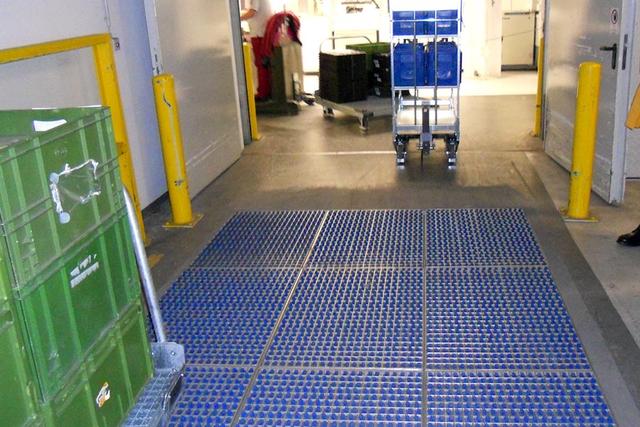

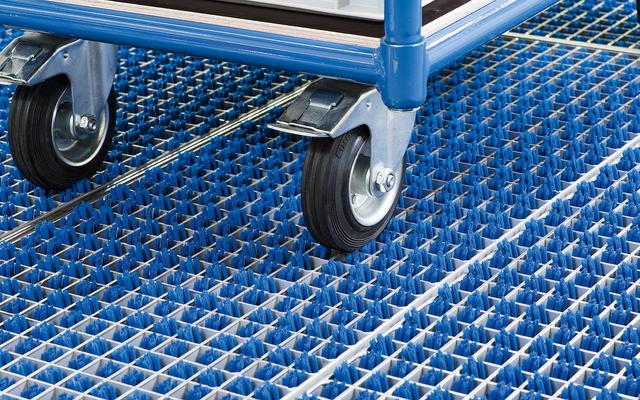

ProfilGate® sti Series is dry tire cleaning system completely made of stainless steel for small rollers. Due to the fine-mesh grates, these models are particularly suitable for carts, trolleys and AGV. Ideal for all the indoor areas owing to long-lasting, even and easily cleanable grate surfaces.

1.0 x 1.0

1.5 x 1.0

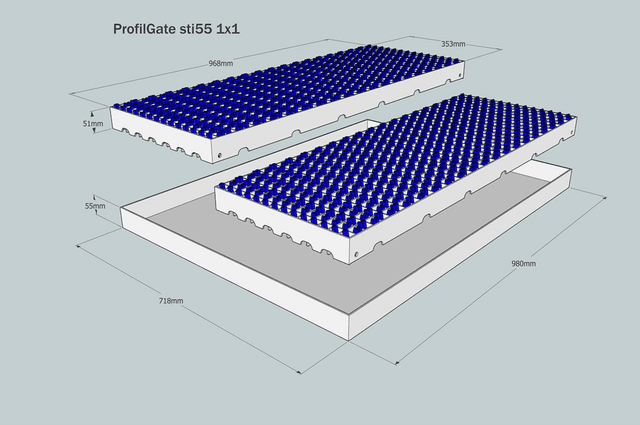

ProfilGate® sti55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate

Technical Data

Completely made of stainless steel for small rollers
Ideal for in indoor areas
Recommended number of passages per day < 100
Tray height [mm] 55

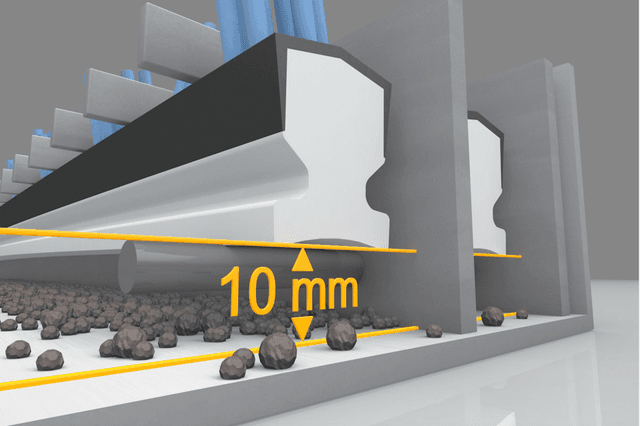

Extra dirt / water container [mm] 10
Optimum for tire cleaning
Maximum admissible vehicle weight [t] 20
Suitable for hard rollers
Appropriate roller width [mm] ≥24
Suitable for above ground application

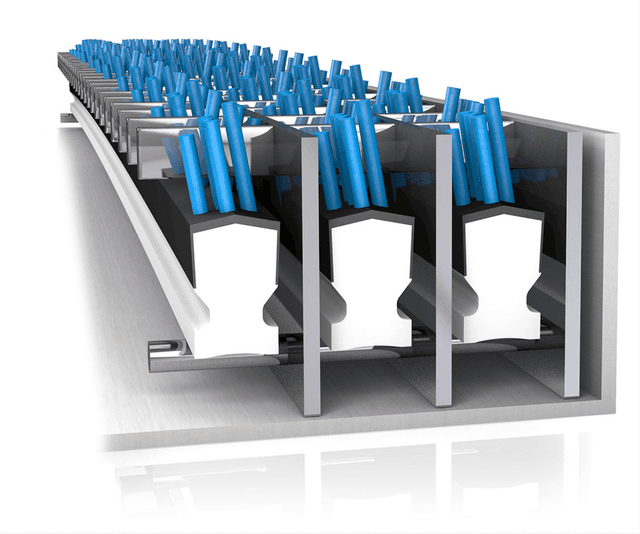

Stainless steel V2A (1.4301) grate
Stainless steel V2A (1.4301) tray
Brush strip per grate 14
Grates per segment 2
Number of segments W x L 1 x 1
Tray size W x L [mm] 718 x 980
Number of grates x weight [kg] 2 x 28
