005-2360B

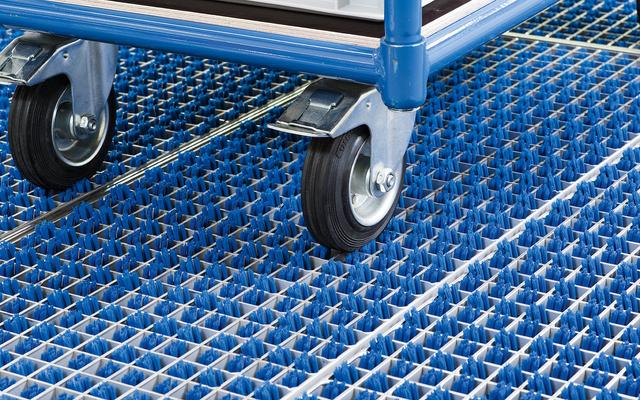

ProfilGate® sti55 dry tire cleaning system, WLH (mm) 1069 x 980 x 55, 1 x V2A-Tray, 3 x Grate
Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2024
ProfilGate® sti Series is dry tire cleaning system completely made of stainless steel for small rollers. Due to the fine-mesh grates, these models are particularly suitable for carts, trolleys and AGV. Ideal for all the indoor areas owing to long-lasting, even and easily cleanable grate surfaces.
Technical Data
- Completely made of stainless steel for small rollers
- Ideal for in indoor areas
- Recommended number of passages per day < 100
- Tray height [mm] 55
- Extra dirt / water container [mm] 10
- Optimum for tire cleaning
- Maximum admissible vehicle weight [t] 20
- Suitable for hard rollers
- Appropriate roller width [mm] ≥24
- Suitable for above ground application
- Stainless steel V2A (1.4301) grate
- Stainless steel V2A (1.4301) tray
- Brush strip per grate 14
- Grates per segment 2
- Number of segments W x L 1.5 x 1
- Tray size W x L [mm] 1069 x 980
- Number of grates x weight [kg] 3 x 28
Documents
- 005-2360B__Changing Brush.pdf
- 005-2360B__Installation above Ground.pdf
- 005-2360B__Material for Installation.pdf
- 005-2360B__Catalogue.pdf
- 005-2360B__Operation Manual.pdf
- 005-2360B__Maintenance.pdf
- 005-2360B__Installation in Ground.pdf
- 005-2360B__Storing and Shipping.pdf
- 005-2360B__Model Overview.pdf
- 005-2360B__Maintenance Plan.pdf
