005-2207GO

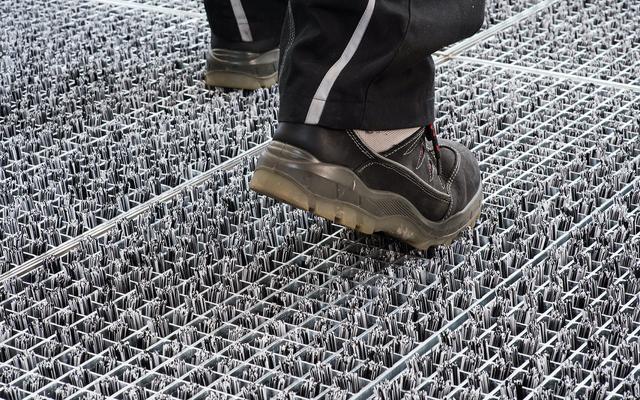

ProfilGate® st65 Go dry sole cleaning system, WLH (mm) 1069 x 980 x 65, 1 x V2A-Tray, 3 x Grate
Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2024
ProfilGate® st go Series is dry sole cleaning system for sole cleaning in indoor areas. Due to the fine-mesh structure of the grates, this series is particularly suitable for carts and trolleys as well. Ideal for all indoor areas due to smooth-run, even grate surface, also with narrow, hard rollers.
Technical Data
- For dry sole cleaning in indoor areas
- For highly frequented entrance zones
- Tray height [mm] 65
- Extra dirt / water container [mm] 20
- Optimum for sole cleaning
- Maximum admissible vehicle weight [t] 30
- Suitable for hard rollers
- Appropriate roller width [mm] ≥24
- Suitable for above ground application
- Steel (S 235 JR) grate
- Stainless steel V2A (1.4301) tray
- Brush strip per grate 14
- Grates per segment 2
- Number of segments W x L 1.5 x 1
- Tray size W x L [mm] 1069 x 980
- Number of grates x weight [kg] 3 x 31
Documents
- 005-2207GO__Changing Brush.pdf
- 005-2207GO__Storing and Shipping.pdf
- 005-2207GO__Operation Manual.pdf
- 005-2207GO__Catalogue.pdf
- 005-2207GO__Model Overview.pdf
- 005-2207GO__Material for Installation.pdf
- 005-2207GO__Installation in Ground.pdf
- 005-2207GO__Maintenance Plan.pdf
- 005-2207GO__Installation above Ground.pdf
- 005-2207GO__Maintenance.pdf
