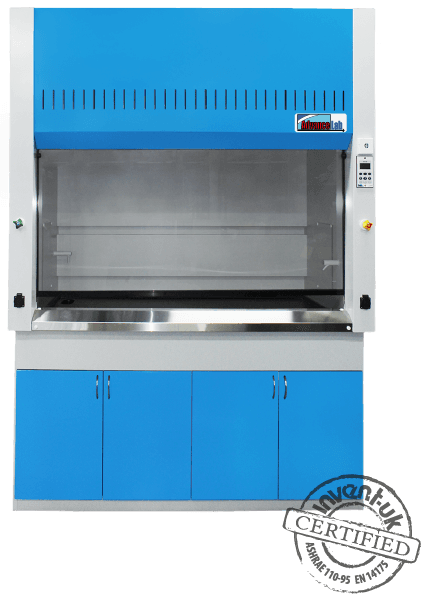

Dimension WDH [mm] 1520 x 920 x 2420
Base cabinet supplied as standard
Industrial electrogalvanised steel construction
Heavy Epoxy powder coated finish
Phenolic resin inner liner and baffle
Dished Epoxy worktop, chemical & heat resistant
Purpose built light box external to air flow
Counterbalanced sash assembly for long lifespan
Tempered glass with Easygrip® hand rail
Double layered side wall with access panels
Stainless steel SS304 airfoil maximizing air sweep
Airflow compliant with ASHRAE 110-95
Compliant BS 7258, EN 14175 if order Controller
Design velocity 0.5m/s at 500mm sash height
Extract volume at 500mm height sash opening [CMH] 1512
Stand-by duct collar diameter [mm] 250
