AD06FH-SCH

AdvanceLab School Demo Fume Hood, ducted, (mm) 1820 x 1000 x 2420

Unit Price

On Request

Supplier

ADVANCELAB

Country of origin

Malaysia

Unit of Measurement

LOT

Delivery time

8 - 10 weeks

Validity Until

31.12.2024

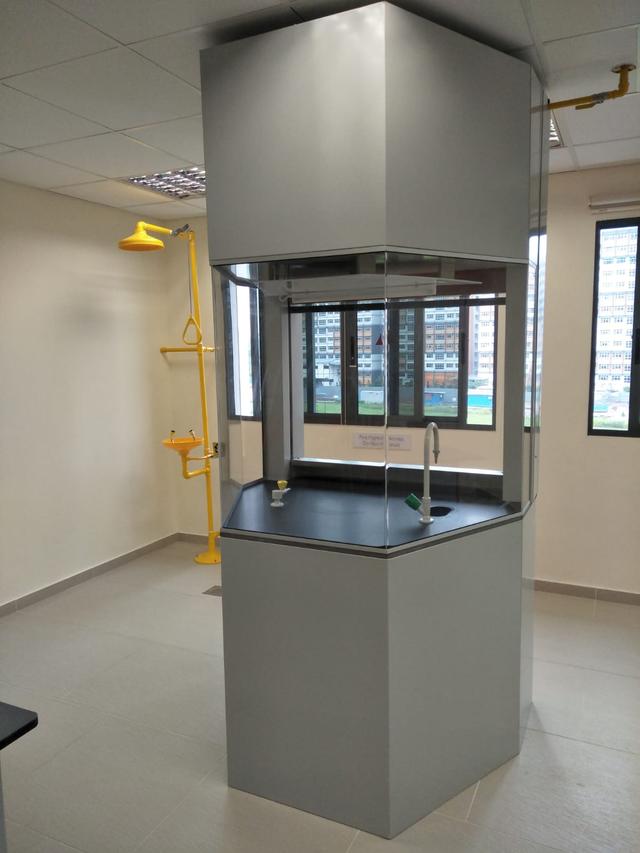

AdvanceLab School Demo Fume Hood is for teaching purpose. The transparent wall enable students to see the experiments being carried out inside. Fumehood when sized with an appropriate chemical resistant centrifugal exhaust fan will protect persons in the room from exposure to harmful fumes.

Advancelab School Demo Fume Hood, ducted, (mm) 1820 x 1000 x 2420

Advancelab School Demo Fume Hood, ducted, (mm) 1820 x 1000 x 2420

Advancelab School Demo Fume Hood, ducted, (mm) 1820 x 1000 x 2420

Advancelab School Demo Fume Hood, ducted, (mm) 1820 x 1000 x 2420

Technical Data

Dimension WDH [mm] 1820 x 1000 x 2420
Base cabinet supplied as standard
Industrial electrogalvanised steel construction
Heavy Epoxy powder coated finish
Dished Epoxy worktop, chemical & heat resistant
Purpose built light box external to air flow
Electrical light ballast for flicker free usage
Clear side panels for better visibility
Stainless steel SS304 airfoil maximizing air sweep
Airflow compliant with ASHRAE 110-95
Compliant BS 7258, EN 14175 if order Controller
Design velocity 0.5m/s at 500mm sash height
