AD06FH-PP-PCH

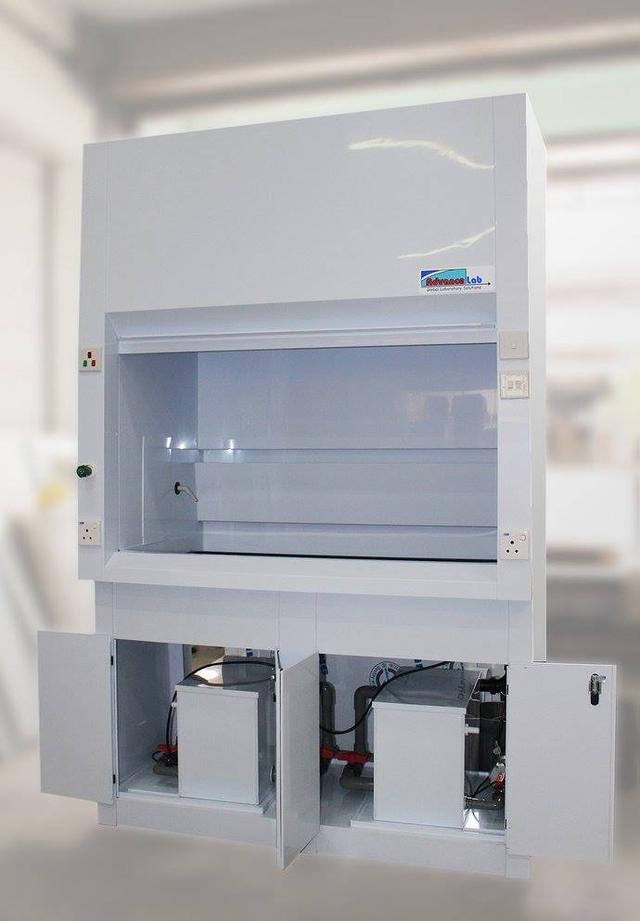

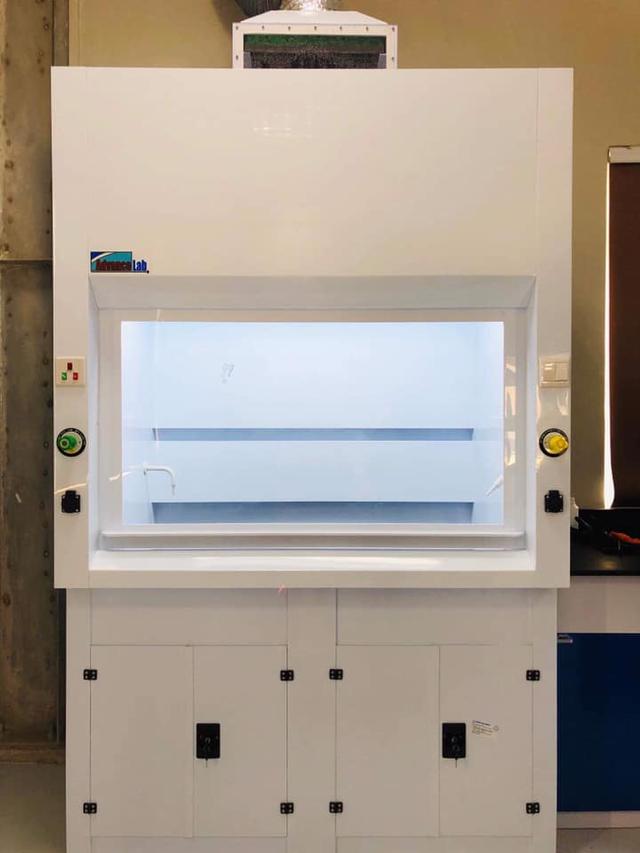

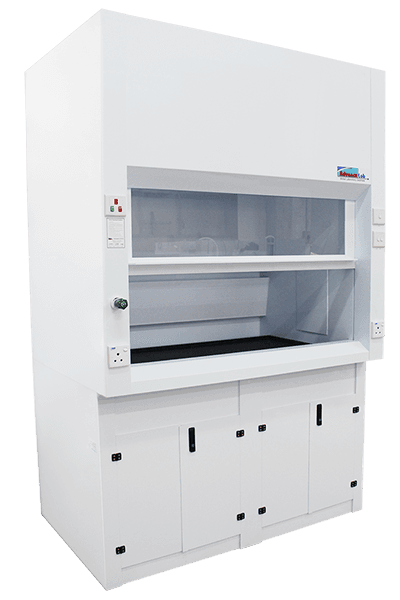

AdvanceLab Perchloric Acid Fume Hood, ducted, (mm) 1820 x 920 x 2420

Unit Price

On Request

Supplier

ADVANCELAB

Country of origin

Malaysia

Unit of Measurement

LOT

Delivery time

8 - 10 weeks

Validity Until

31.12.2024

AdvanceLab Perchloric Acid Fume Hood is designed for routine handling of hot perchloric acid. Fumehood when sized with an appropriate chemical resistant centrifugal exhaust fan will protect laboratory staff from exposure to harmful fumes.

Technical Data

Dimension WDH [mm] 1820 x 920 x 2420
Base cabinet supplied as standard
Fully welded Polypropylene construction
Polypropylene inner liner and baffle
Dished Epoxy worktop, chemical & heat resistant
Purpose built light box external to air flow
Electrical light ballast for flicker free usage
Counterbalanced sash assembly for long lifespan
Tempered glass with Easygrip® hand rail
Double layered side wall with access panels
Polypropylene airfoil maximizing air sweep
Built-in spray bar to prevent build-up of perchlorate salts
Chemical resistant pump by IWAKI Japan
Removable holding tank for cleaning
Skid below tank for spills
Airflow compliant with ASHRAE 110-95
Compliant BS 7258, EN 14175 if order Controller
Design velocity 0.5m/s at 500mm sash height
Extract volume at 500mm height sash opening [CMH] 1836
Stand-by duct collar diameter [mm] 300
